Product Description

About

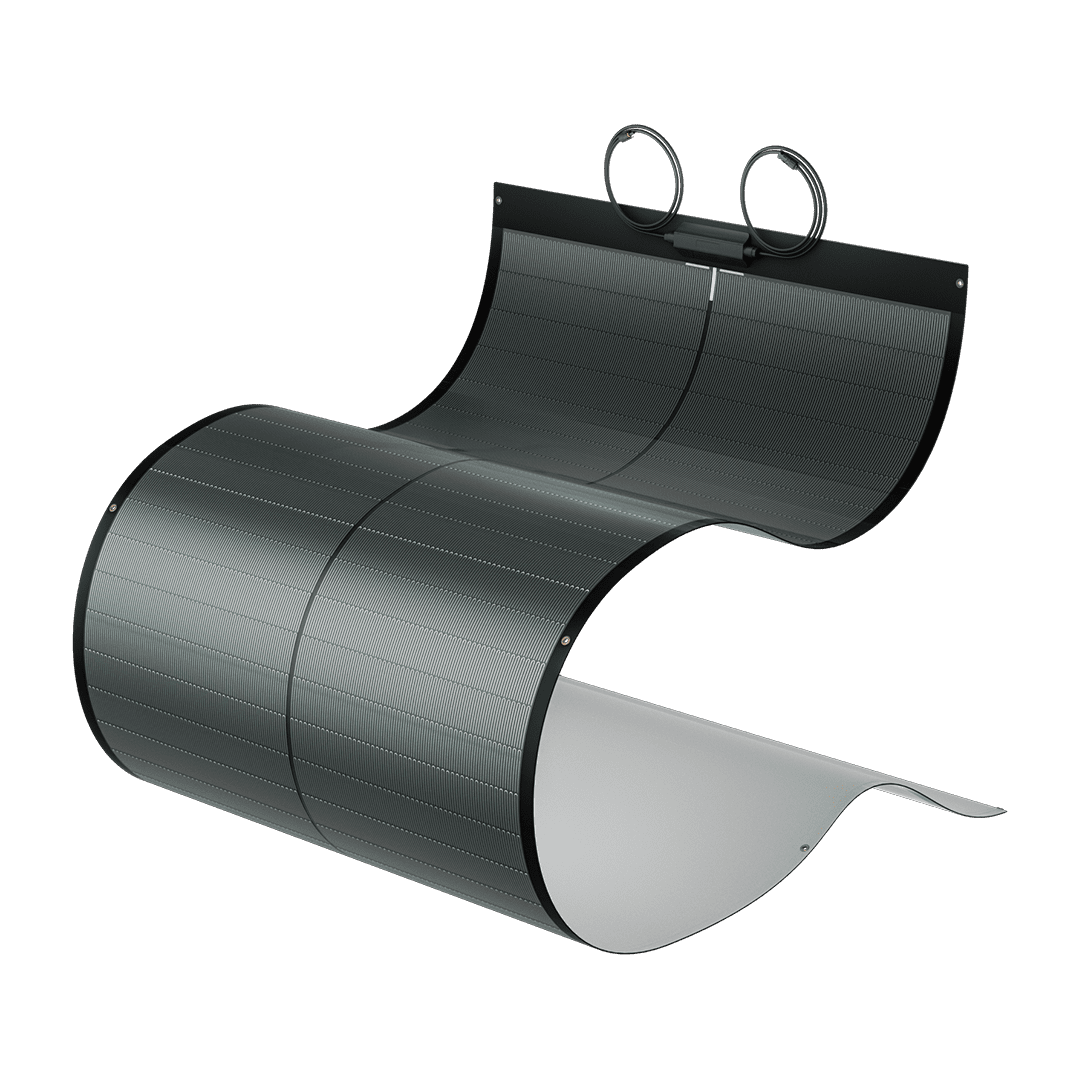

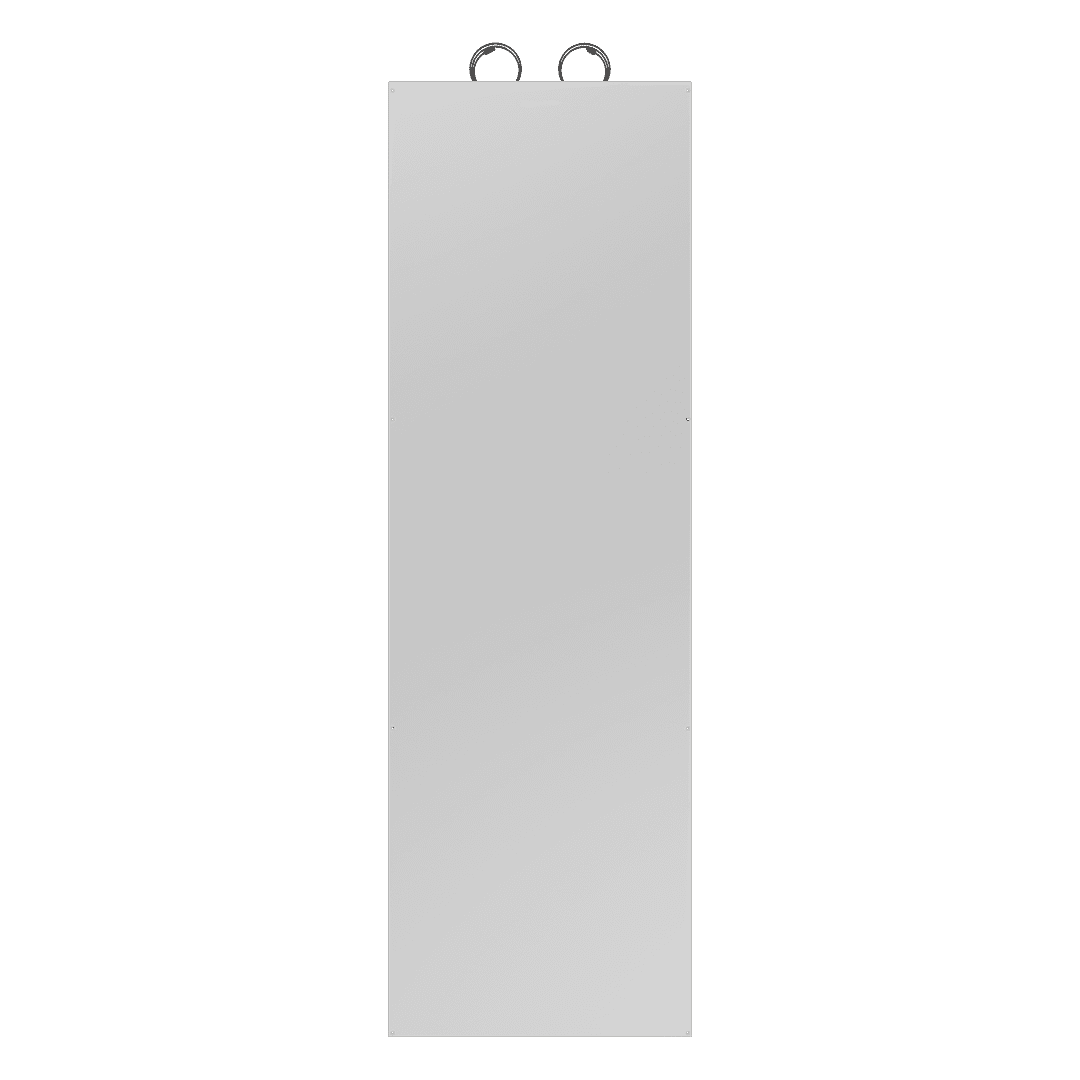

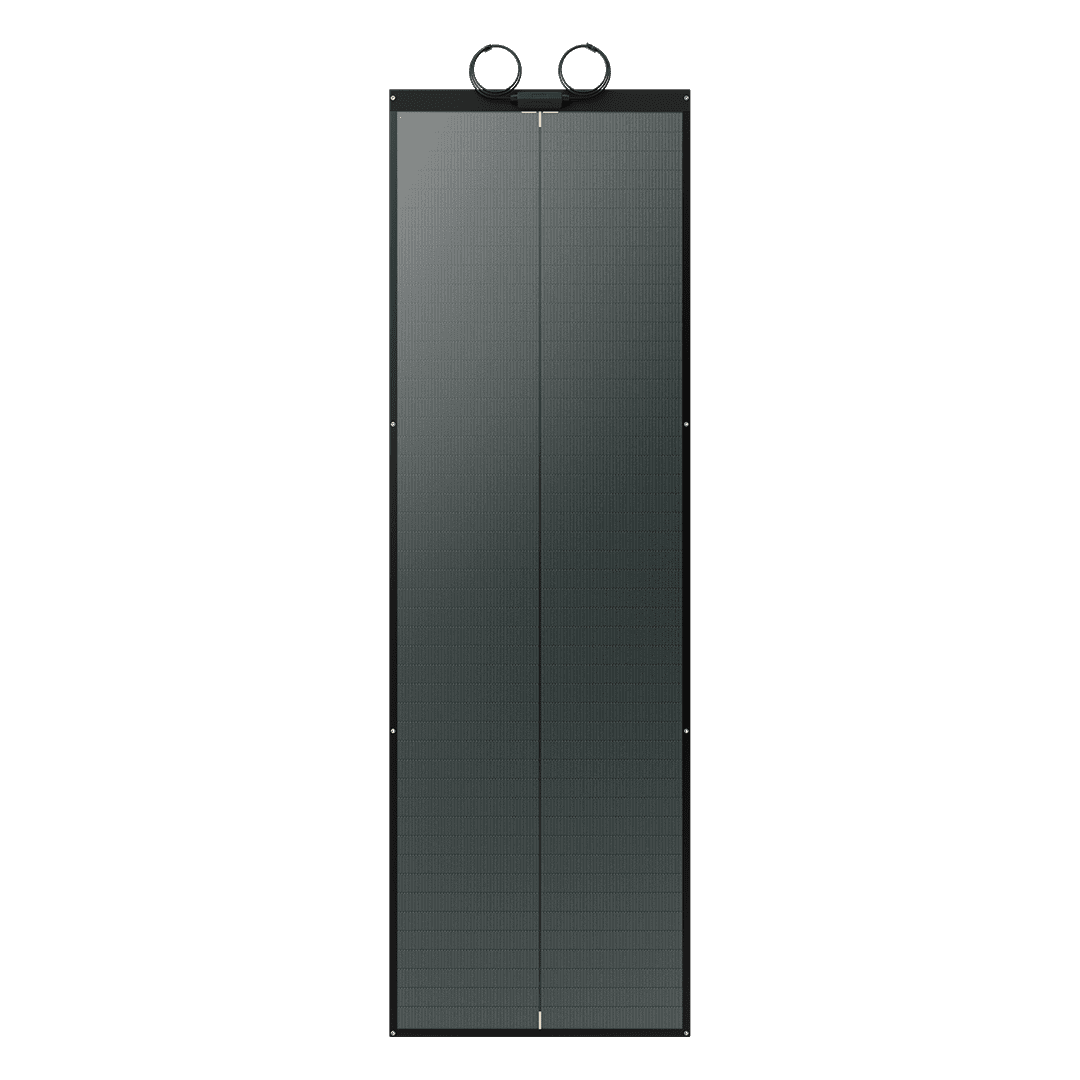

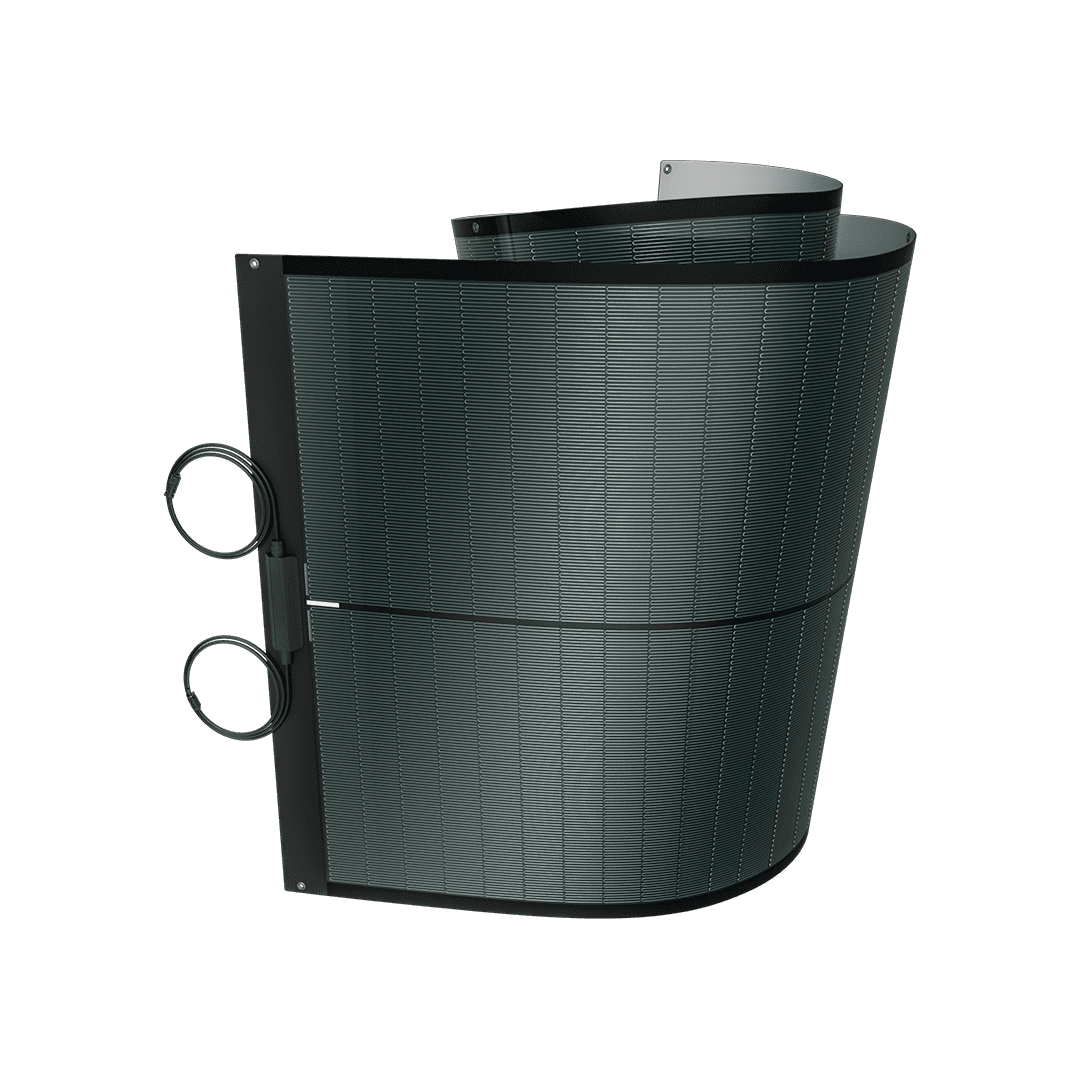

The BougeRV Yuma 800W CIGS Thin-film Flexible Solar Panel with Holes consists of four 200W CIGS (Copper Indium Gallium Selenide) thin-film flexible panels, a technology built for improved durability, light sensitivity, and lifespan compared to conventional panels.

Thanks to a higher absorption coefficient and an ultra-thin profile, the panels are flexible and suited to uneven surfaces such as RV or boat roofs and other curved mounting locations. The latest version features a borehole (pre-punched hole) design that allows the panel to be securely fastened in place.

Features

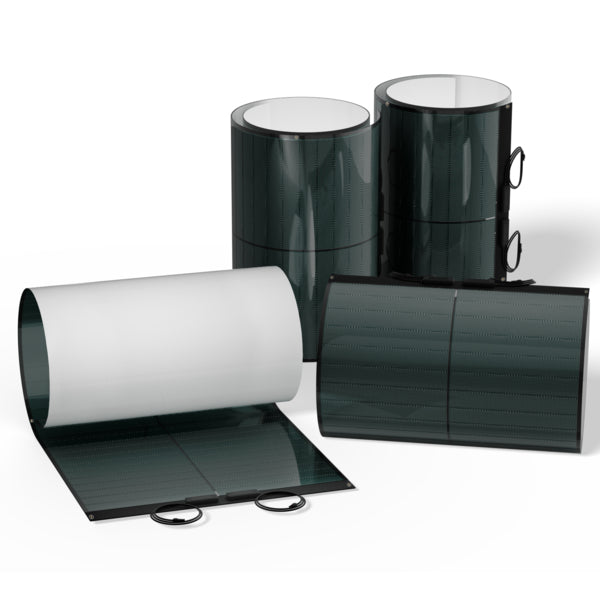

The panels are highly flexible and can be rolled up for compact storage and transportation, and can be bent and adjusted to fit curved surfaces without cracking. They are lightweight and thin, so they don't require additional mounting or aluminum frames, which improves aerodynamics and the aesthetics of the solar setup. The CIGS solar cells used are a flexible class of cell that will not crack, unlike the virtually inflexible and crack-prone monocrystalline cells used in conventional panels.

The panels are designed with an anti-shading profile, proven to perform better than conventional monocrystalline panels in shaded conditions and producing up to 38% more power over the course of an 8-hour cloudy day. They are built to withstand impacts that may occur during installation and transportation, and will still function even if partially damaged. The pre-punched borehole design allows the panel to be securely fastened wherever needed without concerns about instability.

Specifications

Per 200W Panel (SKU ISE154)

  • Maximum Power (Pmax): 200±5% W
  • Solar Cell Efficiency: 17%
  • Max. Power Voltage (Vmp): 24±5% V
  • Max. Power Current (Imp): 8.52±5% A
  • Open Circuit Voltage (Voc): 30.4±5% V
  • Short Circuit Current (Isc): 9.48±5% A
  • Max. System Voltage: 1000V DC
  • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
  • Series Fuse Rating: 10A
  • Temperature Coefficient Pmax: -0.38%/°C
  • Temperature Coefficient Voc: -0.28%/°C
  • Temperature Coefficient Isc: -0.008%/°C
  • Dimensions: 82.8 x 27.1 x 0.06 inches
  • Weight: 5.95 lbs

Warranty

10 Years (Performance Warranty: 25 years)
