Product Description

About

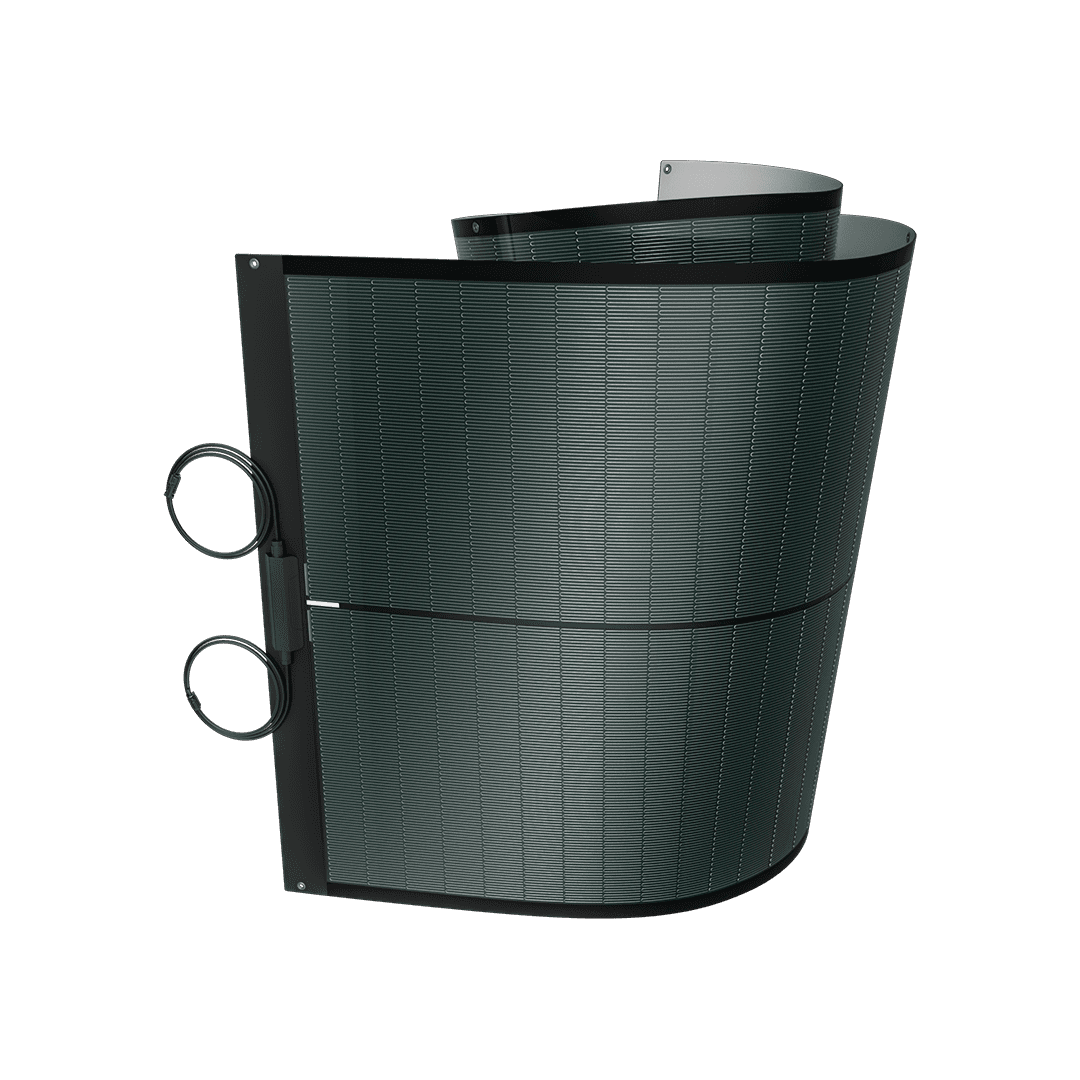

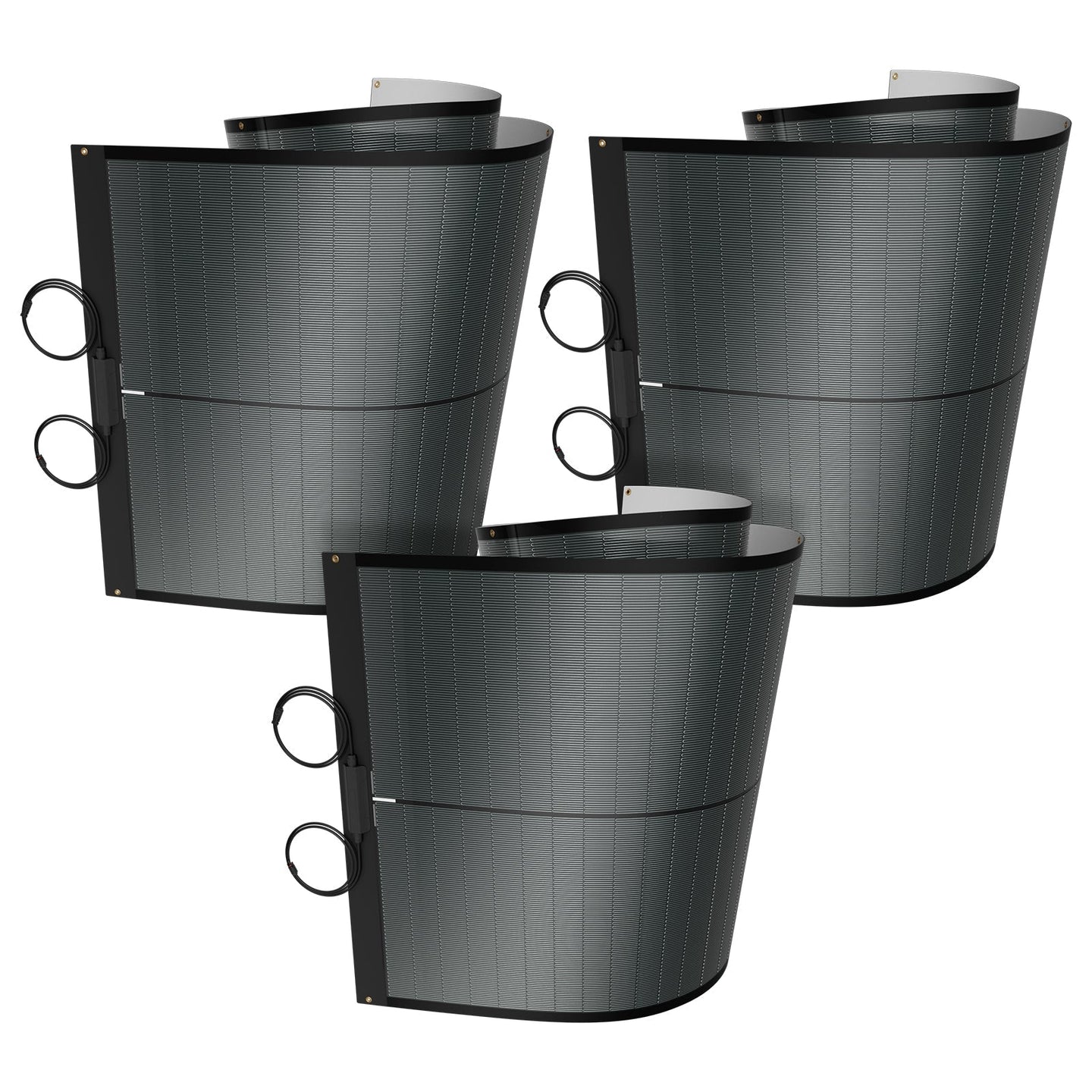

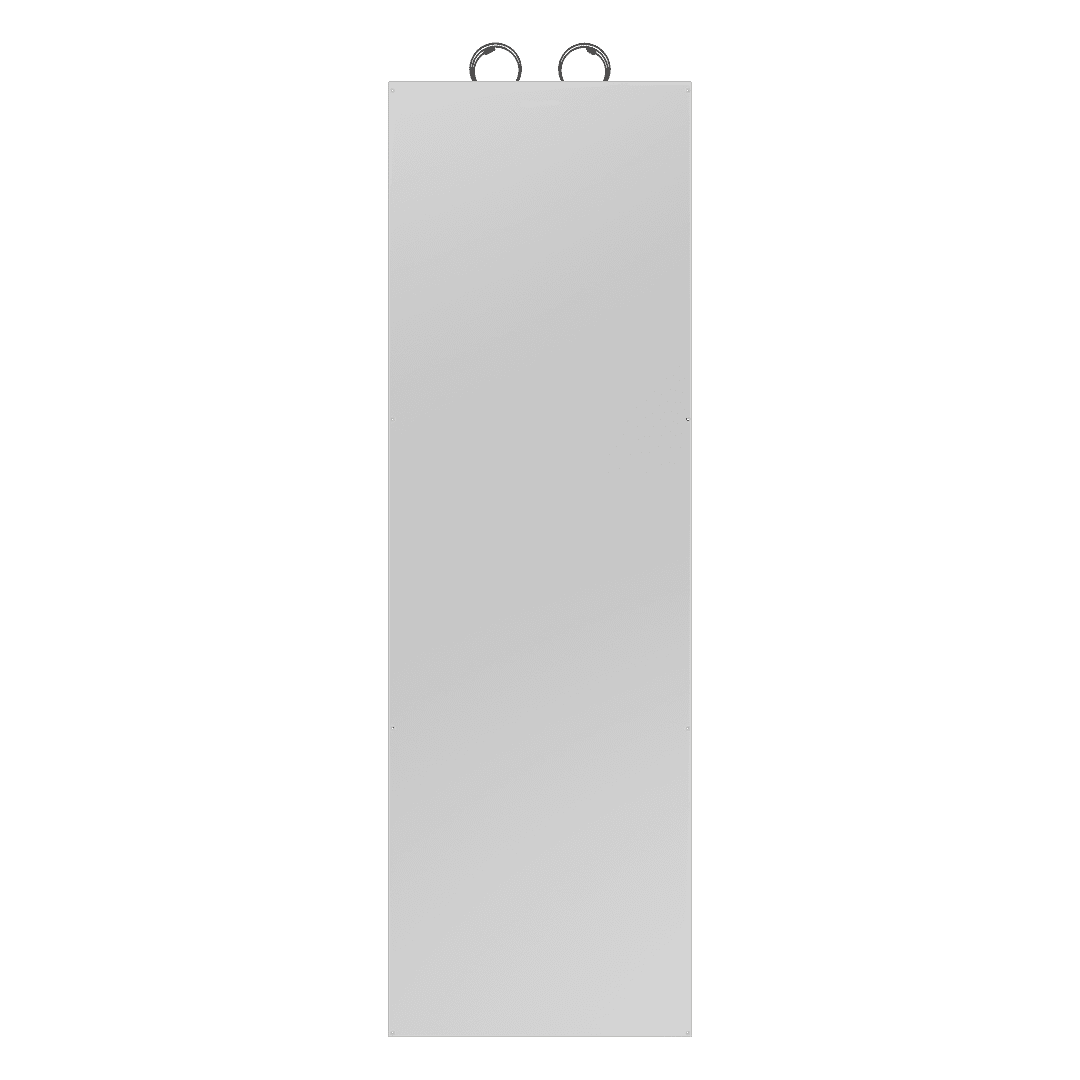

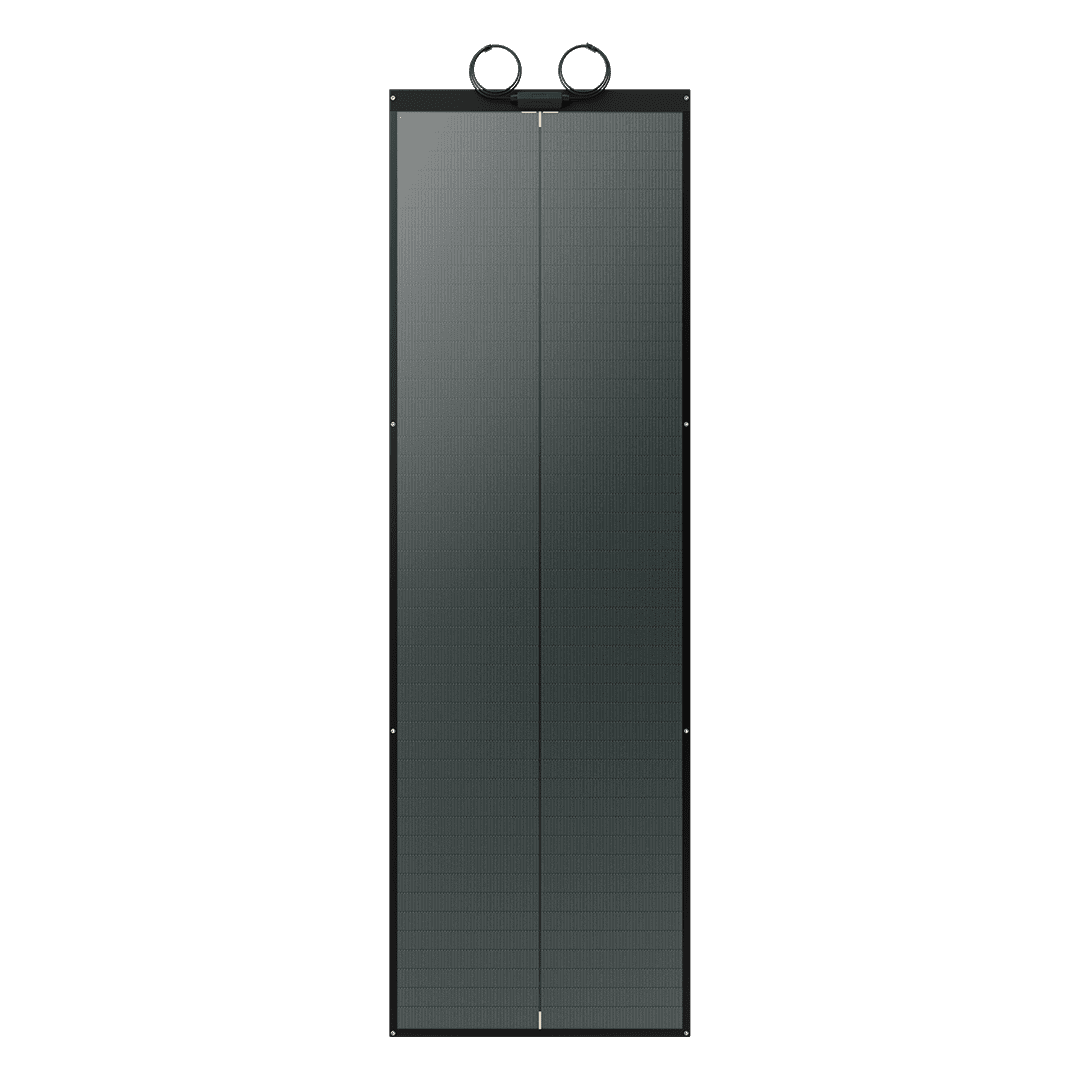

BougeRV's Yuma 200 Watt Flexible Solar Panel with Holes uses cutting-edge CIGS solar panels uniquely designed to flex and adjust to any surface, while utilizing Copper Indium Gallium Selenide (CIGS) technology to enhance durability, light sensitivity, and lifespan. The panels can be easily installed or used as a portable energy solution.

CIGS is a thin-film solar cell technology. With improved durability, light sensitivity, and lifetime, the Yuma 200 Watt Flexible Solar Panel with Holes is intended for anyone looking to harness the power of the sun. Thanks to its higher absorption coefficient and ultra-thin profile, it is flexible and can be used on uneven surfaces like RV and boat roofs, or at a campsite.

Features

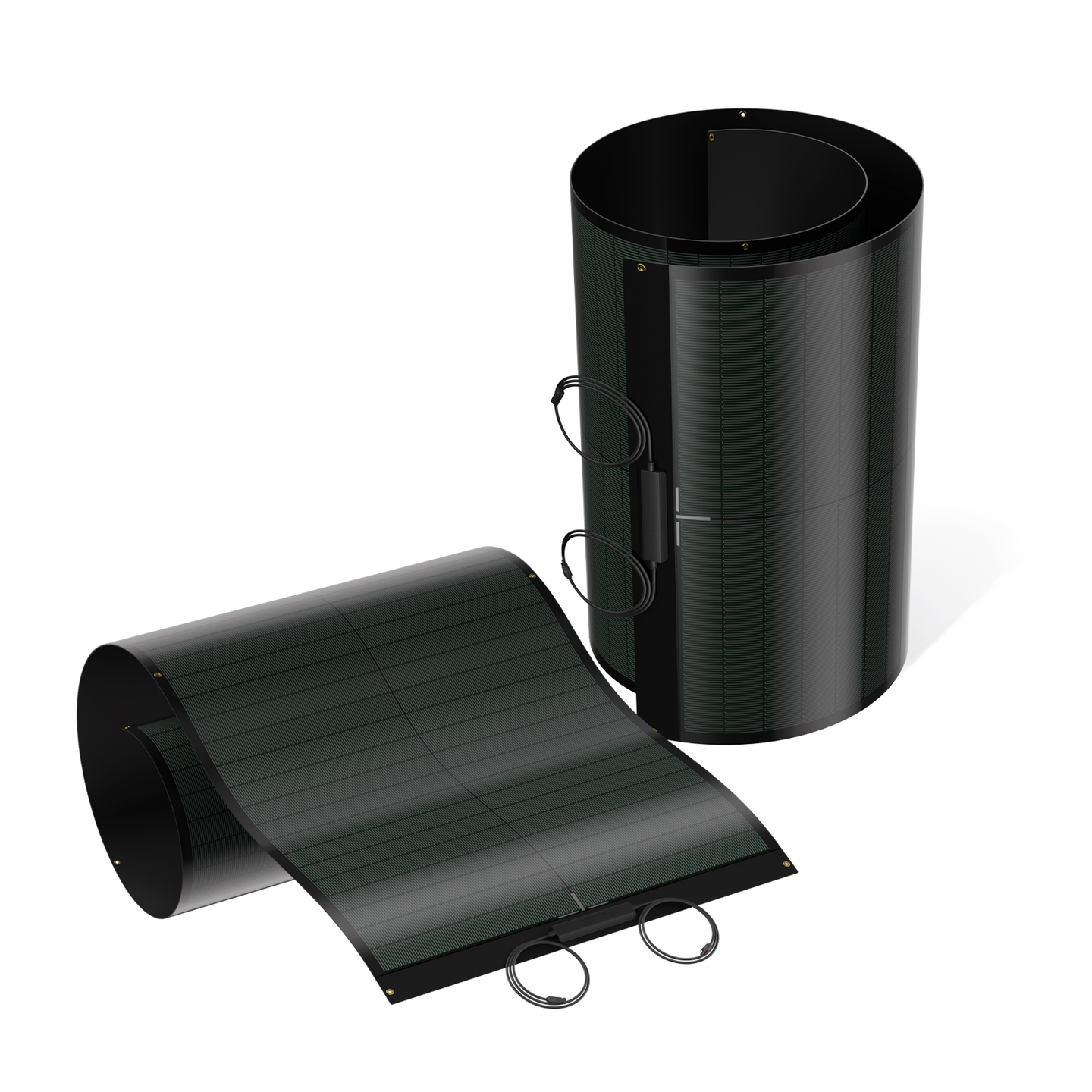

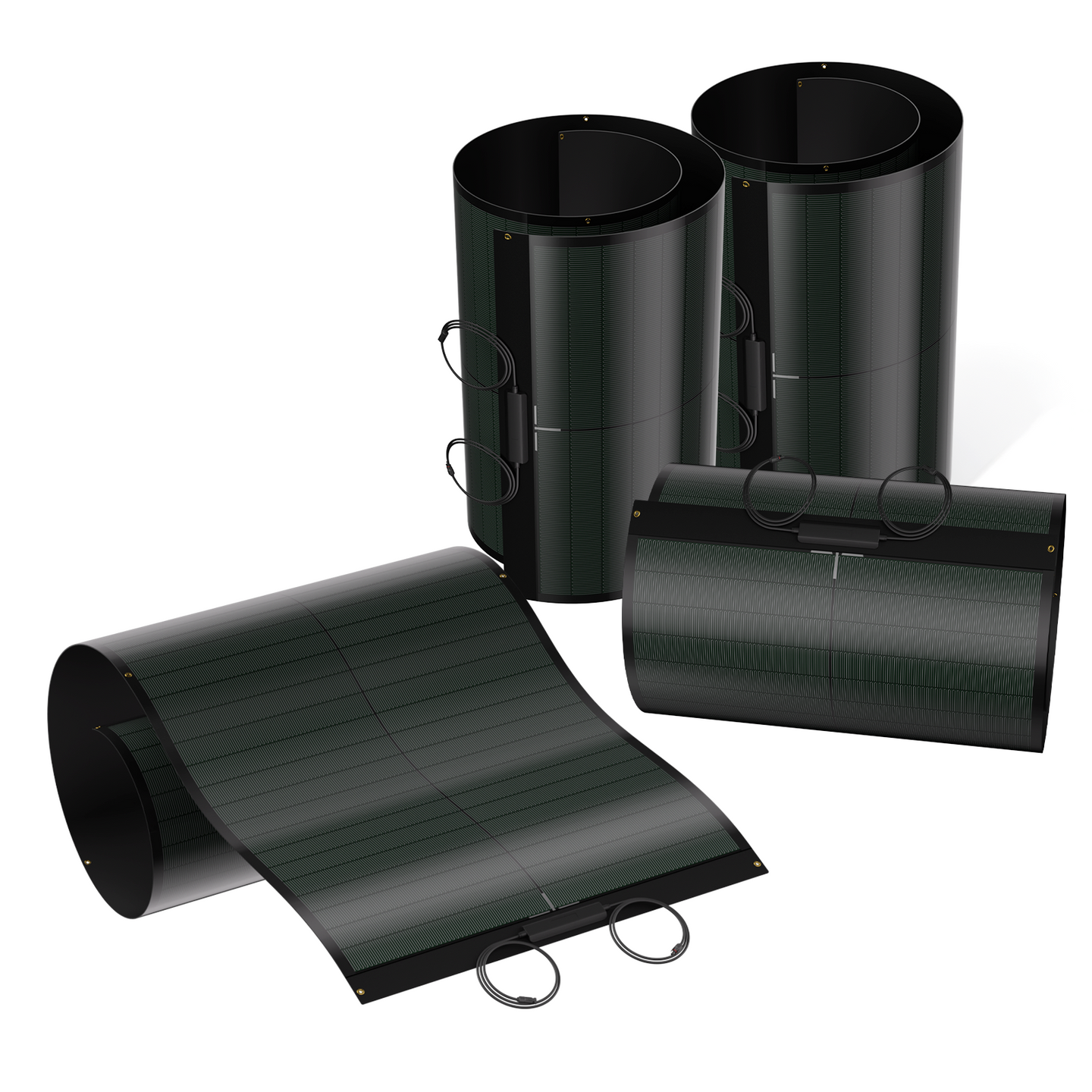

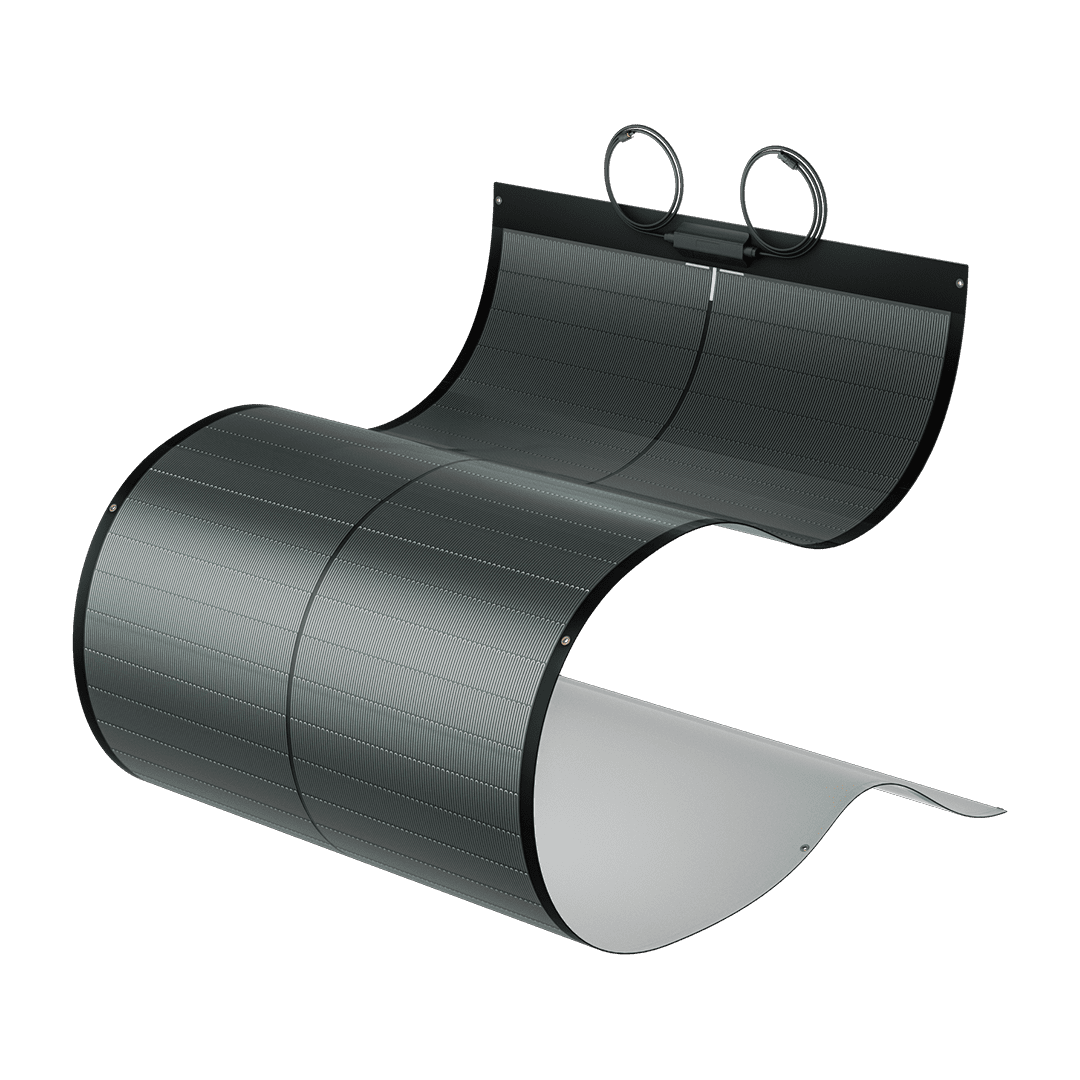

The panel is flexible and can be rolled up for compact storage and transportation, and can be bent and adjusted to fit curved surfaces without cracking. It is lightweight and thin, so it doesn't require additional mounting or aluminum frames, improving aerodynamics and the aesthetics of a solar-powered setup. It uses CIGS solar cells, described as the most flexible class at 360°, which the manufacturer states will not crack, unlike monocrystalline solar cells, which are more prone to cracking. The panel is described as performing better than conventional monocrystalline panels in shaded conditions, producing 38% more power over the course of an 8-hour cloudy day. It is durable and can withstand impacts that may occur during installation and transportation, and can still function even if partially damaged. It features a borehole design that allows it to be fastened securely without concerns about instability.

Specifications

  • SKU: ISE154
  • Product Type: Solar Panel
  • Maximum Power (Pmax): 200±5% W
  • Solar Cells Efficiency: 17%
  • Max. Power Voltage Vmp (V): 24±5% V
  • Max. Power Current Imp (A): 8.52±5% A
  • Open Circuit Voltage Voc (V): 30.4±5% V
  • Short Circuit Current (Isc): 9.48±5% A
  • Max. System Voltage: 1000V DC
  • Operating Temperature Limits: -40℉ ~ +185℉
  • Series Fuse Rating: 10A
  • Temperature Coefficient Pmax: -0.38%/℃
  • Temperature Coefficient Voc: -0.28%/℃
  • Temperature Coefficient Isc: -0.008%/℃
  • Dimensions: 82.8 x 27.1 x 0.06 inches
  • Weight: 5.95 lbs

Warranty

Warranty Description: 10 Years. Performance Warranty: 25 years.
