Product Description

About

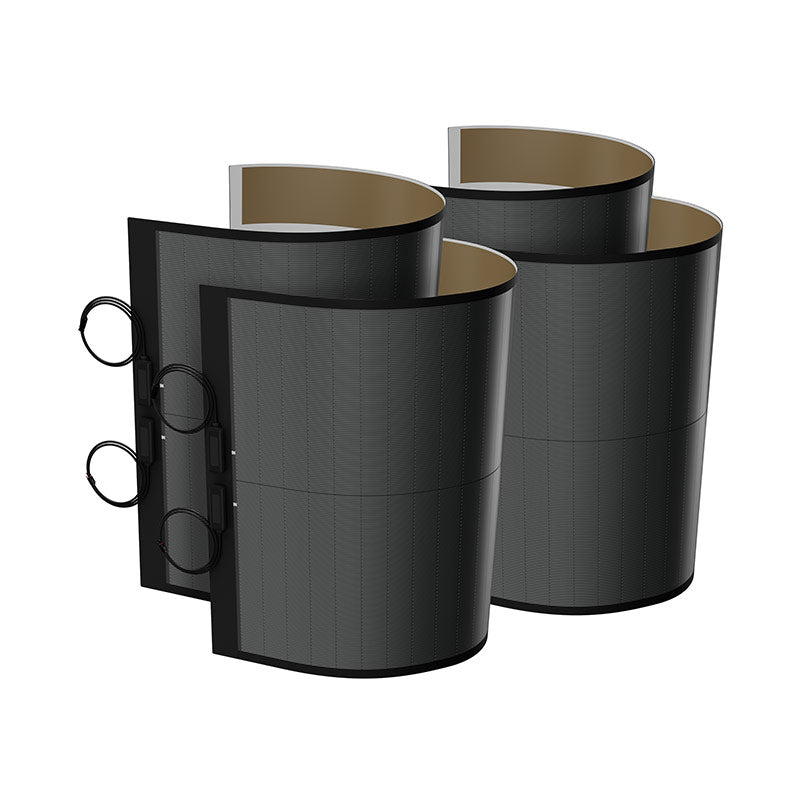

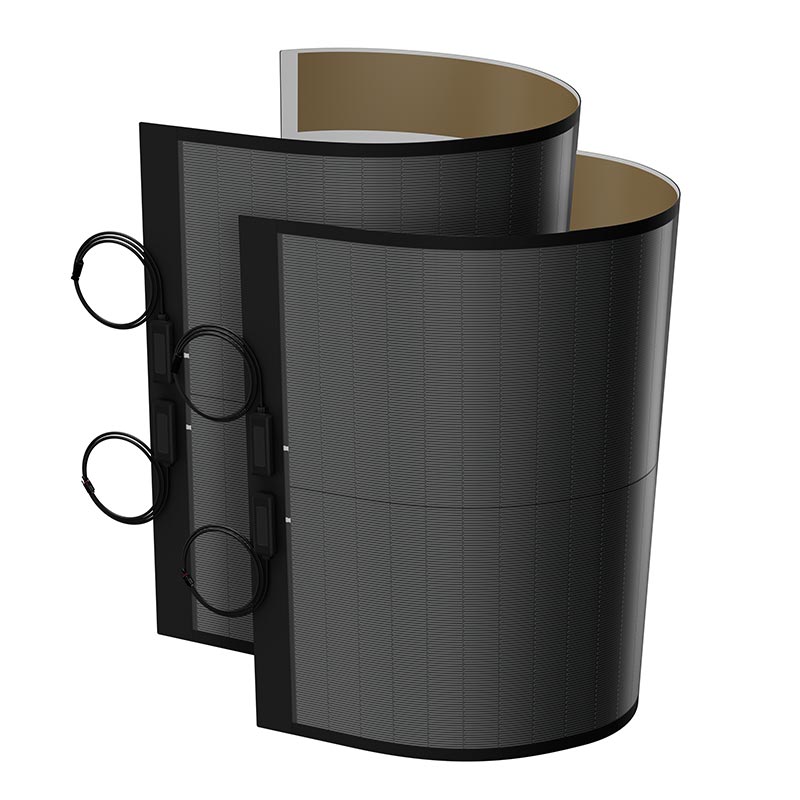

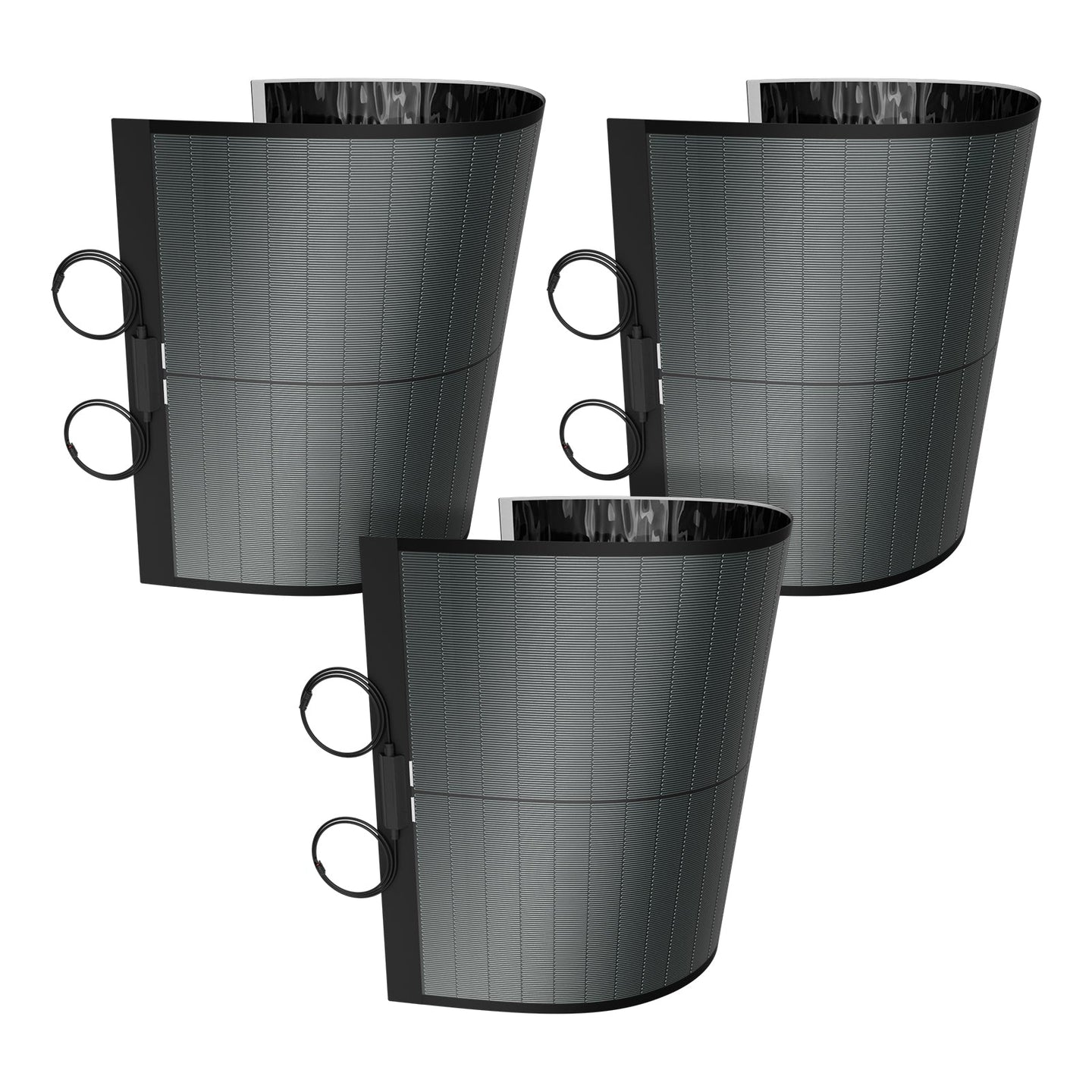

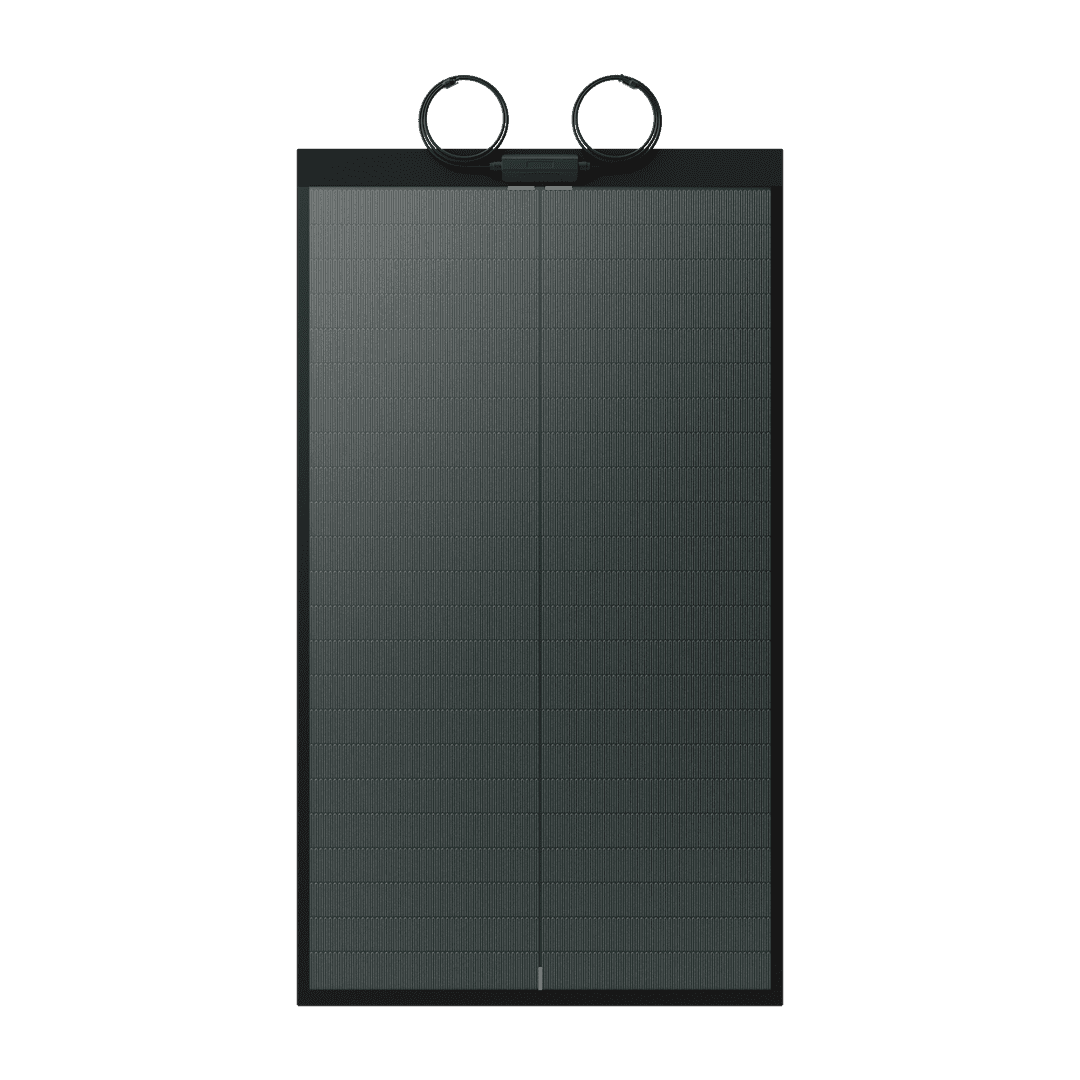

The BougeRV Yuma 100W CIGS Thin-film Flexible Solar Panel with Tape (Compact Version) uses Copper Indium Gallium Selenide (CIGS) thin-film solar cell technology, designed to improve durability, light sensitivity, and lifetime versus conventional panels. It is uniquely designed to flex and adjust to any surface.

Thanks to its higher absorption coefficient and ultra-thin profile, the panel is flexible and can be used on uneven surfaces like RV and boat roofs, or at a campsite. It can be installed on a surface or used as a portable energy solution.

Features

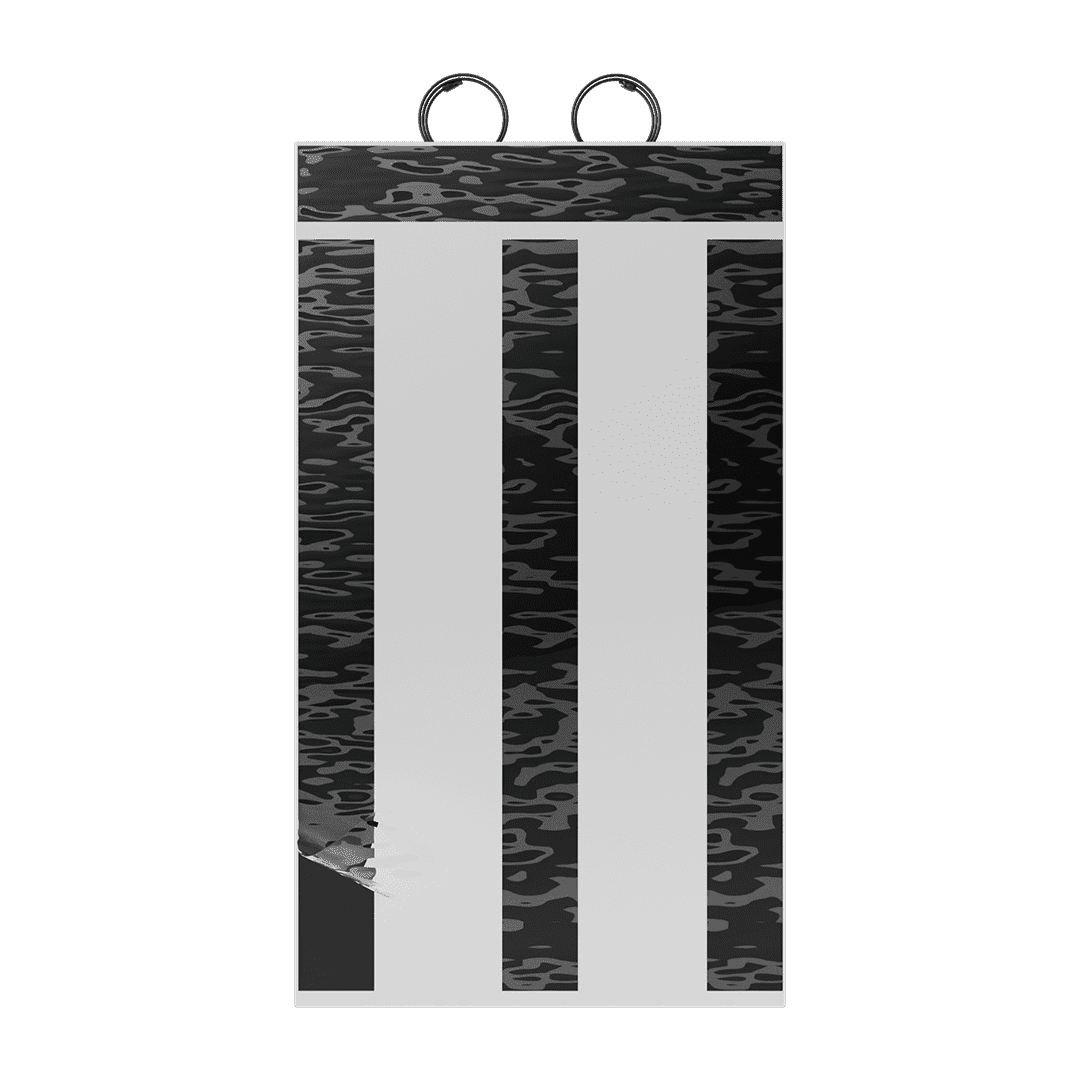

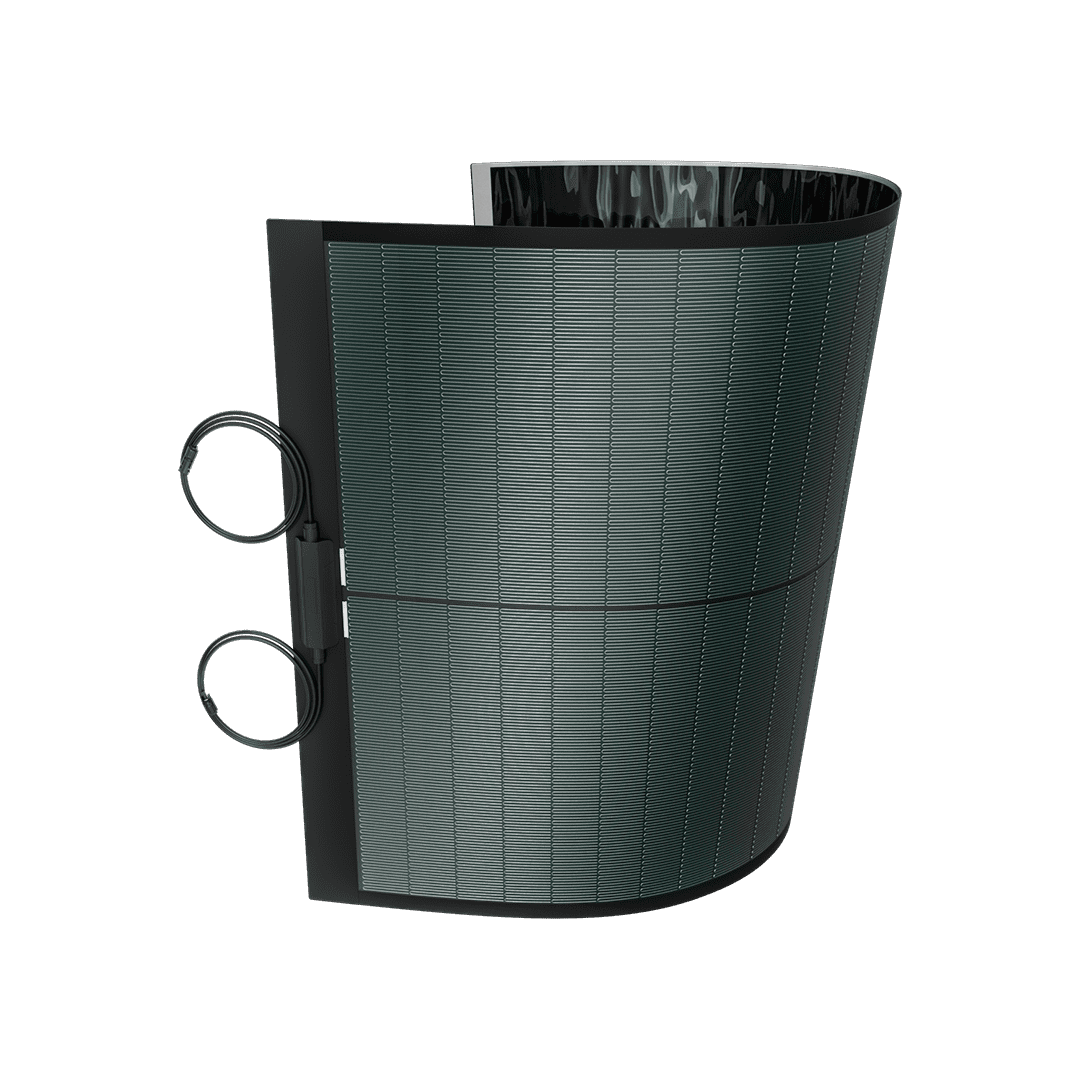

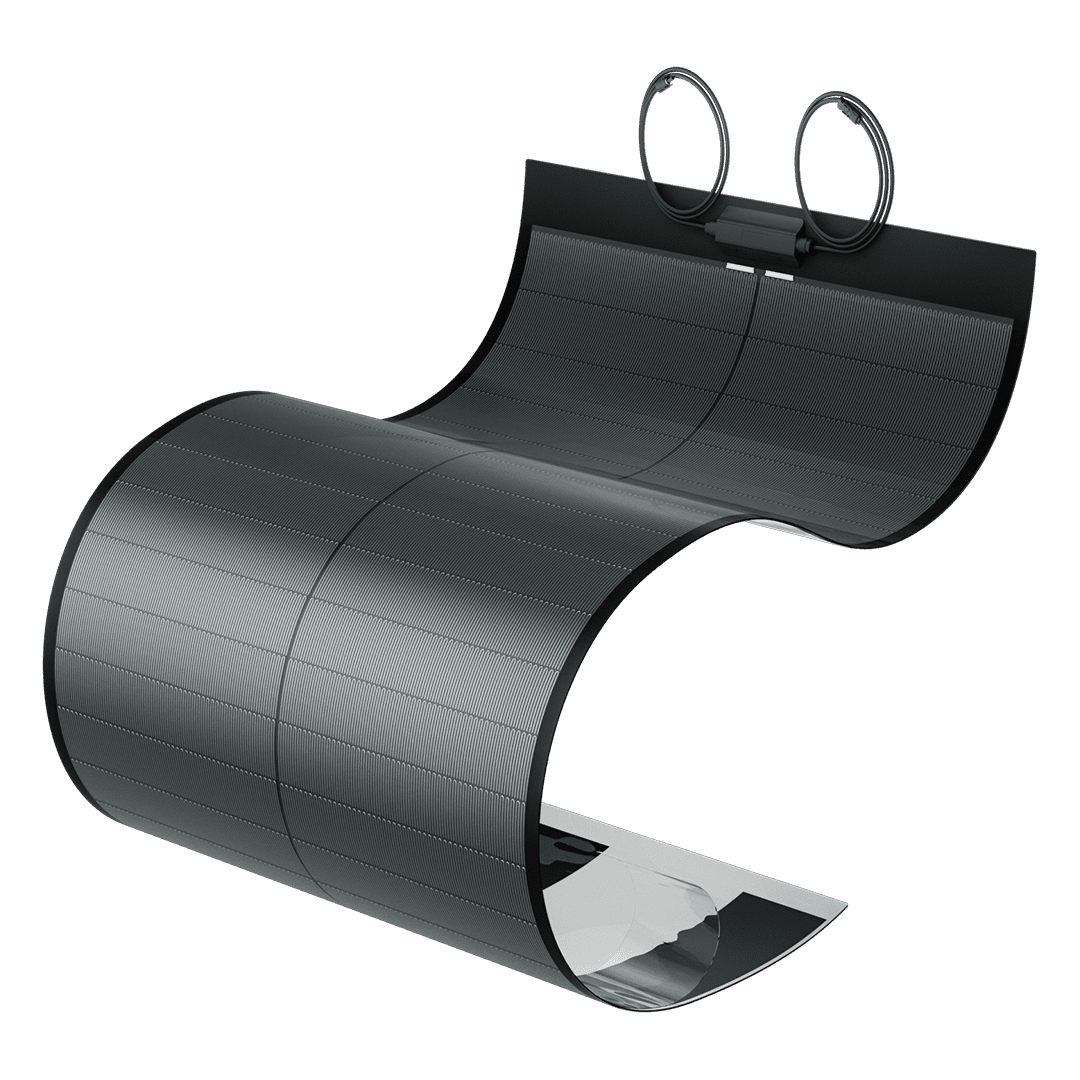

This panel is highly flexible and can be rolled up for compact storage and transportation, and it can be bent and adjusted to fit curved surfaces without cracking. It is lightweight and thin, so it does not require additional mounting or aluminum frames, which improves aerodynamics and the overall aesthetics of a solar setup. The CIGS solar cells are flexible and crack-resistant, unlike more rigid monocrystalline cells. Multiple bypass diodes give the panel an anti-shading design that minimizes power loss under partial shading and delivers up to 38% more energy on cloudy days than conventional monocrystalline panels over an 8-hour cloudy day. The panel is durable enough to withstand impacts during installation and transportation, and can still function even if partially damaged. It features a pre-assembled adhesive backing that eliminates the need for brackets and drilling, so no tools are required for installation. It can be installed on a wide range of surfaces, including RVs, trucks, boats, tents, and roofs, and its lightweight design also allows it to be rolled up and carried as a portable solar panel.

Specifications

  • SKU: ISE160
  • Max Power (Pmax): 100±5%W
  • Solar Cells Efficiency: 17%
  • Max. Power Voltage Vmp (V): 24±5%V
  • Max. Power Current Imp (A): 4.21±5%A
  • Open Circuit Voltage Voc (V): 30.5±5%V
  • Short Circuit Current (Isc): 4.71±5%A
  • Max. System Voltage: 1000V DC
  • Operating Temperature Limits: -40℉ ~ +185℉
  • Series Fuse Rating: 10A
  • Temperature Coefficient Pmax: -0.38%/℃
  • Temperature Coefficient Voc: -0.28%/℃
  • Temperature Coefficient Isc: -0.008%/℃
  • Dimensions: 42.6*26.0*0.06 inches
  • Weight: 4.54 lbs
  • Product Type: Solar Panel

Warranty

Warranty Description: 10 Years. Performance Warranty: 25 years.
