Product Description

About

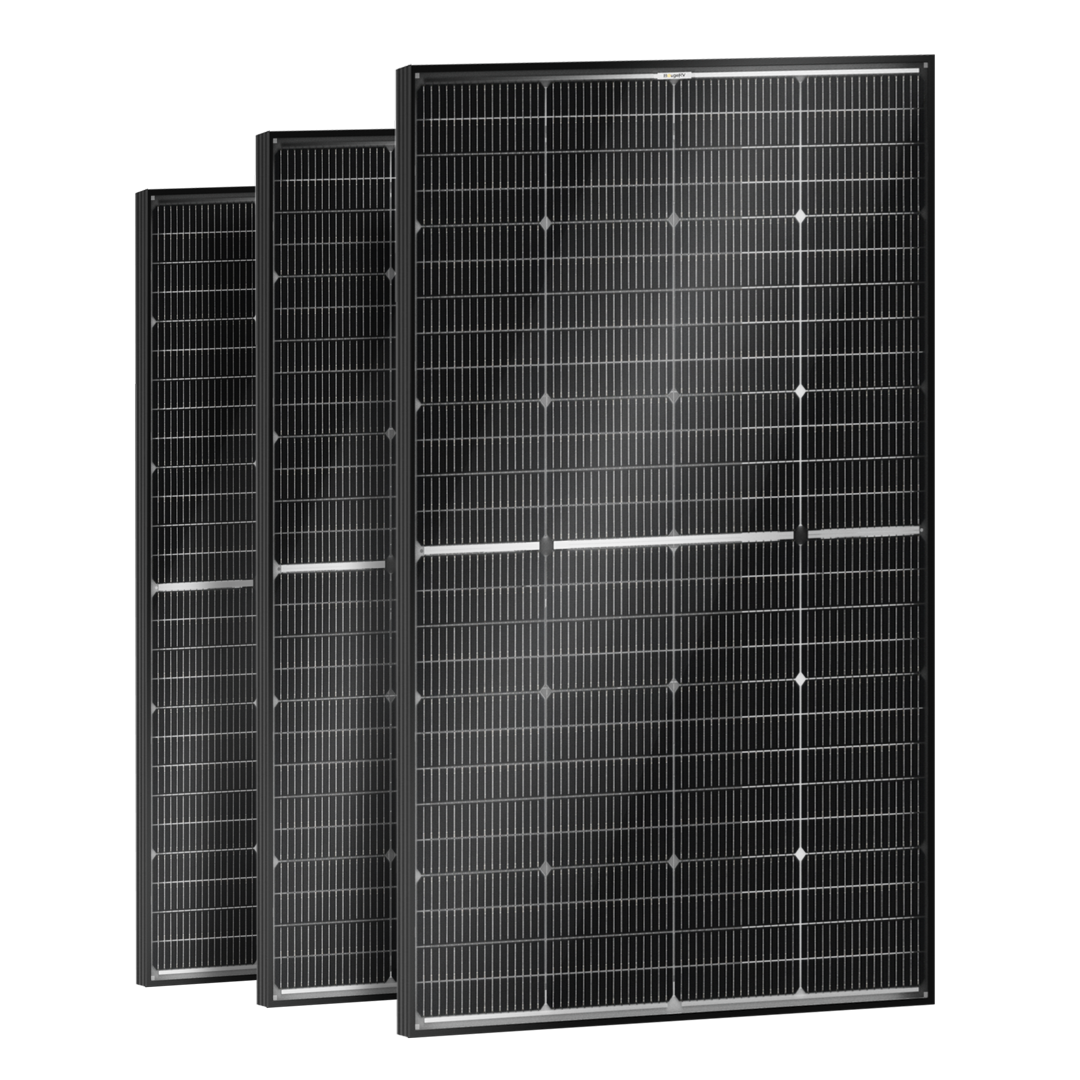

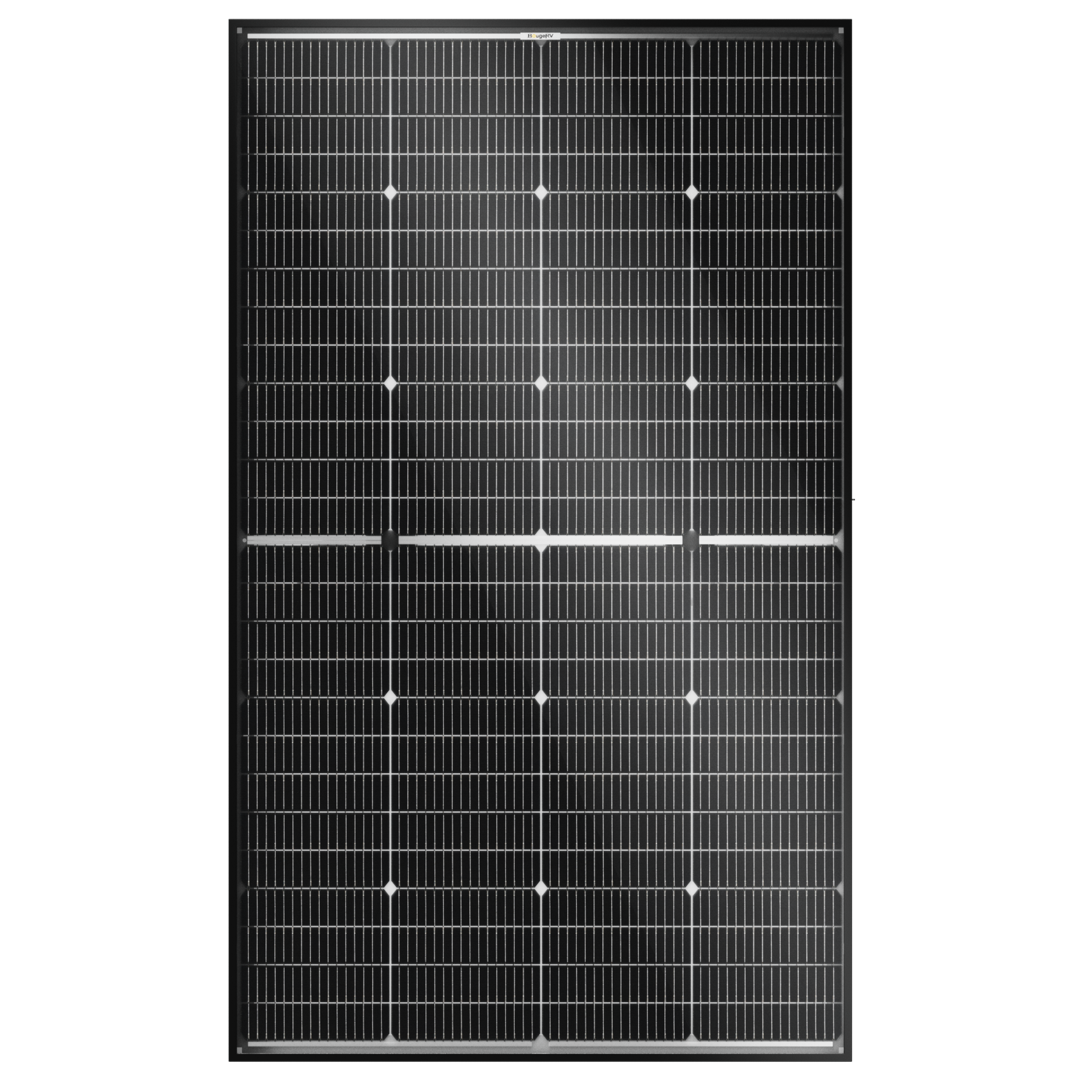

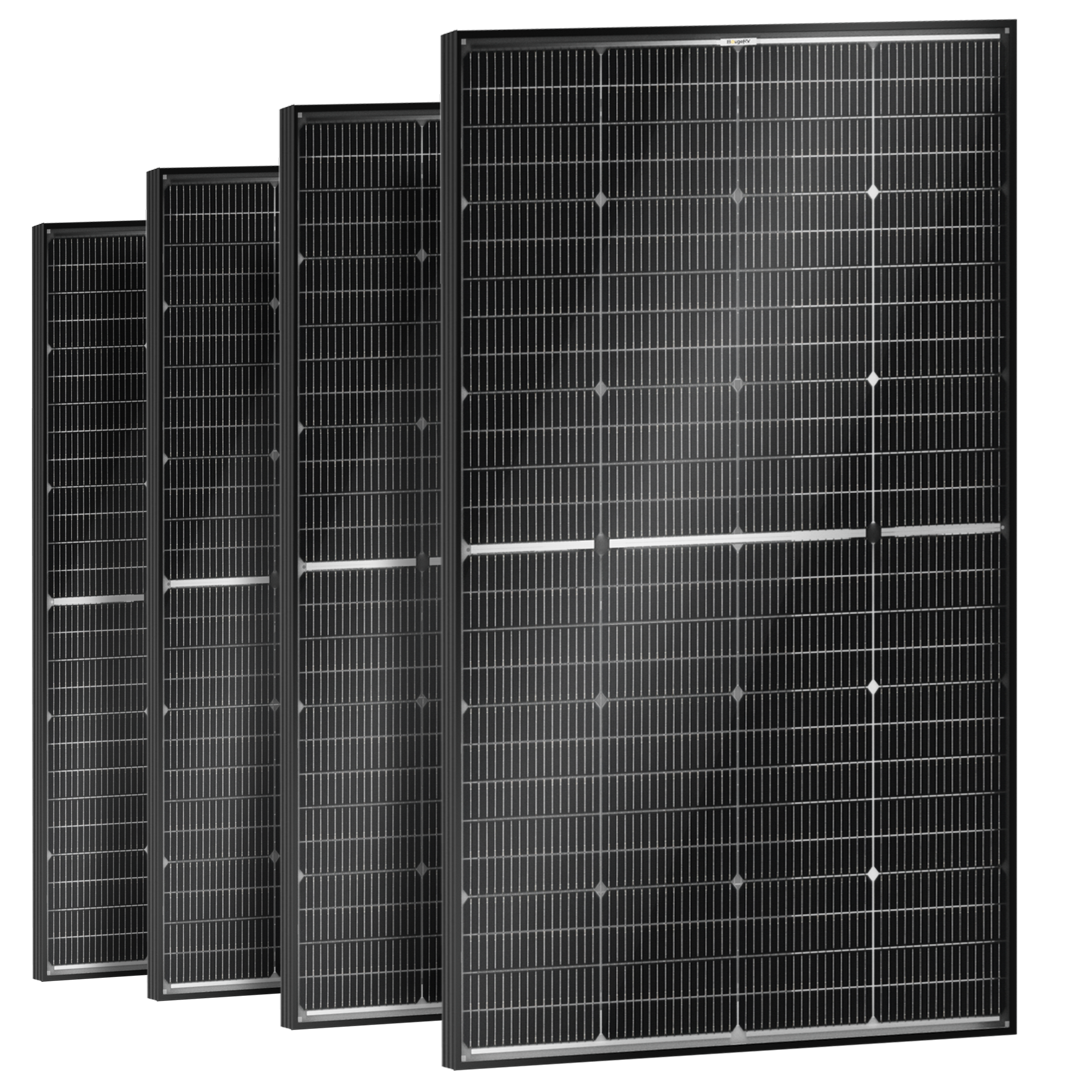

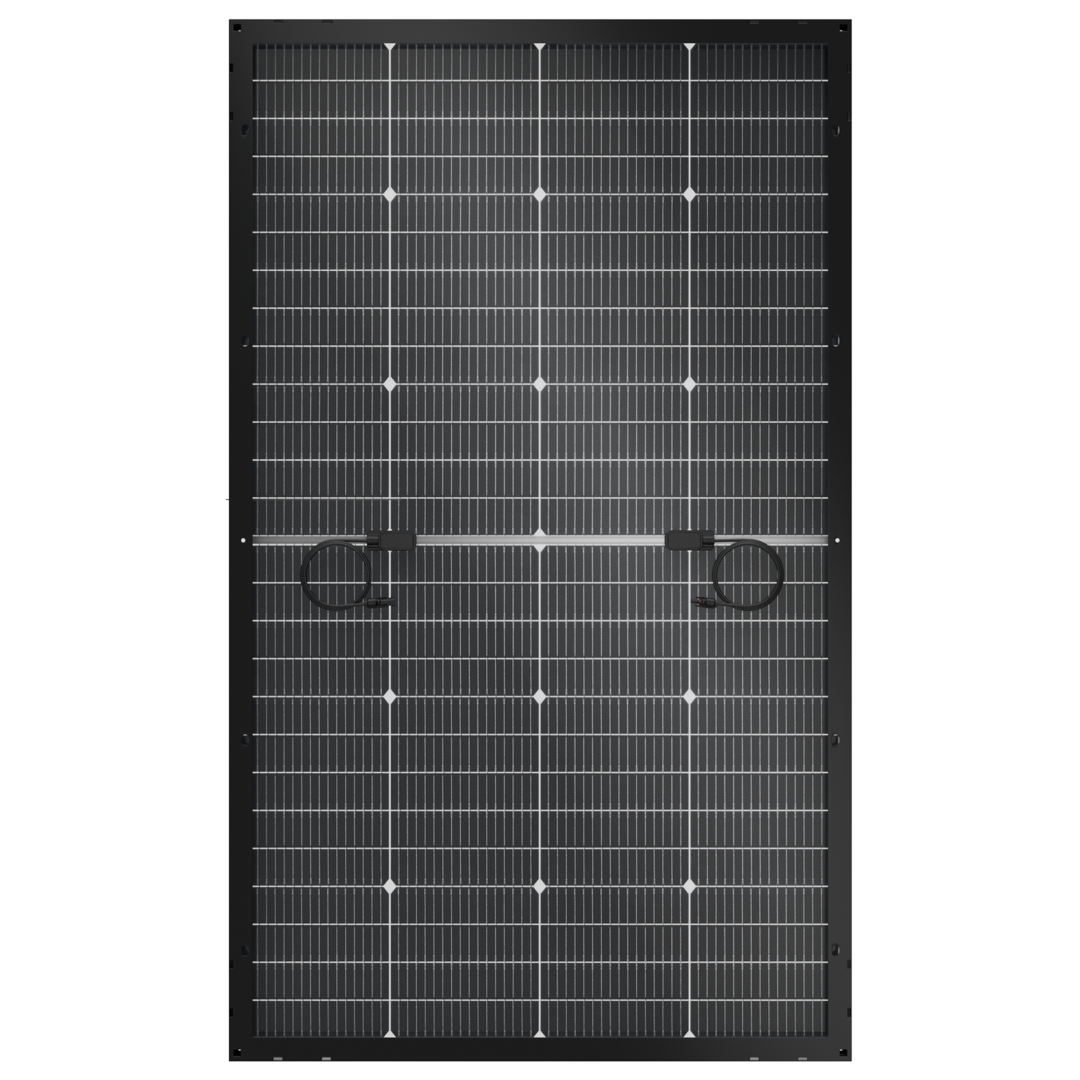

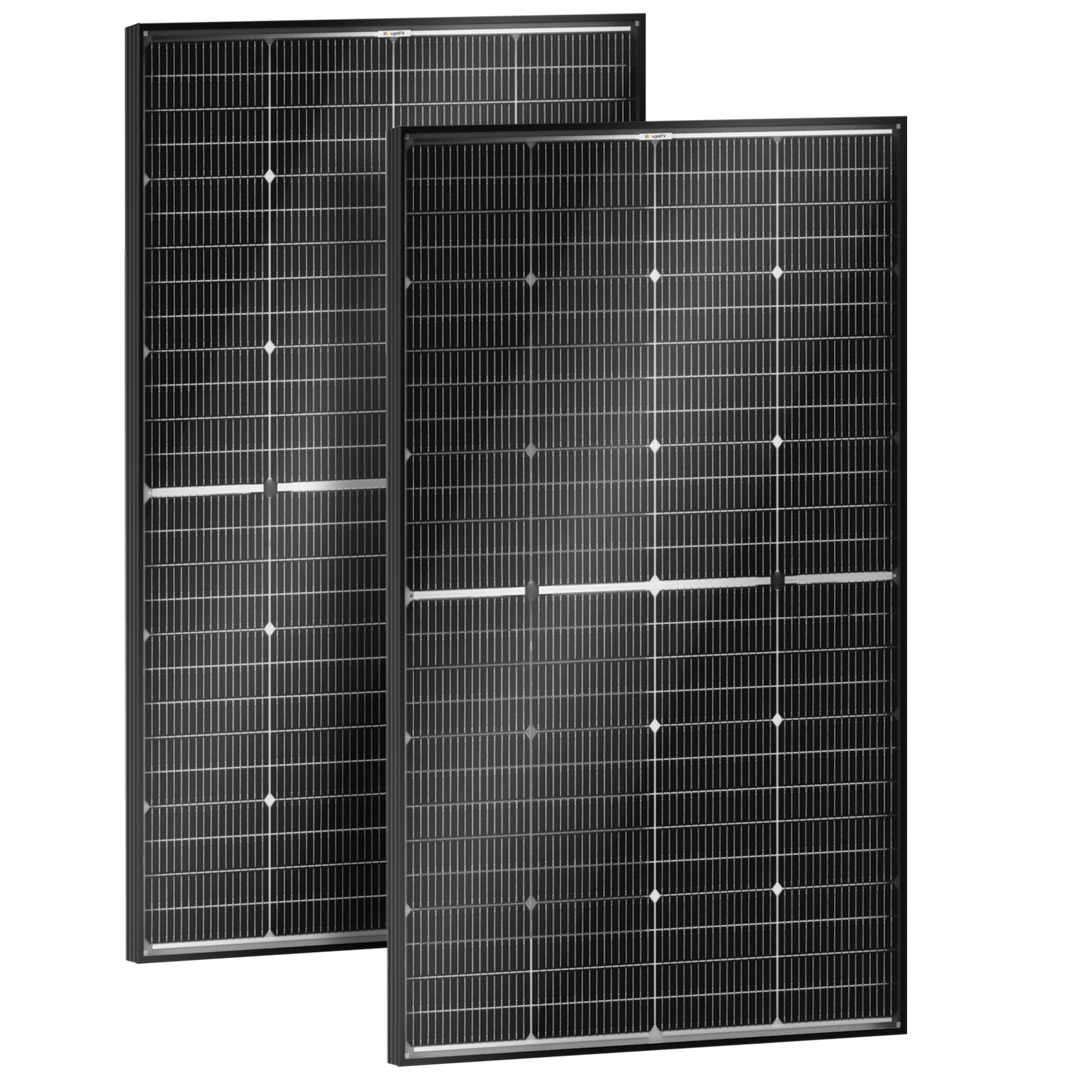

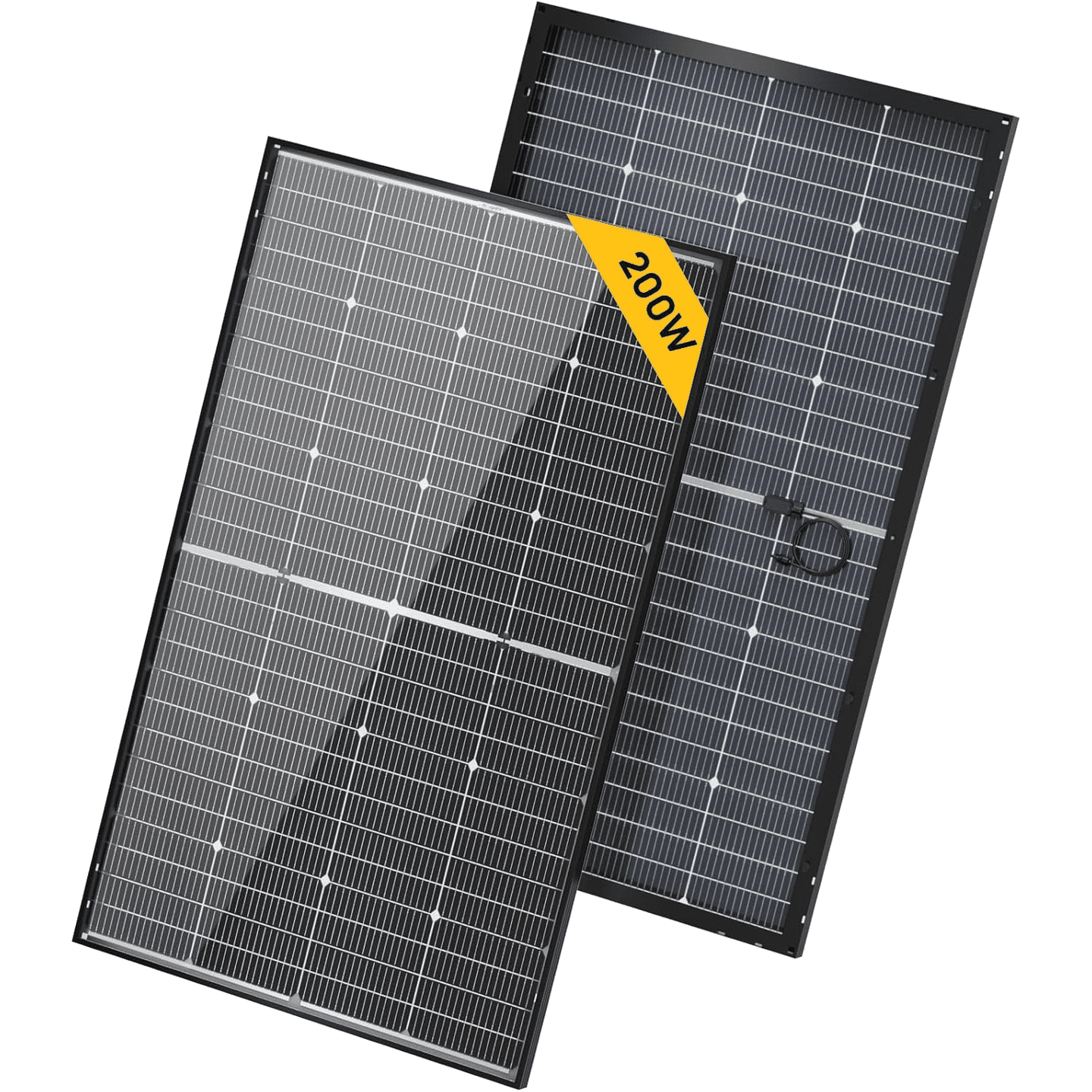

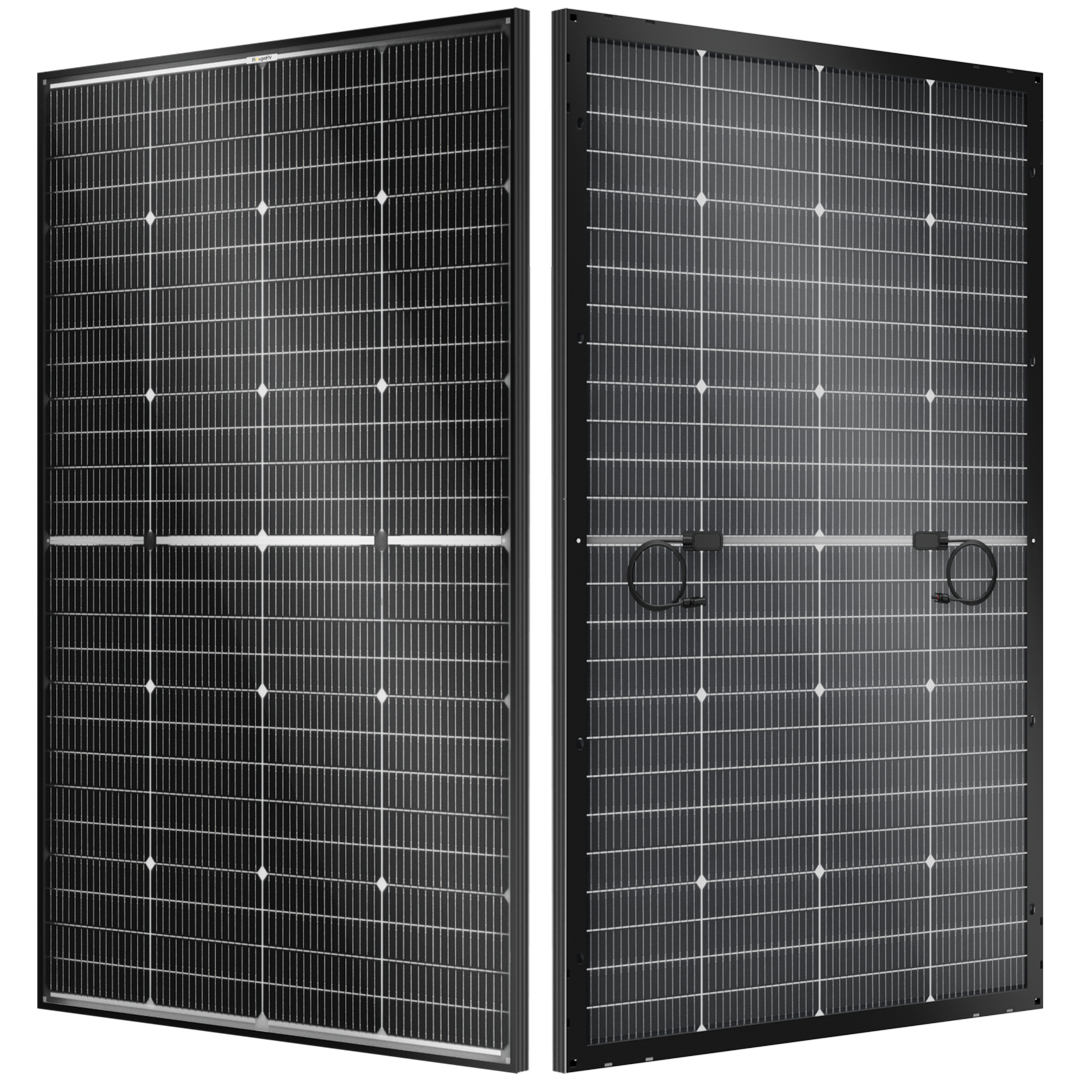

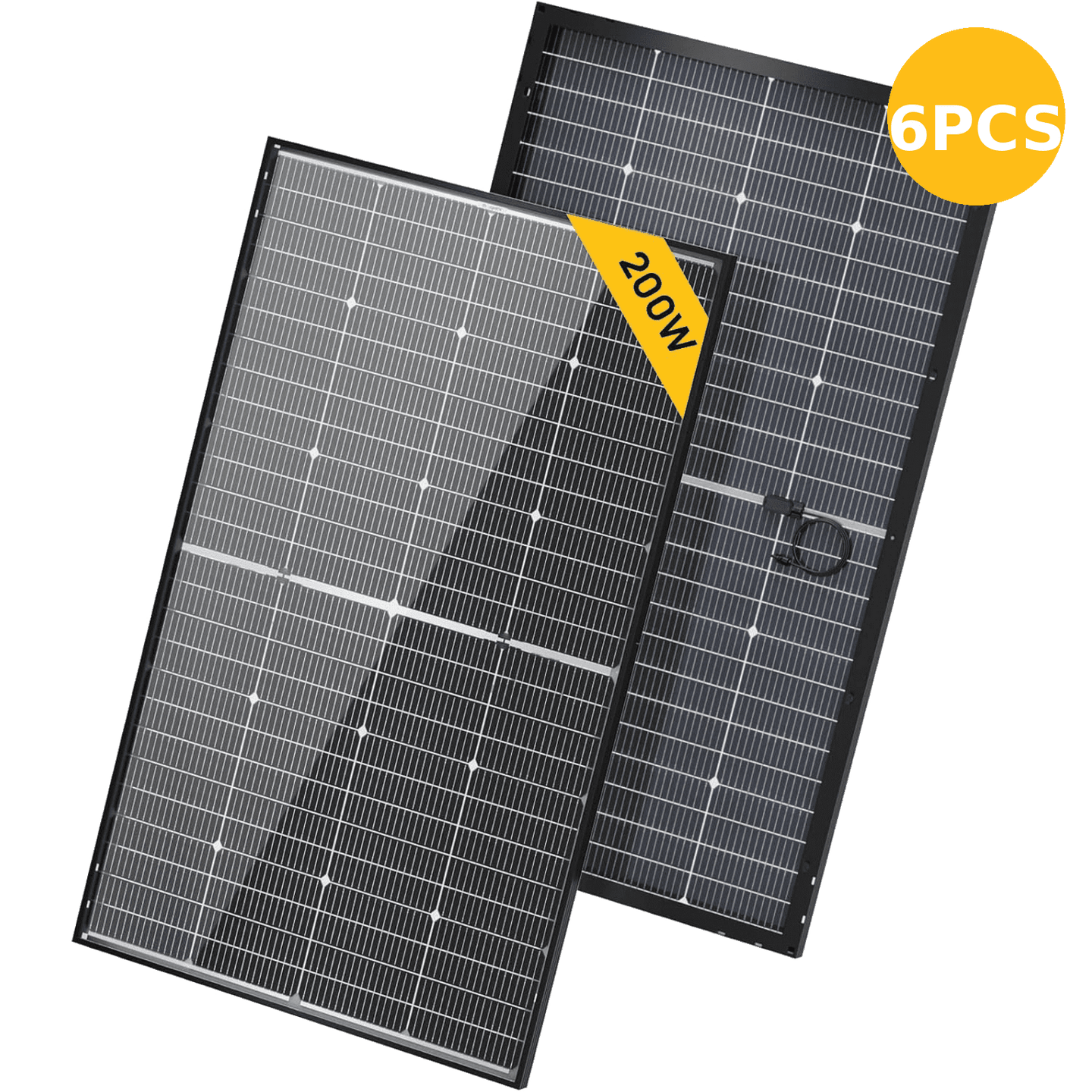

The BougeRV N-Type 12V/24V 200 Watt Bifacial 16BB Solar Panel features N-Type technology for a 25% conversion rate and a 16BB cell design that boosts current collection and extends service life. With an 80% bifacial gain, it captures energy from both sides of the panel to maximize output.

This panel is available in a 12V Standard Voltage version and a 24V High-Voltage version, adapting to different power needs. It is built with N-Type solar cells that use advanced Industrial Tunnel Oxide Passivated technology, offering an improvement over standard P-Type solar cells.

According to laboratory test data, N-Type solar panels can have a service life of 30 years, compared to 25 years for P-Type solar panels, making this panel a longer-term investment. It is built with a rugged, heavy-duty frame and advanced N-Type TOPCon cells for reliability across weather conditions including rain, snow, and heavy overcast.

Features

N-Type solar cells deliver a 25% conversion rate, using advanced Industrial Tunnel Oxide Passivated technology compared to standard P-Type solar cells. The 16BB cell design boosts current collection and helps extend the panel's service life. An 80% bifacial gain allows the panel to capture energy from both sides, maximizing output. Laboratory test data shows N-Type solar panels can achieve a 30-year service life, five years longer than the 25-year lifespan of P-Type solar panels. The panel is built with a rugged, heavy-duty frame and advanced N-Type TOPCon cells designed to deliver reliable performance in rain, snow, and heavy overcast conditions. It is offered in both 12V Standard Voltage and 24V High-Voltage versions to adapt to different power needs.

Specifications

  • SKU: ISE251 (Standard Version, 12V) / ISE237 (High-Voltage Version, 24V)
  • Open Circuit Voltage (Voc): 28V ±5% (12V) / 36.4V ±5% (24V)
  • Max Power Voltage (Vmp): 24.4V ±5% (12V) / 31.7V ±5% (24V)
  • Max Power Current (Imp): 8.2A ±5% (12V) / 6.3A ±5% (24V)
  • Short Circuit Current (Isc): 8.6A ±5% (12V) / 6.6A ±5% (24V)
  • Dimensions: 51.57×30.20×1.38 in (12V) / 50.67×30.20×1.38 in (24V)
  • Weight: 22.8 lb (12V) / 22.5 lb (24V)
  • Efficiency: 25%
  • Max Load: 2400 Pa (front/back)
  • Fuse: 15A
  • Class: Class A

Warranty

Product Warranty: 10 Years. Performance Warranty: 30 Years.
