Product Description

About

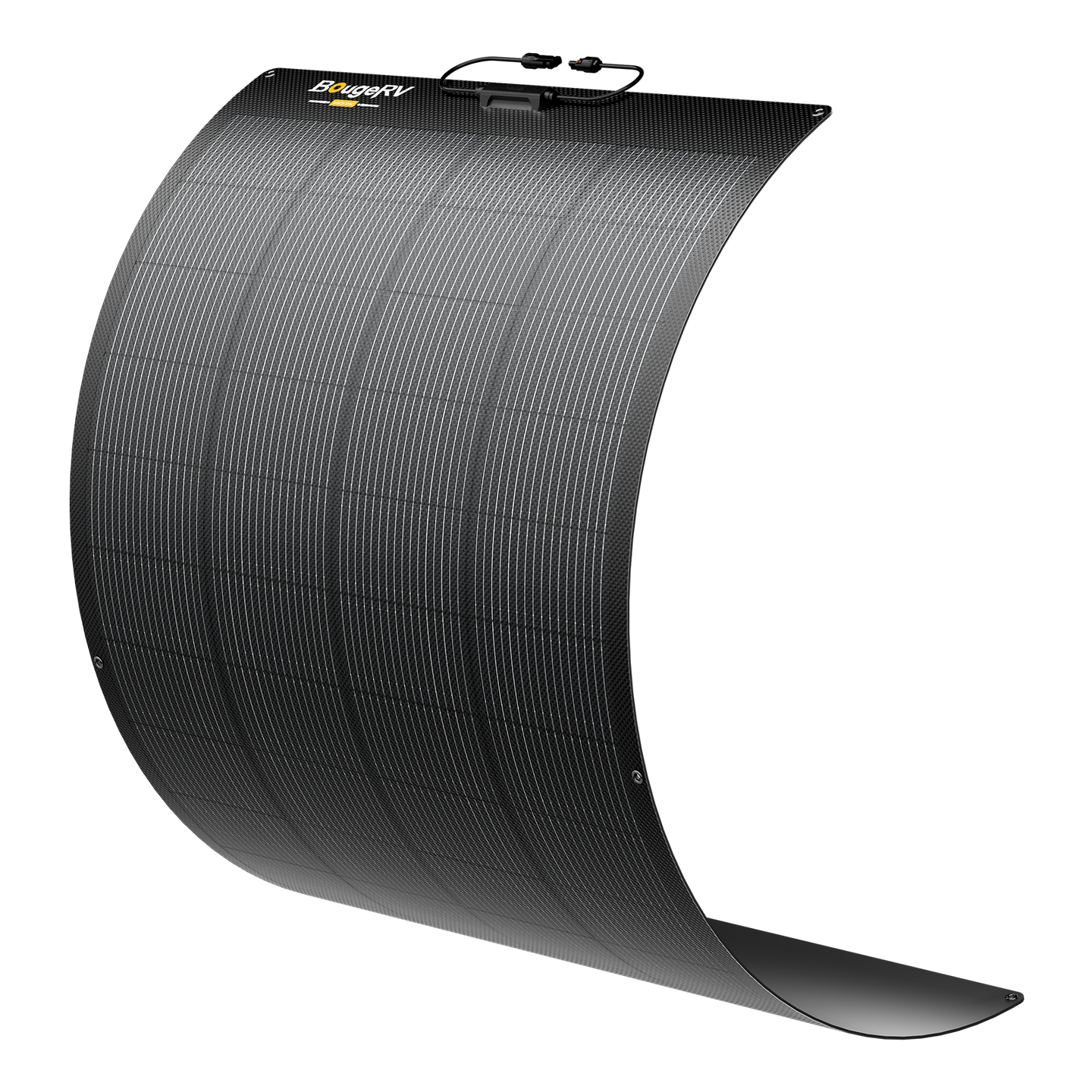

The BougeRV Arch Pro 100W Flexible Solar Panel takes solar power anywhere. Ultra-light at just 4.6 lbs and ultra-thin, it is designed for RVs, boats, tents, and mobile adventures. With 25% conversion efficiency and 16 busbars for higher output, it delivers reliable energy even in partial shade.

It is durable and weatherproof, withstanding IP68 waterproofing, strong winds, and heavy snow, while its 270° flexible design fits any curved or uneven surface. Designed to contour to curved surfaces like RV roofs, boat decks, and overland rooftop tents, this ultralight, slim panel delivers reliable 12V/24V power without adding unnecessary weight, suiting uses from weekend road trips to off-grid cabins.

Features

The panel uses an anti-shading design with 27 bypass diodes that isolate shaded cells to reduce power loss under partial shading, useful for boat decks, overlanding rooftops, and forest trails. It uses N-Type TOPCon solar cells with a 16-busbar (16BB) layout, delivering up to 25% conversion efficiency, higher efficiency, longer lifespan, and superior reliability compared to traditional PERC panels, while the 16-busbar layout shortens the current path and reduces resistance losses for more uniform current distribution. It is built with dual-layer fiberglass composite construction that resists impact, pressure, hail, and vibration. The panel weighs only 4.6 lbs (2.1 kg) and is just 2.5 mm thick, and can bend up to 270° to adapt to curved surfaces on boats, RVs, Jeeps, and rooftops. It carries IP68 waterproof protection and is built to withstand strong winds (2400 Pa) and heavy snow (5400 Pa), reinforced with corrosion-resistant aluminum.

Specifications

  • SKU: SP003
  • Max Power (Pmax): 100±5%W
  • Operating Temperature Limits: -40℉ ~ +185℉
  • Solar Cells Efficiency: 25%
  • Series Fuse Rating: 15A
  • Max. Power Voltage Vmp (V): 32.4V±5%
  • Temperature Coefficient Pmax: -0.35%/K
  • Max. Power Current Imp (A): 3.1A±5%
  • Temperature Coefficient Voc: -0.3%/K
  • Open Circuit Voltage Voc (V): 37.8V±5%
  • Temperature Coefficient Isc: +0.048%/K
  • Short Circuit Current (Isc): 3.2A±5%
  • Dimensions: 38.3*24.1*0.01 inches
  • Weight: 4.6 lbs
  • Product Type: Curved Solar Panels

Warranty

Power output warranty: 25 years 80% output warranty. Material & workmanship warranty: 5 Years.
