Product Description

About

The BougeRV 800W Arch Pro is a complete off-grid solar power system designed for reliable, long-term energy use. With 800 watts of high-efficiency solar panels, a 3000W inverter, and a smart MPPT charge controller, this system delivers stable power for a wide range of applications.

Ideal for off-grid cabins, tiny homes, RVs, vans, and emergency backup, it supports essential appliances such as refrigerators, air conditioners, power tools, and electronic devices. The advanced Topcon solar cell technology improves energy conversion and ensures better performance in low-light conditions, while the durable panel design withstands harsh weather and transportation environments.

This plug-and-play solar kit helps reduce reliance on generators and lowers long-term energy costs. Whether building an off-grid setup, upgrading an RV solar system, or preparing for power outages, the BougeRV 800W system provides a dependable and efficient energy solution.

Features

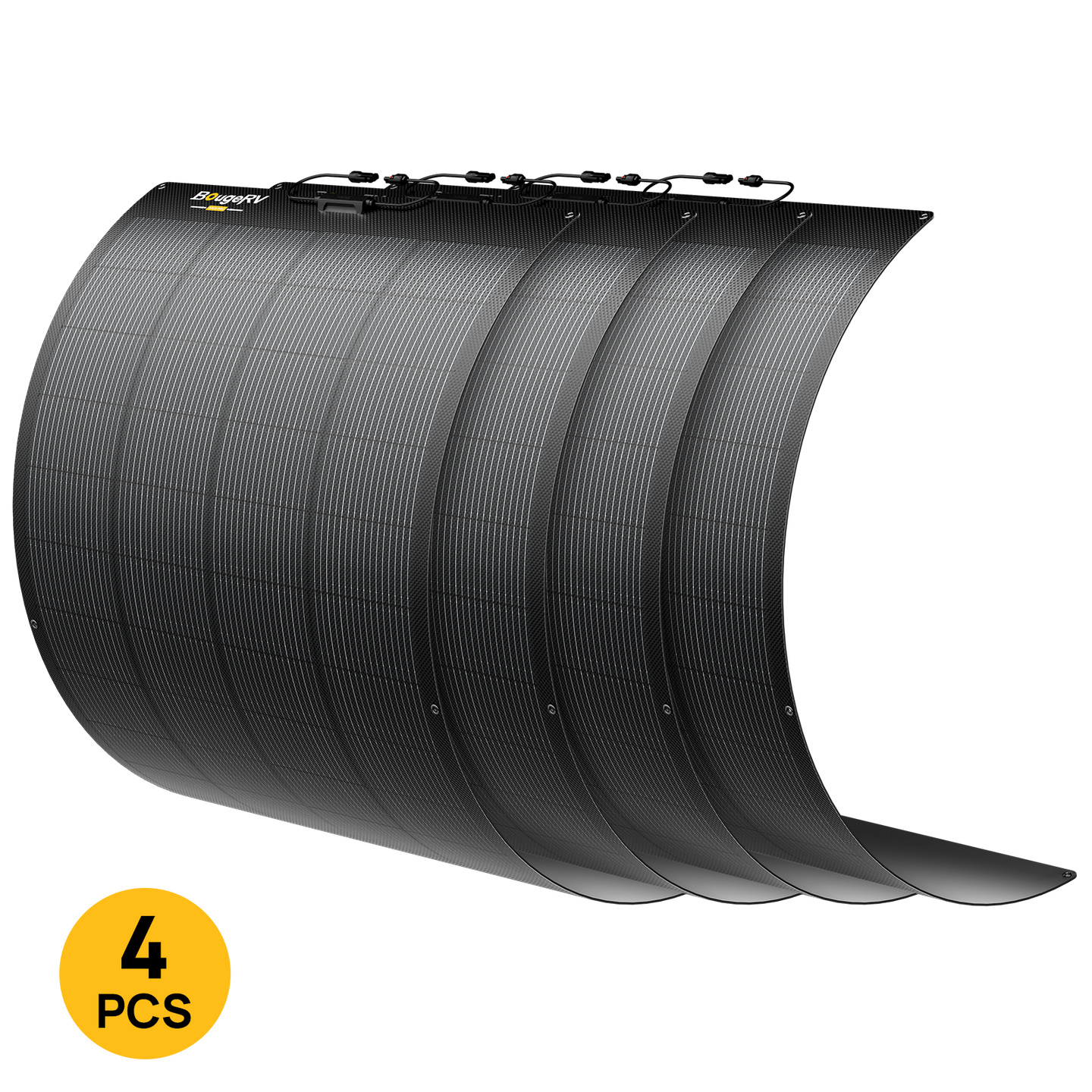

The BougeRV Arch Pro 200W N-Type TOPCon Flexible Solar Panel offers 25% high-efficiency output, an anti-shading design, a compact size, and multiple bypass diode technology.

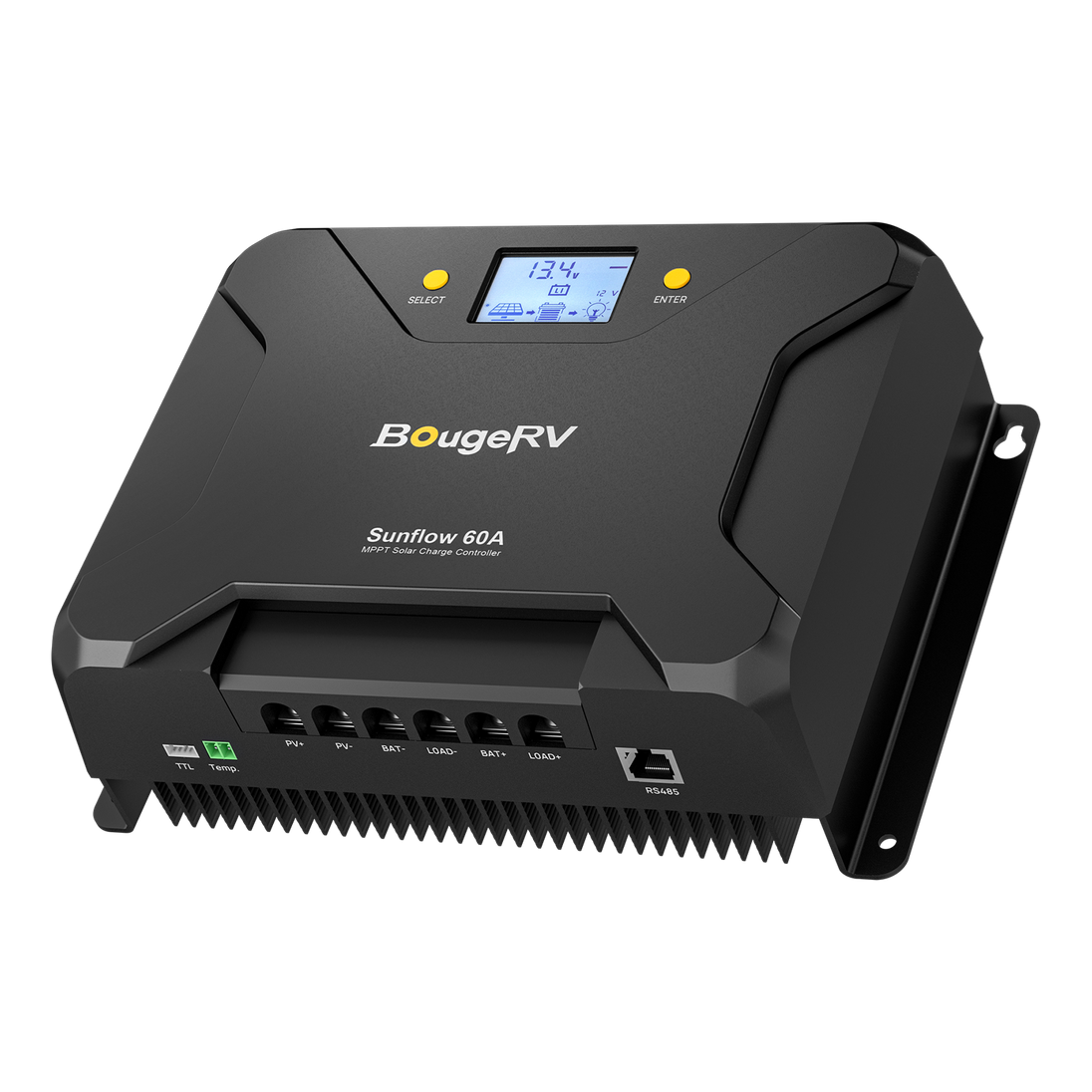

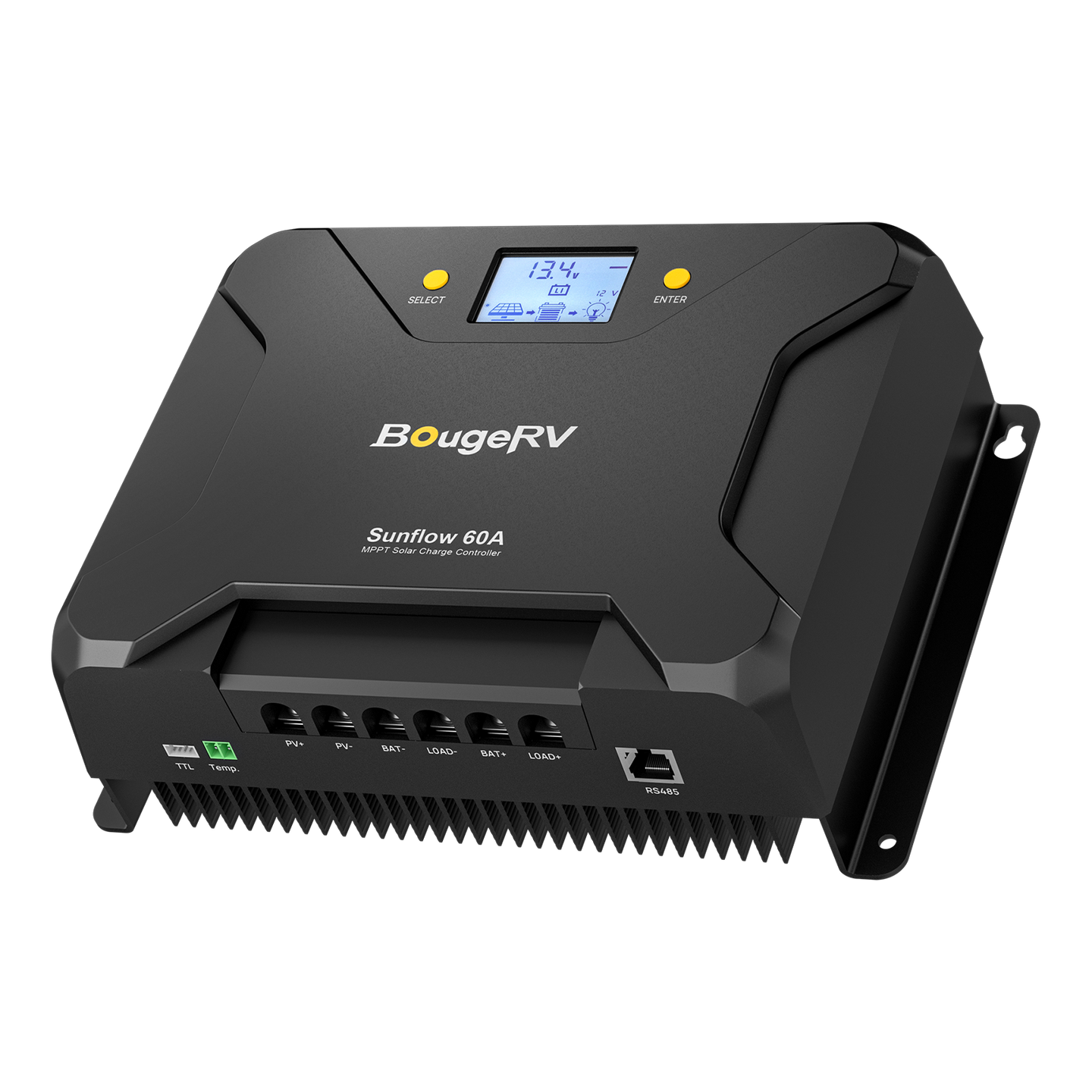

The BougeRV Sunflow 60A MPPT Solar Charge Controller (12V/24V) includes low-temperature protection, advanced system protection, high-efficiency solar charging, smart off-grid control, and an adjustable charging current.

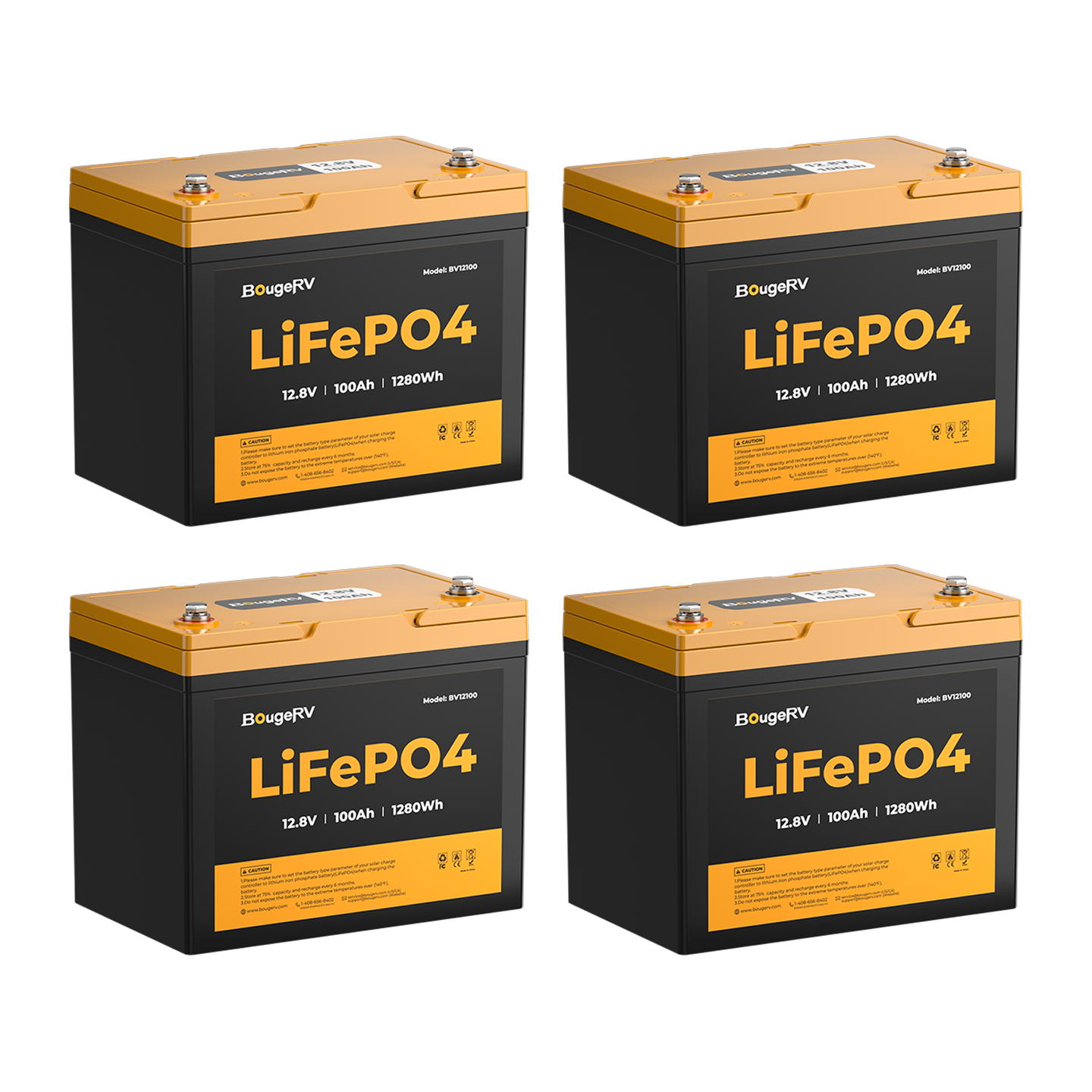

The BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery features BMS protection, low-temperature cut-off, a compact size, and an ultra-long cycle life.

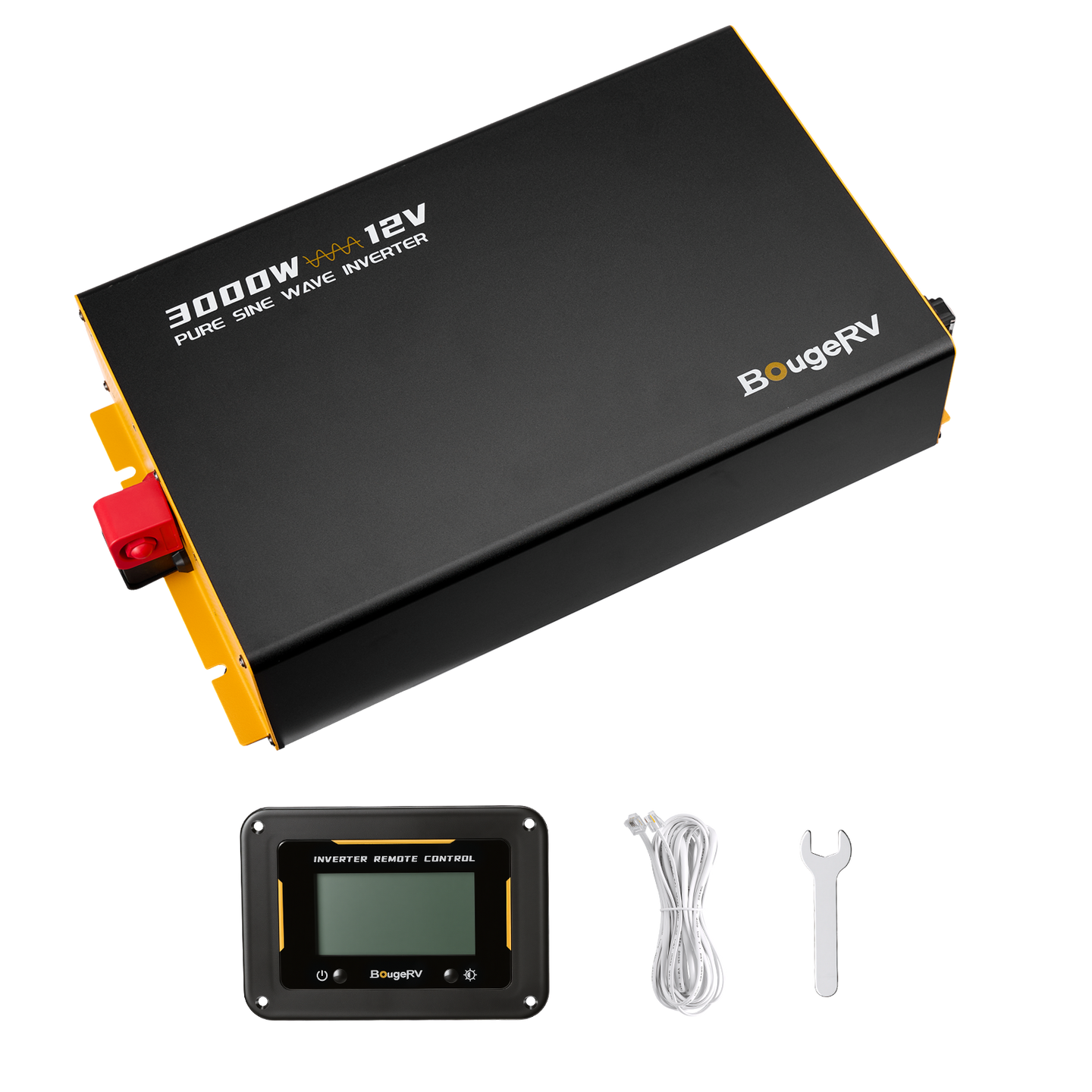

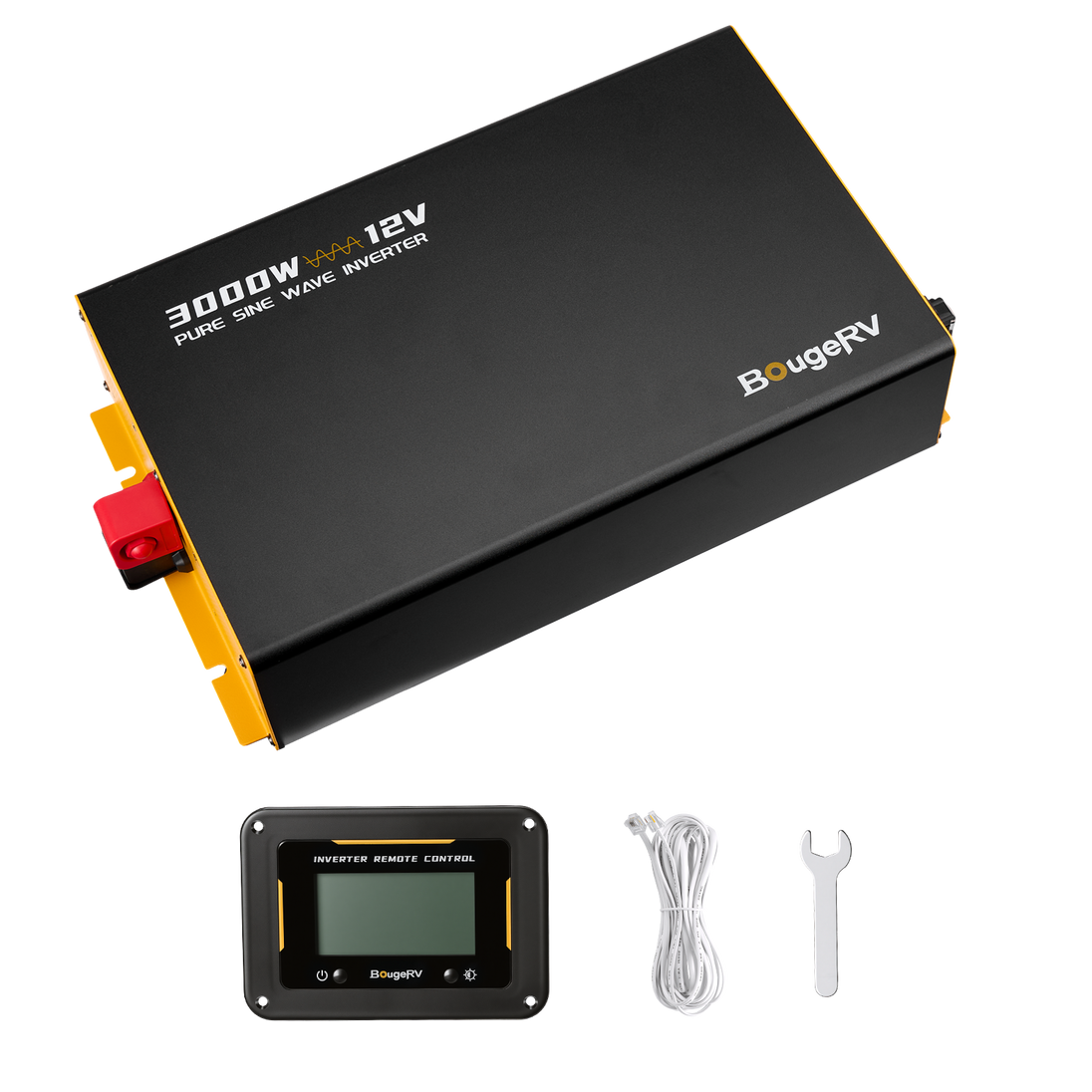

The BougeRV 3000W 12V Pure Sine Wave Inverter with Bluetooth delivers a full 3000W output with pure sine wave and low THD, multi-layer protection, smart temperature control, and a real-time remote display.

Specifications

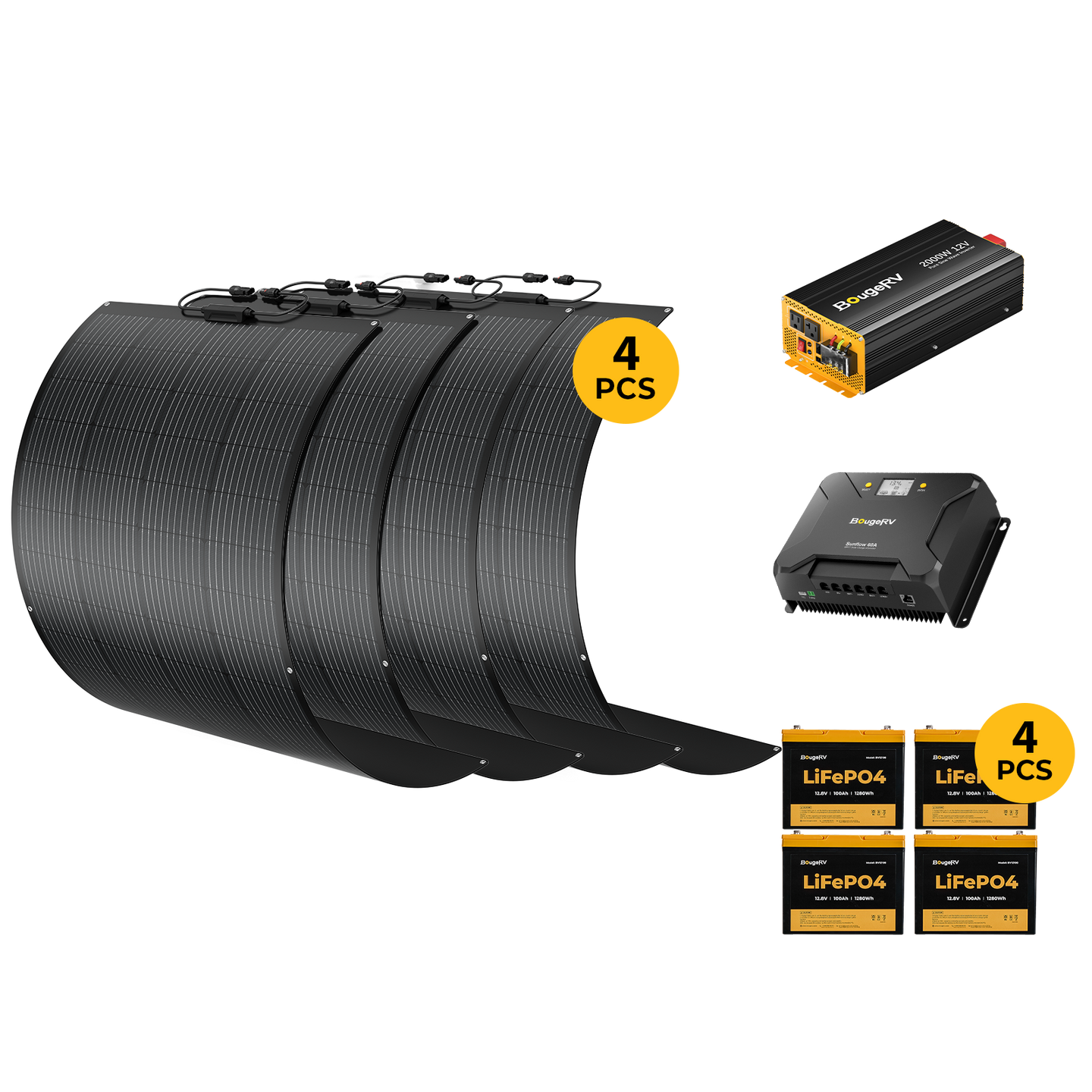

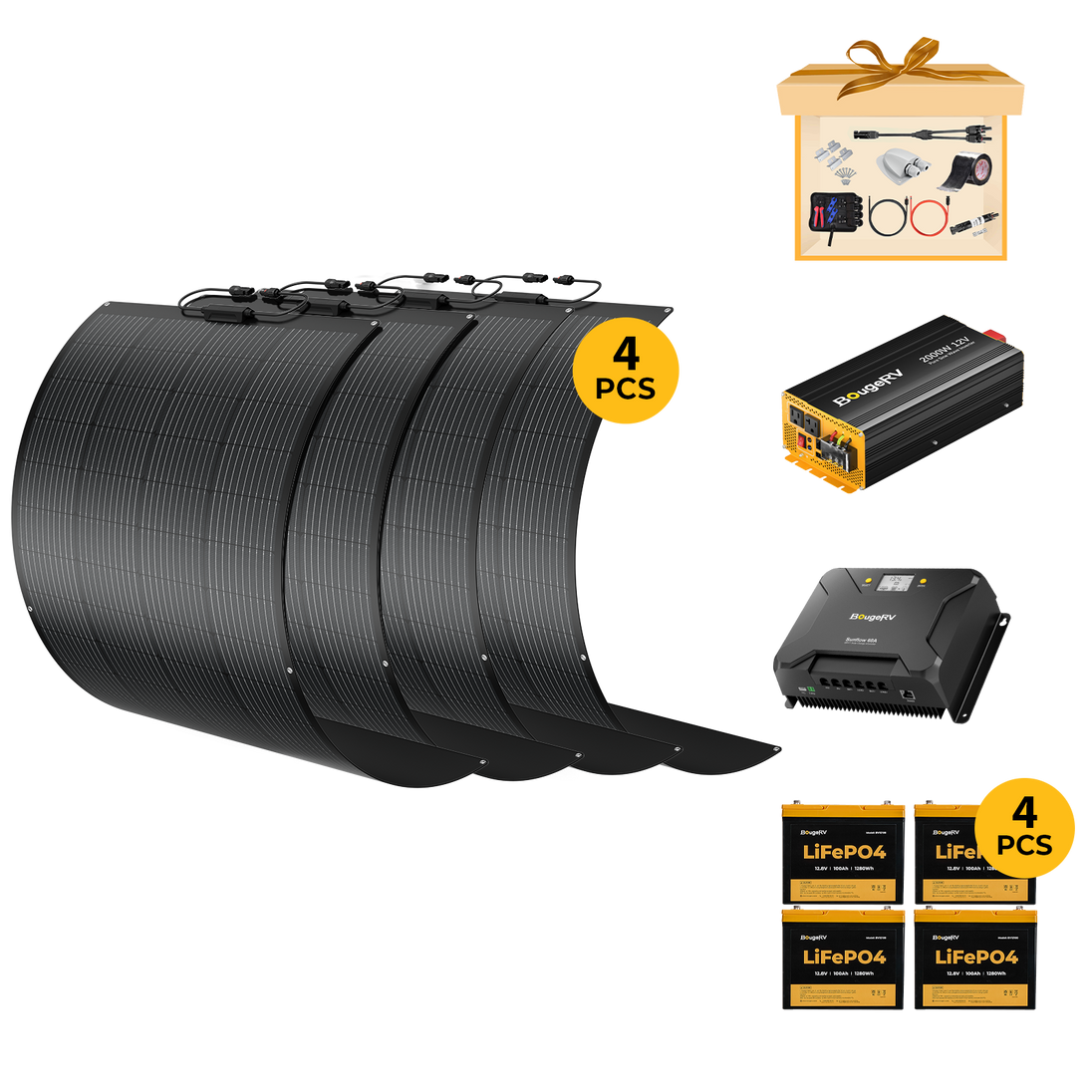

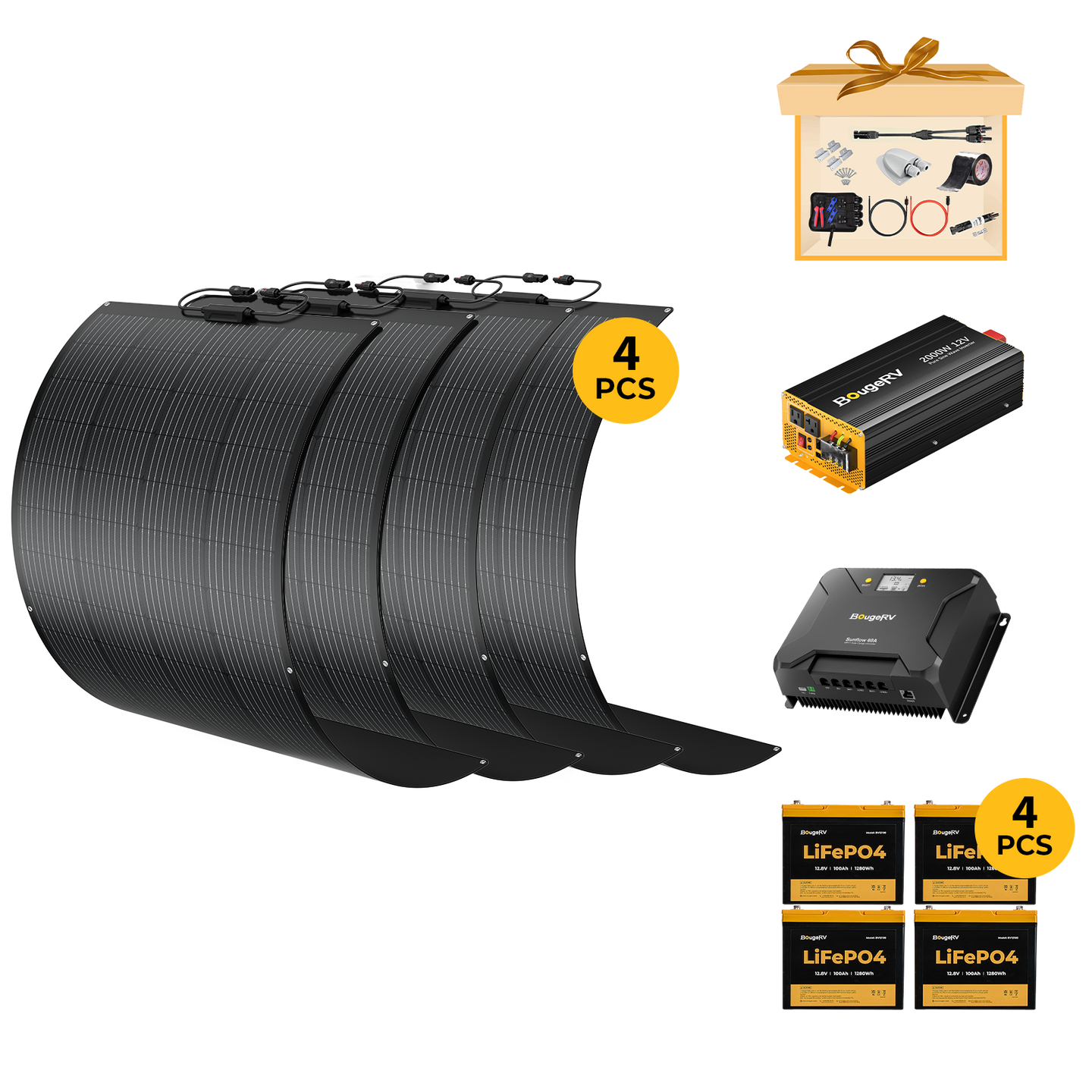

  • What's in the Box: Solar Panel SP004 x4, MPPT Charge Controller ISE219-BK, LiFePO4 Battery ISE212N x4, Inverter SI001-BK-LYTYC1
  • Solar Panel – SKU: SP004
  • Solar Panel – Max Power (Pmax): 200±5%W
  • Solar Panel – Operating Temperature Limits: -40°F ~ +185°F
  • Solar Panel – Solar Cells Efficiency: 25%
  • Solar Panel – Series Fuse Rating: 15A
  • Solar Panel – Max. Power Voltage (Vmp): 31.1V±5%
  • Solar Panel – Max. Power Current (Imp): 6.43A±5%
  • Solar Panel – Open Circuit Voltage (Voc): 36.4V±5%
  • Solar Panel – Short Circuit Current (Isc): 6.7A±5%
  • Solar Panel – Temperature Coefficient Pmax: -0.35%/K
  • Solar Panel – Temperature Coefficient Voc: -0.3%/K
  • Solar Panel – Temperature Coefficient Isc: +0.048%/K
  • Solar Panel – Max. System Voltage: 1000V DC
  • Solar Panel – Dimensions: 53 x 31 x 0.01 inches
  • Solar Panel – Weight: 7.9 lbs
  • MPPT Charge Controller – SKU: ISE219
  • MPPT Charge Controller – System Voltage: 12V/24V
  • MPPT Charge Controller – Battery Type: LiFePO4, SLD, GEL, FLD, AGM, User Defined
  • MPPT Charge Controller – Rated Charging Current: 60 Amp
  • MPPT Charge Controller – Charge Current Adjust Range: 0 Amp to 60 Amp
  • MPPT Charge Controller – Grounding Type: Common Negative
  • MPPT Charge Controller – Maximum PV Input Voltage: 100V (95V protection, 90V recovery)
  • MPPT Charge Controller – Maximum Input of PV System: 900W/12V; 1800W/24V
  • MPPT Charge Controller – Rated Load Current: 20 Amp
  • MPPT Charge Controller – Battery Operate Voltage Range: 8V to 32V
  • MPPT Charge Controller – Operating Temperature Range: -31°F to 149°F (-35°C to 65°C)
  • MPPT Charge Controller – Protection Grade: IP34
  • MPPT Charge Controller – Bluetooth Communication: Built-in Bluetooth
  • MPPT Charge Controller – Data Storage: Saves the last 200 days of historical data
  • MPPT Charge Controller – No Load Loss: ≤10mA
  • MPPT Charge Controller – Dimensions: 10.35L x 7.32W x 3.35H inches
  • MPPT Charge Controller – Weight: 5.52 lbs
  • LiFePO4 Battery – SKU: ISE212N
  • LiFePO4 Battery – Nominal Voltage: 12.8V
  • LiFePO4 Battery – Nominal Capacity: 100Ah
  • LiFePO4 Battery – Energy: 1280Wh
  • LiFePO4 Battery – Charge Voltage: 14.4~14.6V
  • LiFePO4 Battery – Standard Charge: 20A (0.2C, recommended)
  • LiFePO4 Battery – Maximum Charge Current: 100A (1.0C)
  • LiFePO4 Battery – Maximum Continuous Charge Current: 100A (25°C, 77°F)
  • LiFePO4 Battery – Maximum Continuous Discharge Current: 100A (1C)
  • LiFePO4 Battery – Maximum Discharge Current: 330A (2.5s)
  • LiFePO4 Battery – Over-Charging Protection Voltage: 14.6V
  • LiFePO4 Battery – Over-Charging Recovery Voltage: 14.0V
  • LiFePO4 Battery – Over-Discharging Protection Voltage: 8.8V
  • LiFePO4 Battery – Over-Discharging Protection Recovery Voltage: 10.4V
  • LiFePO4 Battery – Charge Temperature Range: 0°C~65°C (32°F~149°F)
  • LiFePO4 Battery – Discharge Temperature Range: -20°C~75°C (-4°F~167°F)
  • LiFePO4 Battery – Cycle Life: 4000 times (25°C, 0.2C, 100% DOD)
  • LiFePO4 Battery – Maximum Series Voltage of Battery Pack: 48V (4S)
  • LiFePO4 Battery – Maximum Parallel Current of Battery Pack: 400Ah (4P)
  • LiFePO4 Battery – Charge Method: CC/CV
  • LiFePO4 Battery – Dimensions: L10.24 x W6.61 x H8.23 in
  • LiFePO4 Battery – Protection Rating: IP65
  • LiFePO4 Battery – Weight: 24.25 lbs
  • Inverter – SKU: SI001-BK-LYTYC1
  • Inverter – Model: 12V 3000W
  • Inverter – Rated Power: 3000W
  • Inverter – Overload Power: 3200W
  • Inverter – Peak Power: 6000W (1s)
  • Inverter – Output Voltage: 120VAC
  • Inverter – Output Frequency: 50/60Hz
  • Inverter – Input Voltage: 12VDC
  • Inverter – Input Voltage Range: 10V–15.5VDC
  • Inverter – Waveform: Pure Sine Wave
  • Inverter – THD: <5%
  • Inverter – Max Efficiency: >90%
  • Inverter – Full Load Efficiency: >85%
  • Inverter – No-load Loss: <0.9A
  • Inverter – Operating Temp: 14°F–104°F (-10°C–40°C)
  • Inverter – Noise: ≤60dB
  • Inverter – Product Size: 17.12 x 9.37 x 3.94 in
  • Inverter – Weight: 12.79 lbs
  • Inverter – Communication: RS485 / Bluetooth
  • Inverter – USB Port: 18W (5V/9V/12V)

Warranty

Solar Panel: 25-year 80% power output warranty; 5-year material and workmanship warranty. Solar Charge Controller: 18-month product warranty. LiFePO4 Battery: 5-year product warranty.
