BougeRV 12V 400W TOPCon Rigid Solar Kit

About

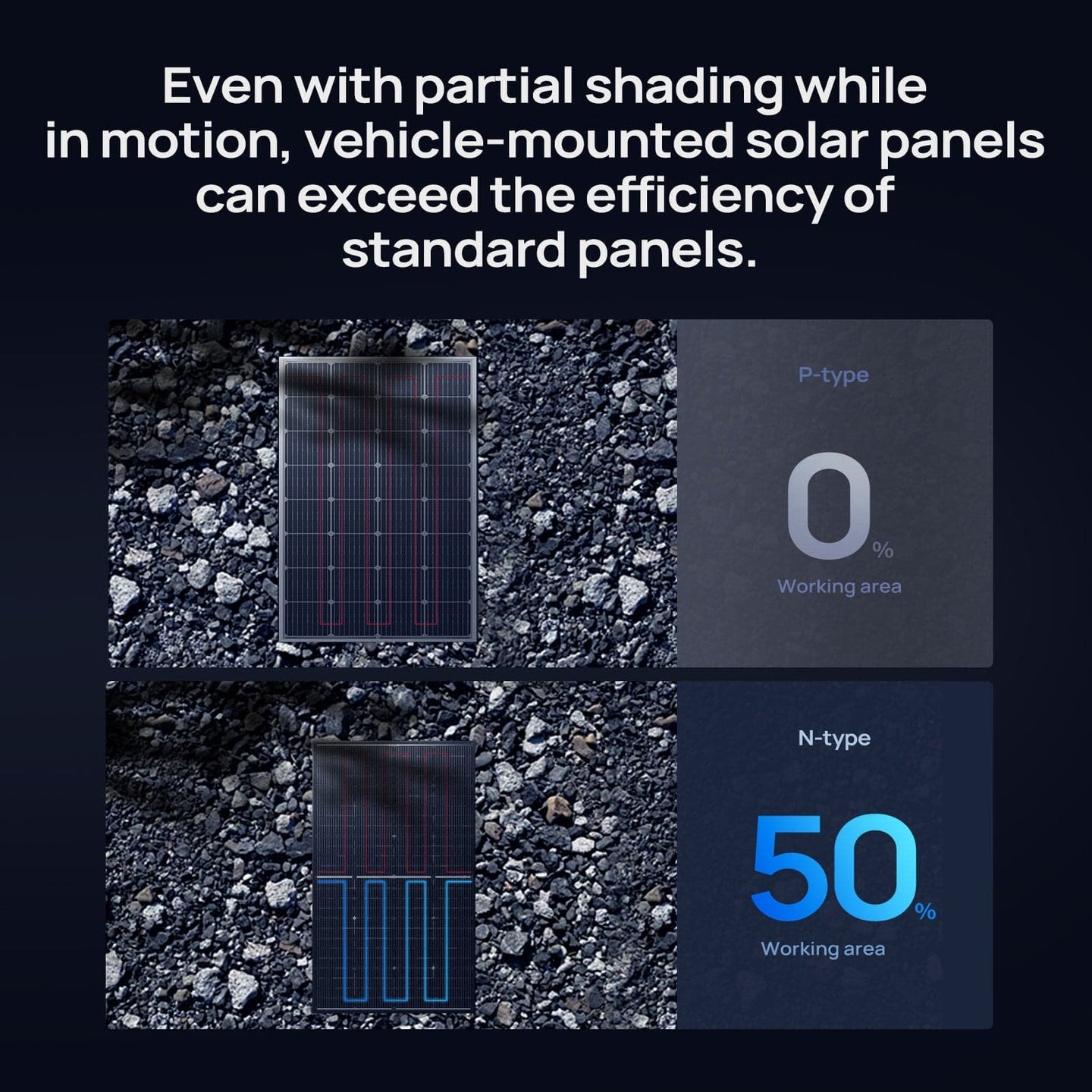

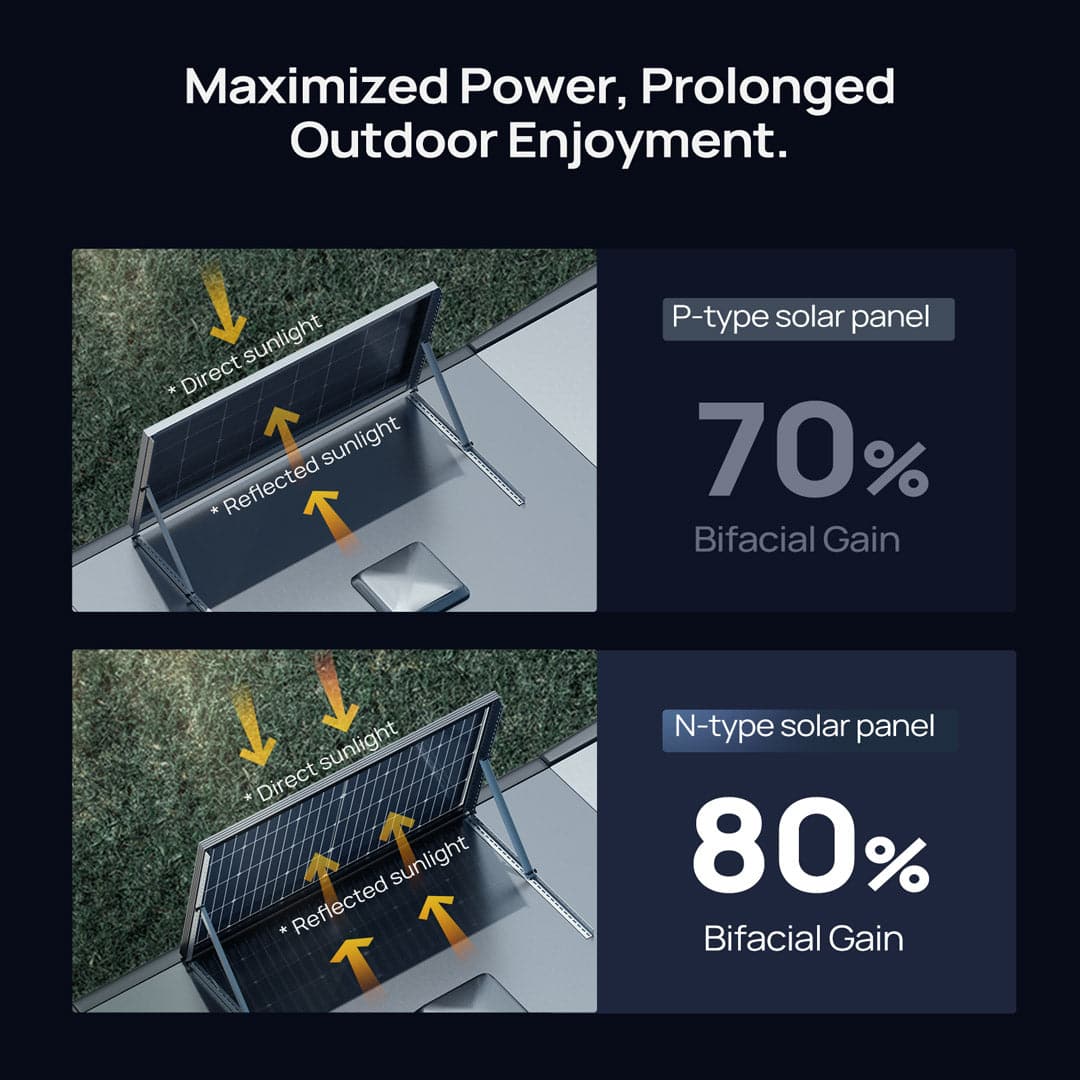

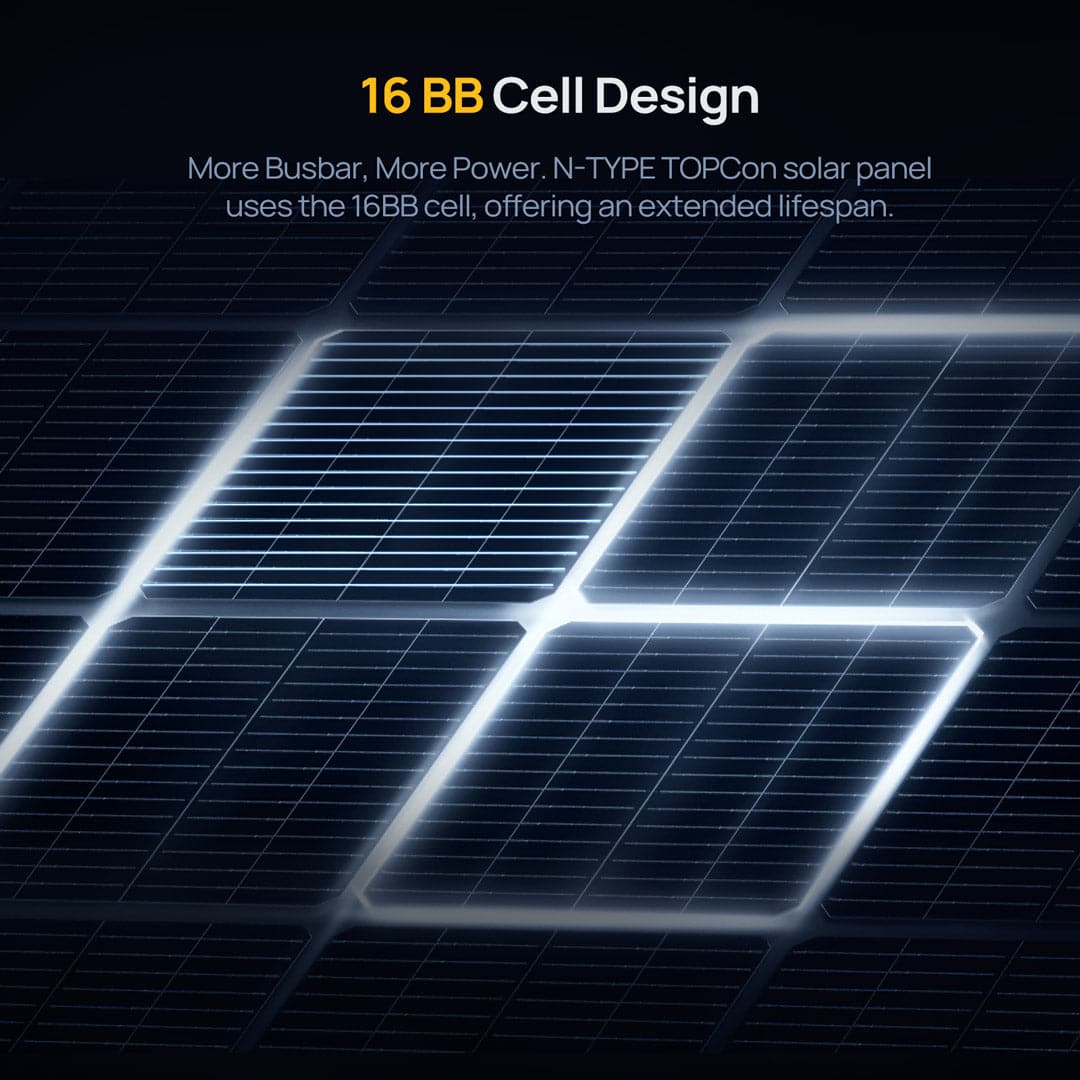

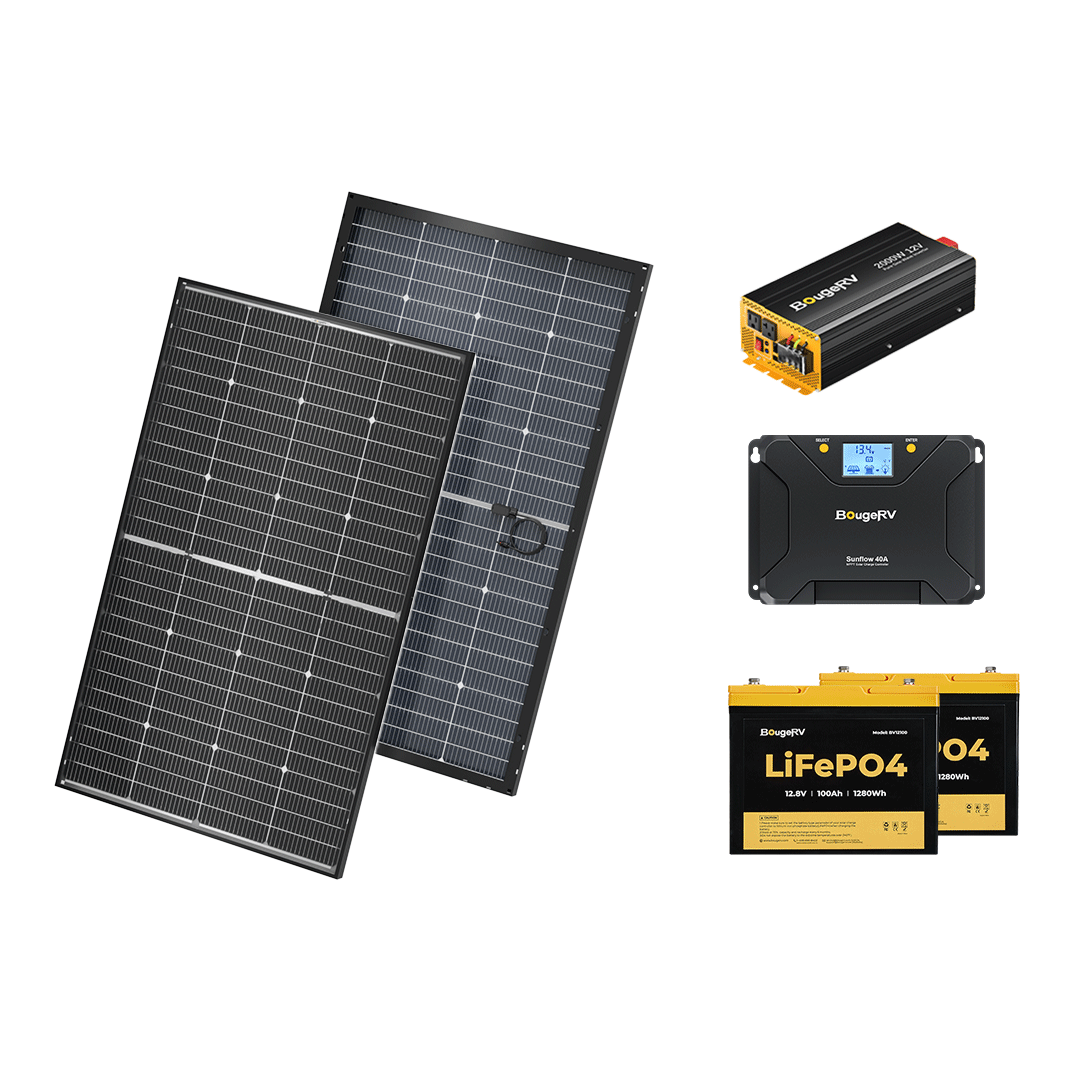

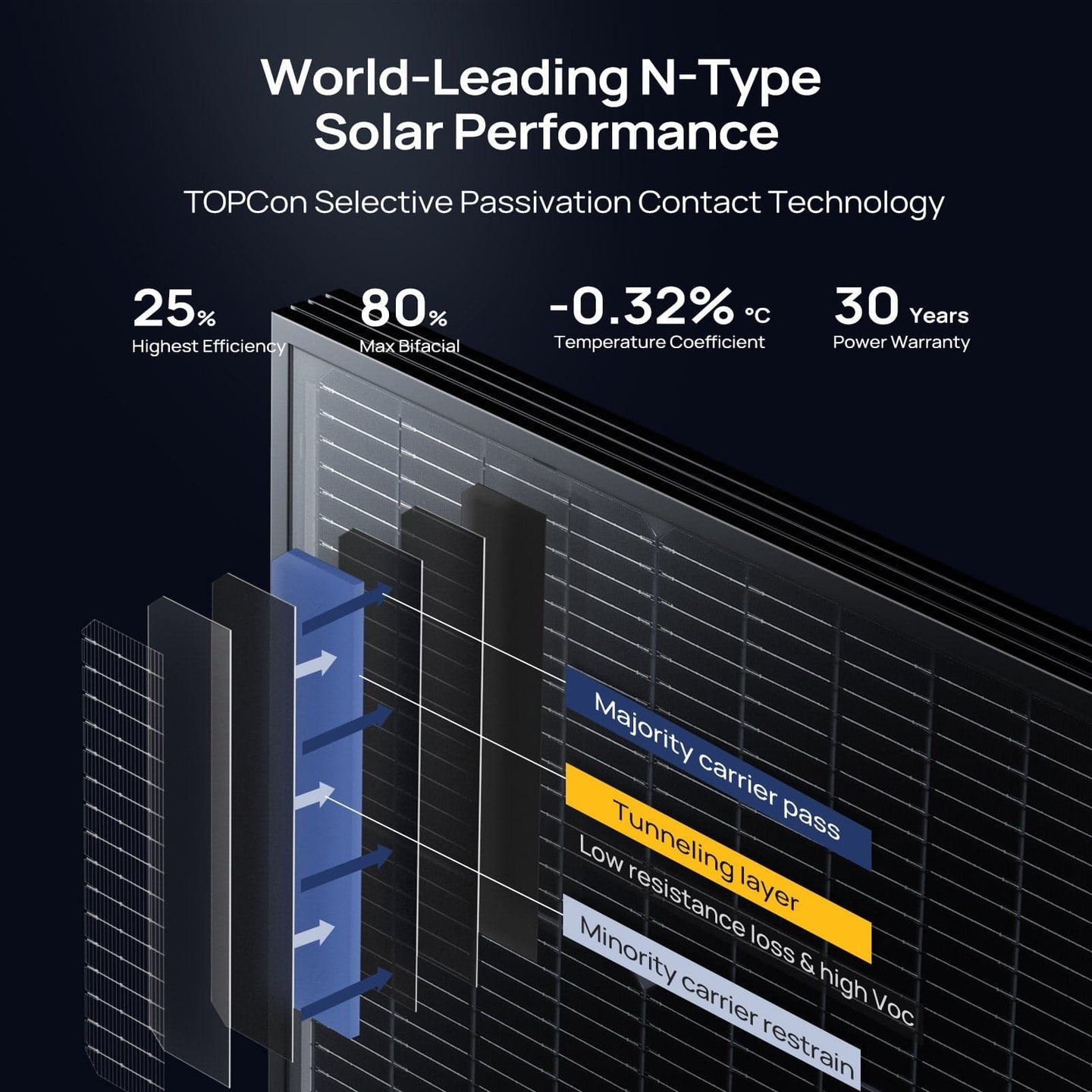

The BougeRV 12V 400W TOPCon Rigid Solar Kit bundles two 200W 16BB N-Type bifacial solar panels, a Sunflow 40A MPPT solar charge controller, two 12V 100Ah Group 24 LiFePO4 batteries, and a 2000W 12V pure sine wave inverter into a single off-grid power system.

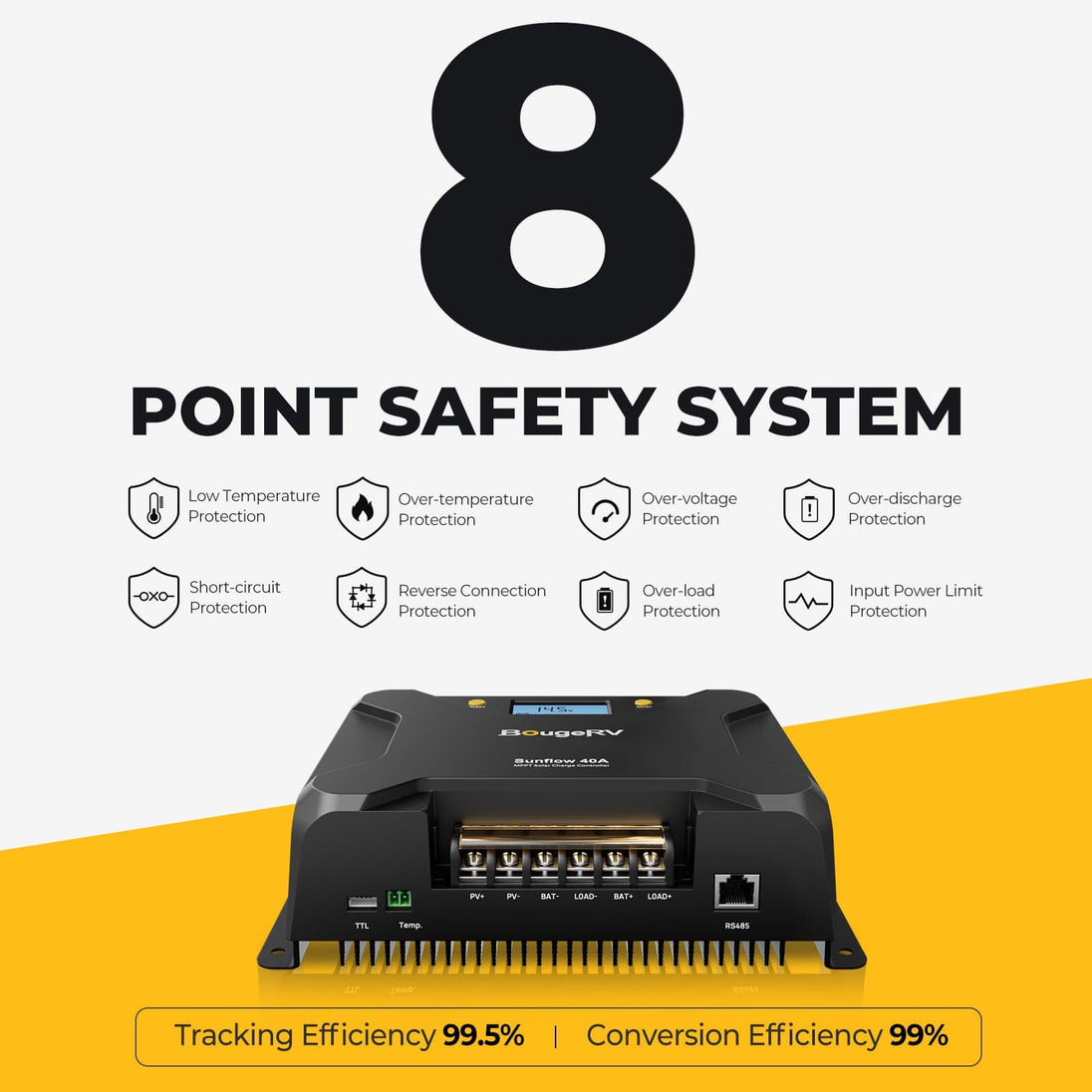

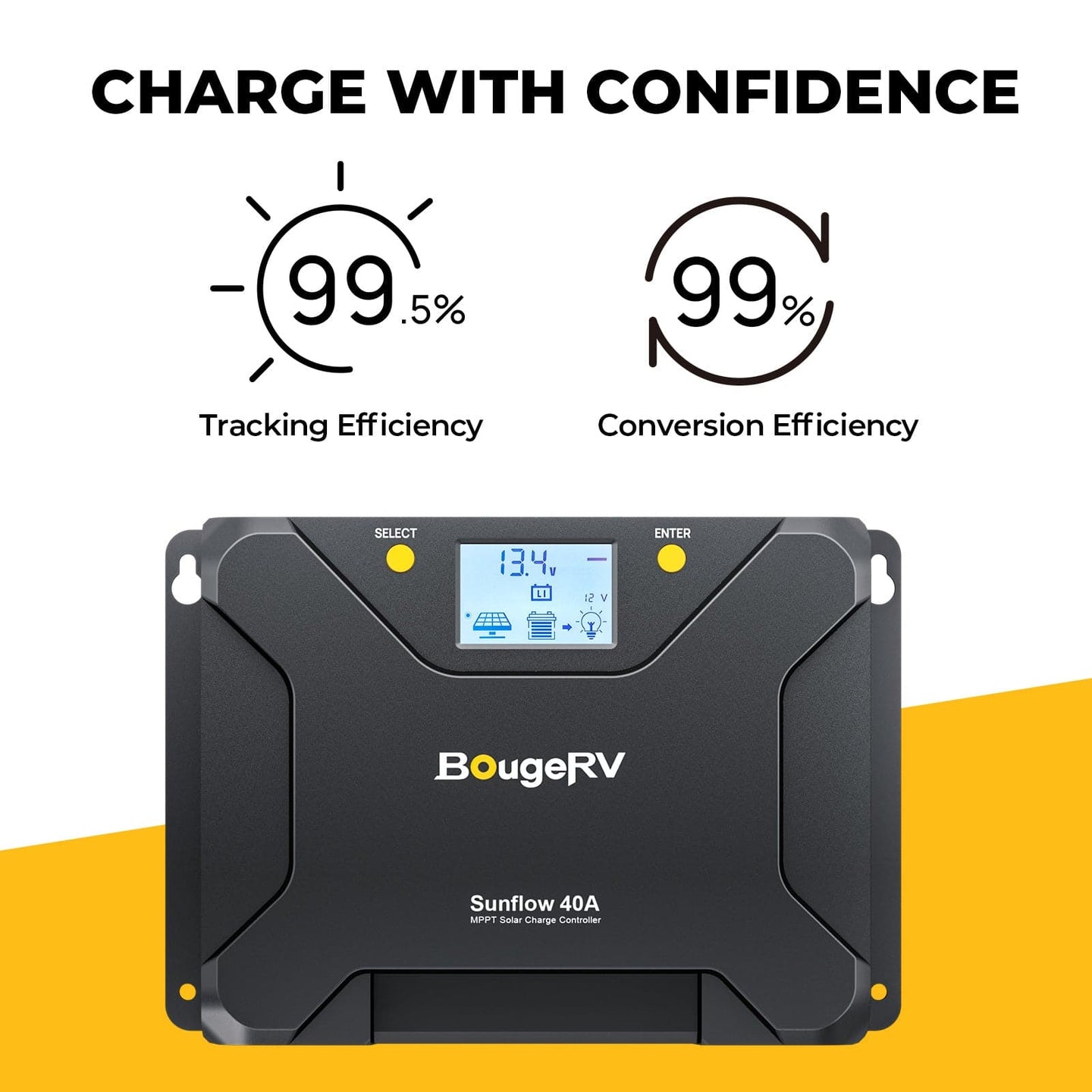

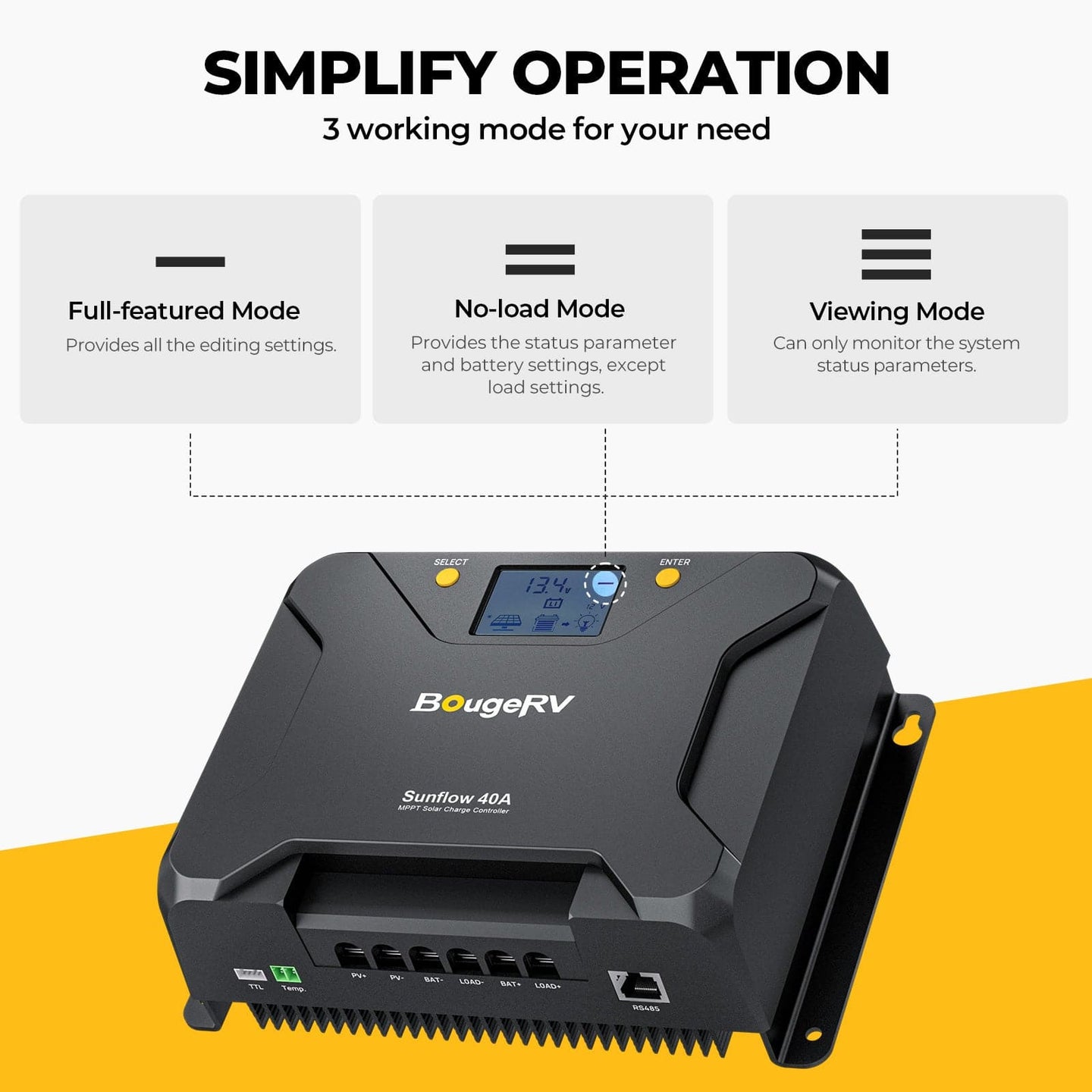

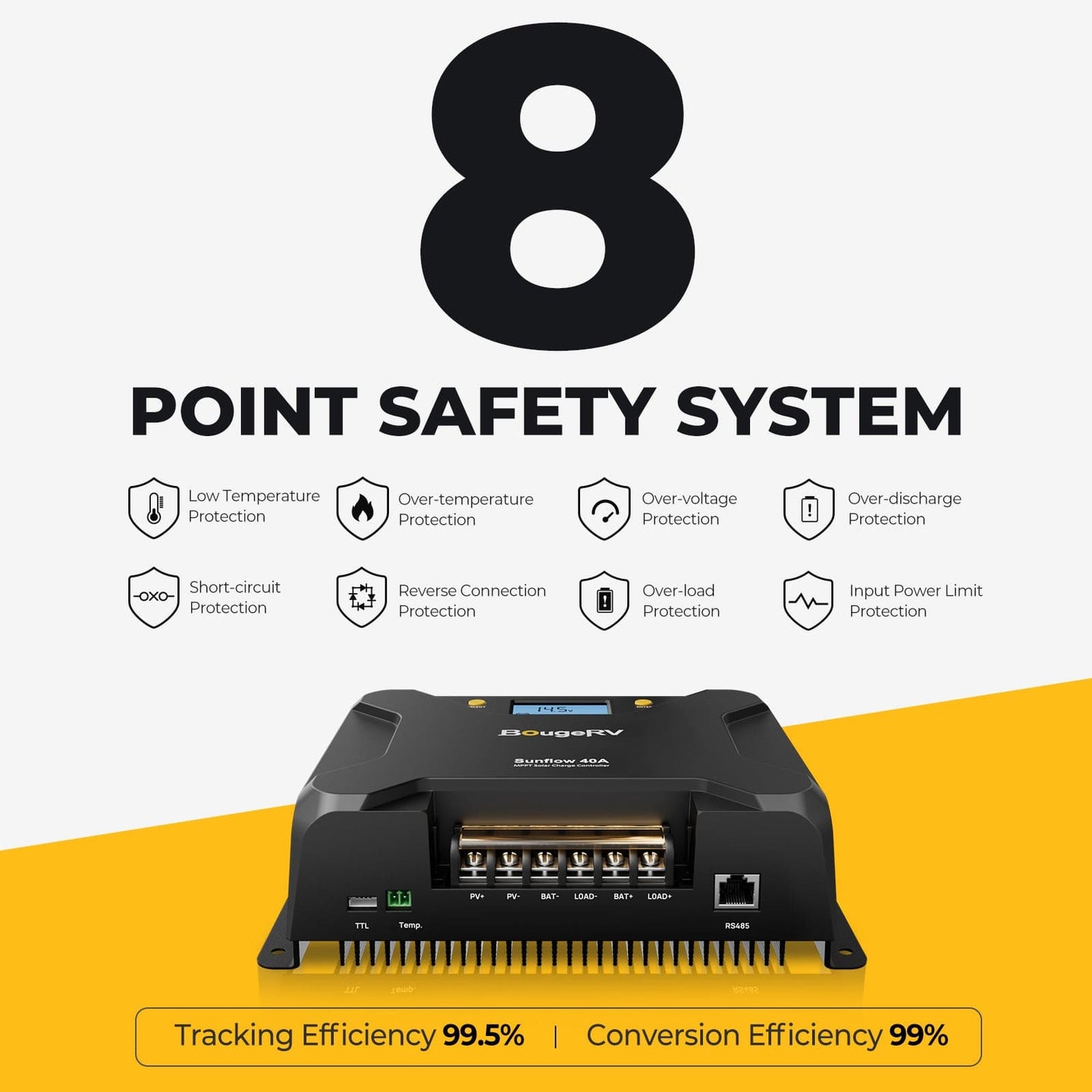

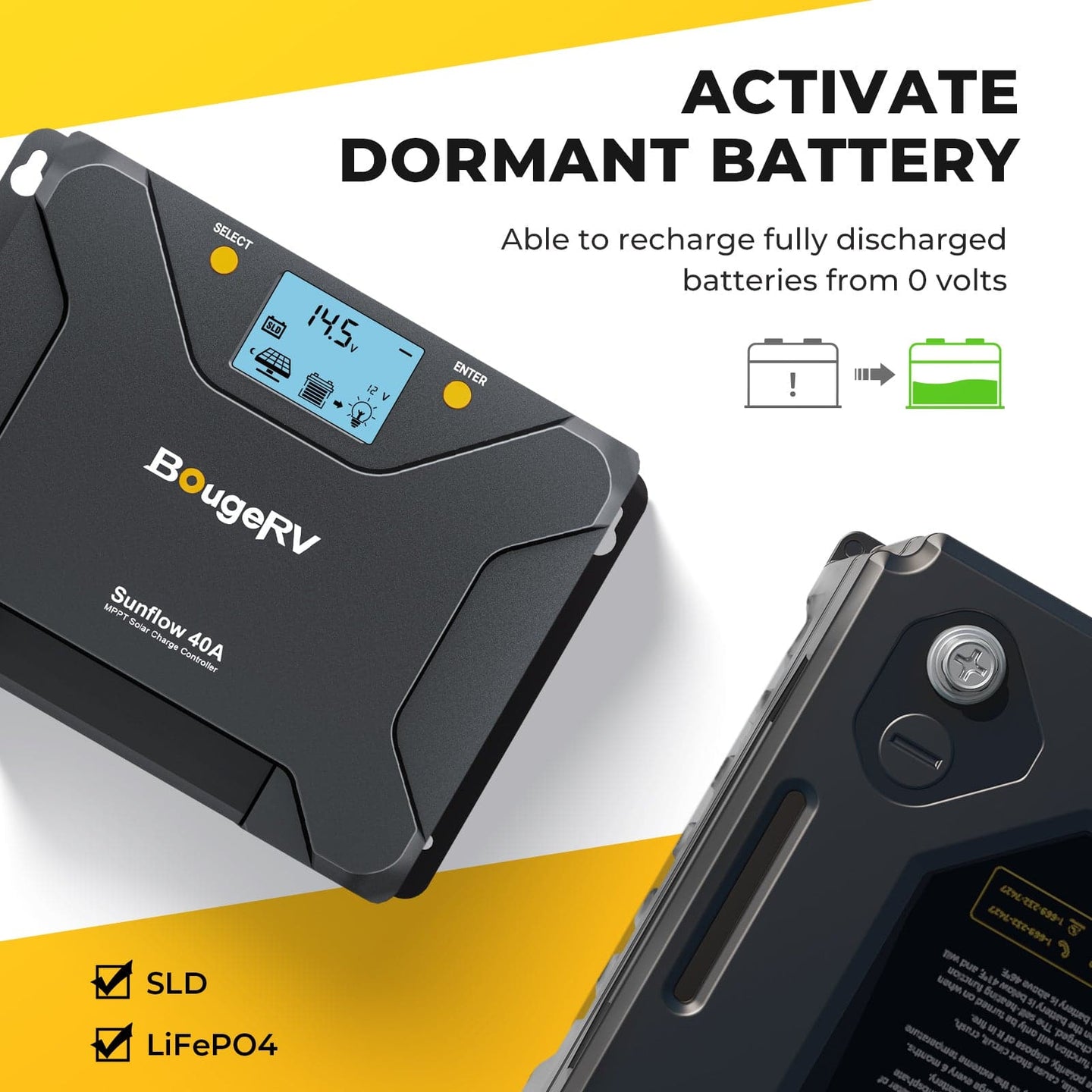

The Sunflow 40A MPPT charge controller is fully compatible with LiFePO4 batteries, with low-temperature cut-off charging below 32°F and the ability to restart or activate dormant 12V or 24V LiFePO4 batteries. It charges at up to 99.5% tracking efficiency and 99% peak conversion efficiency, with a dual MOS circuit and six protections (over-temperature, open-circuit, short-circuit, overload, polarity reverse, and backward current flow), and is CE and RoHS certified.

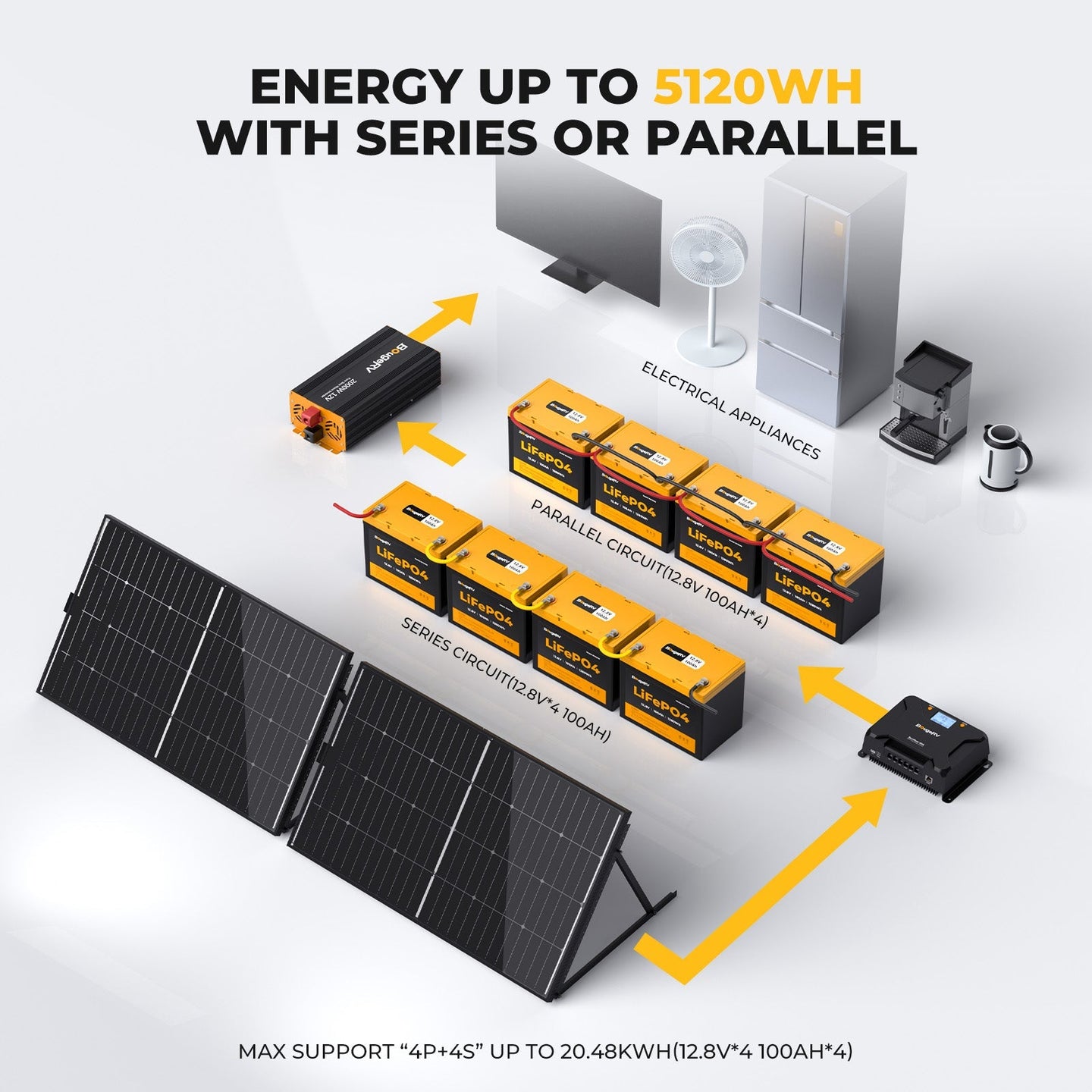

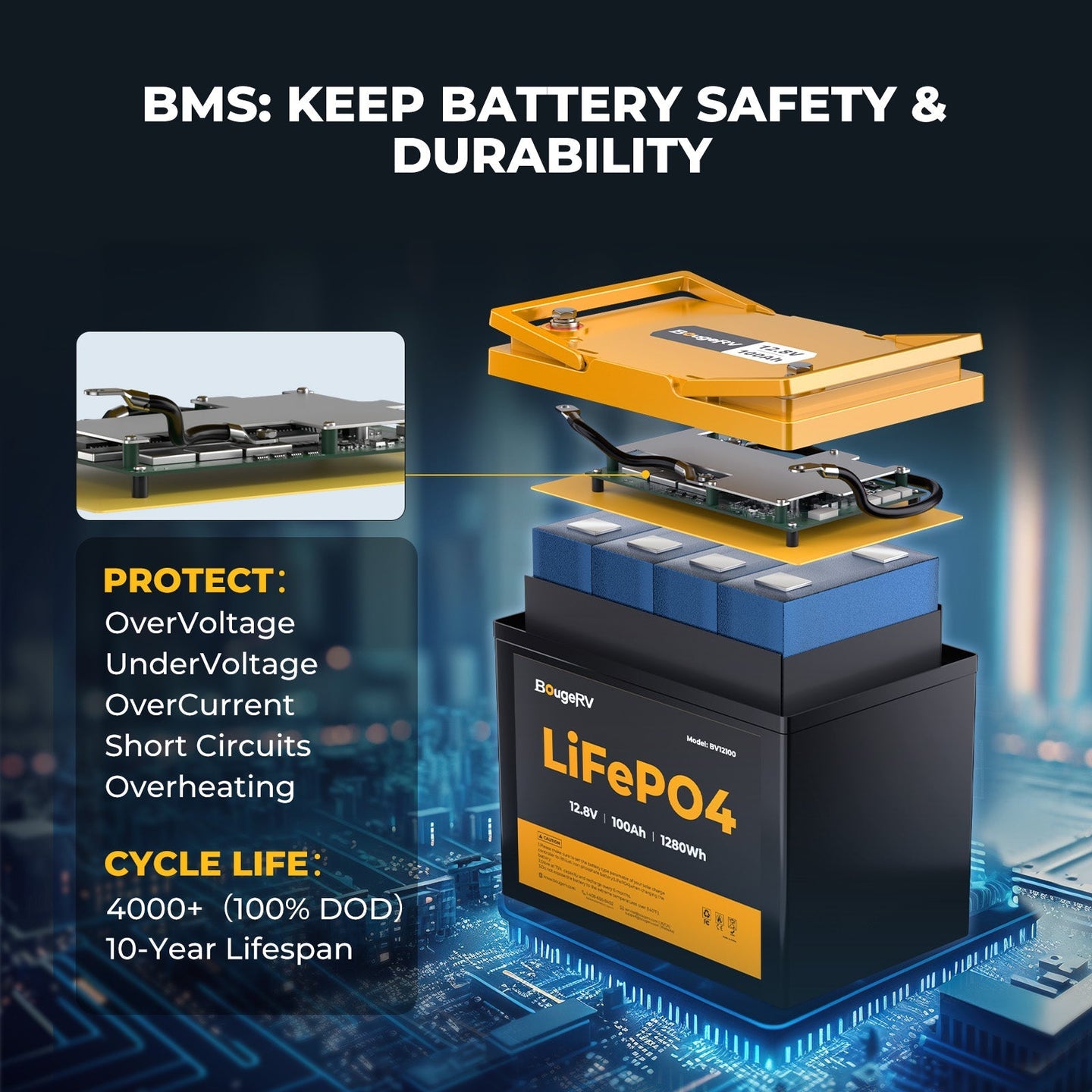

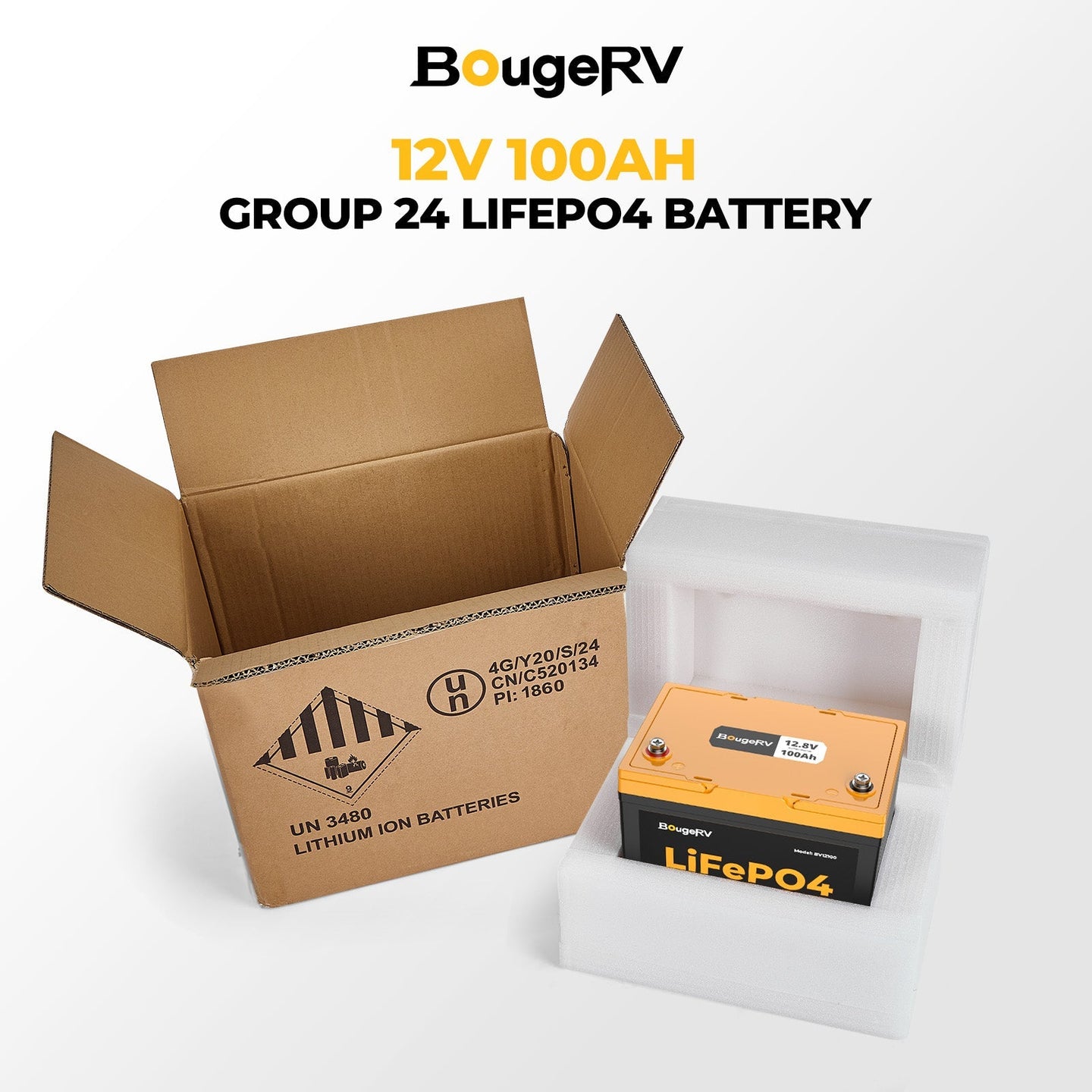

The Group 24 12V 100Ah LiFePO4 battery offers 4,000-15,000 recharge cycles with a lifespan of more than 10 years under ideal conditions, an upgraded BMS for overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection, and can be expanded up to 16 batteries in a 4S4P series-parallel pack for a maximum capacity of 20,480 Wh. The 2000W pure sine wave inverter delivers full 2000W output with 15A/20A outlets, built-in Bluetooth monitoring through the BougeRV app (18-20m barrier-free range) plus a 19.7-foot wired remote controller, low distortion (≤5%) pure sine output, lithium battery soft startup protection, and intelligent temperature control via two high-speed cooling fans.

Features

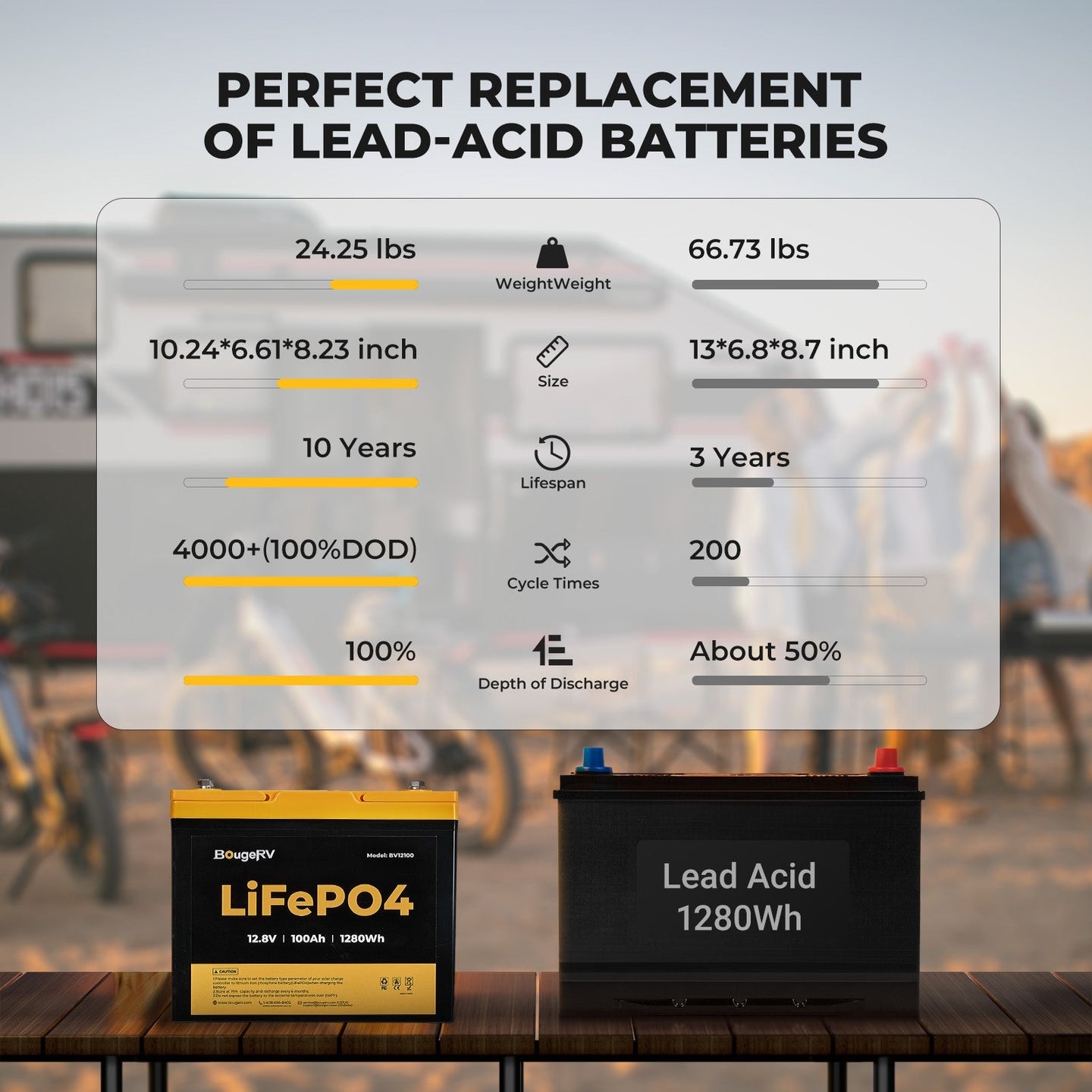

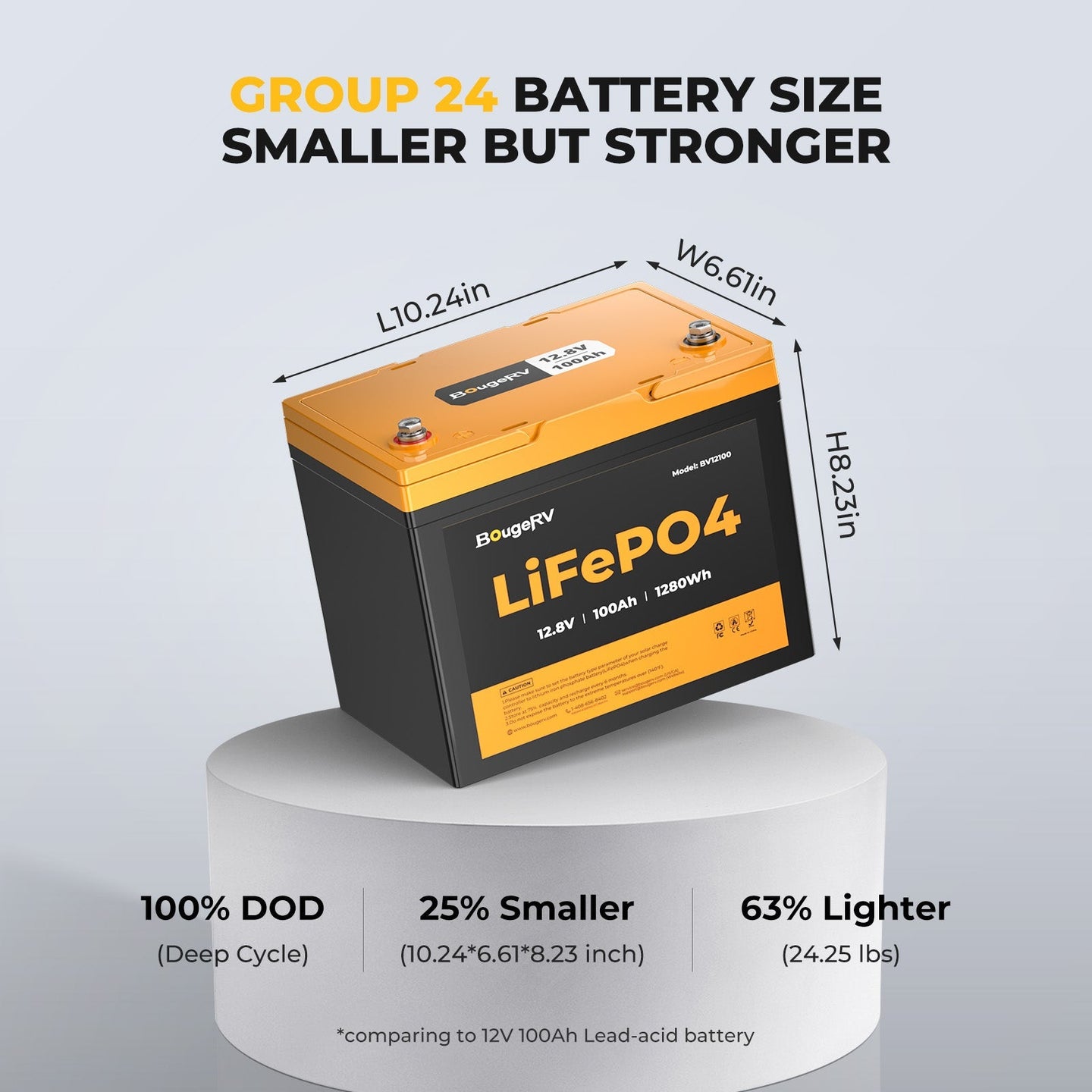

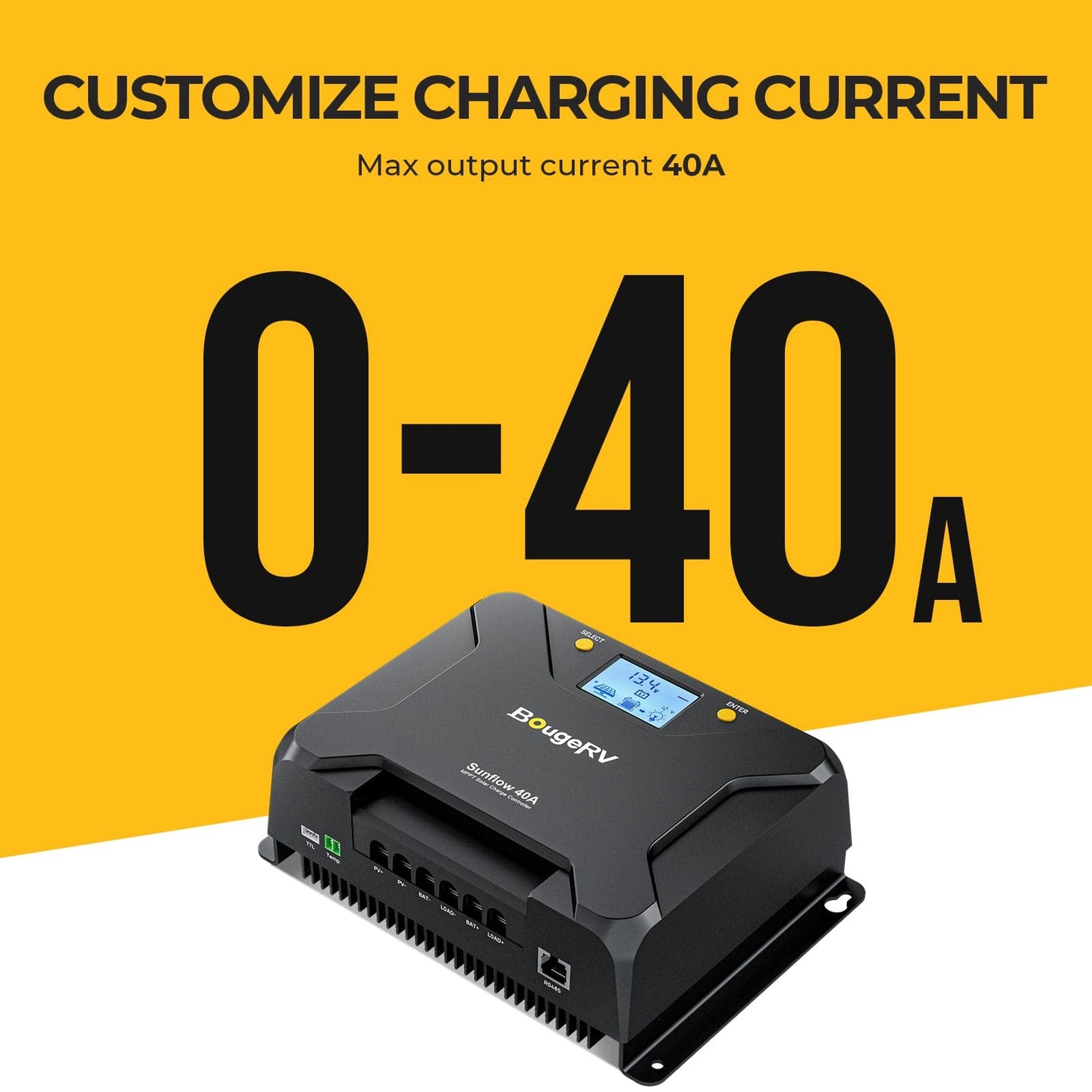

The Sunflow 40A MPPT solar charge controller adjusts charge current from 0A to 40A, uses a quality aluminum heat sink to dissipate heat and minimize power loss under full load, and includes low-temperature battery protection that reduces or turns off current input below 32°F and resumes charging at 35.6°F. The Group 24 LiFePO4 battery measures L10.24" x W6.61" x H8.23" and weighs 24.25 lbs, lighter than a comparable 66 lb lead-acid battery, while supporting full charge and discharge (100% DOD) with a charge cycle count far higher than lead-acid batteries. The pure sine wave inverter includes lithium battery soft startup protection to prevent frequent disconnection (note: if inverter surge current exceeds a battery's over-discharge current threshold, the battery's BMS protection may still trigger and prevent operation) and comes with 18-month tech support from the date of purchase.

Specifications

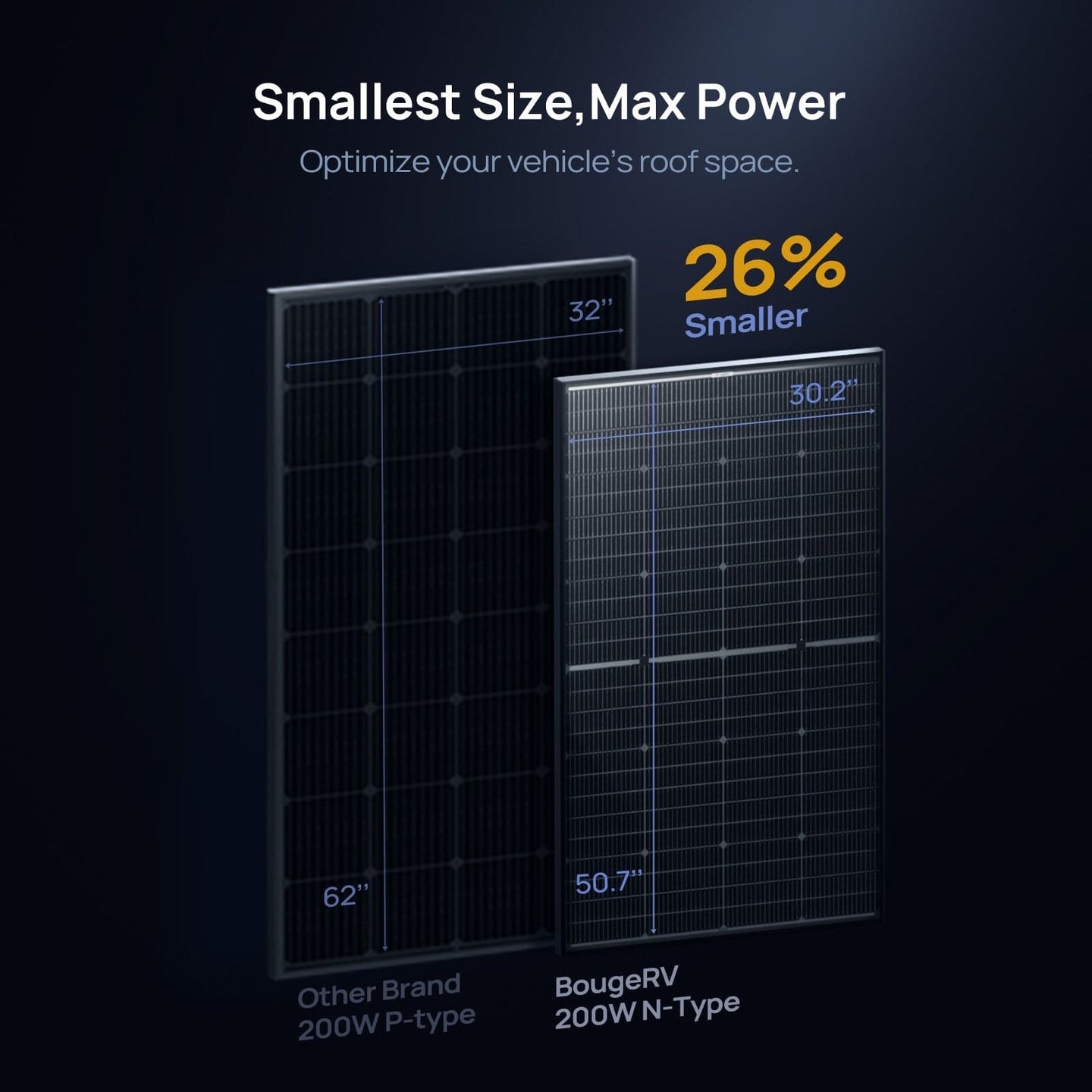

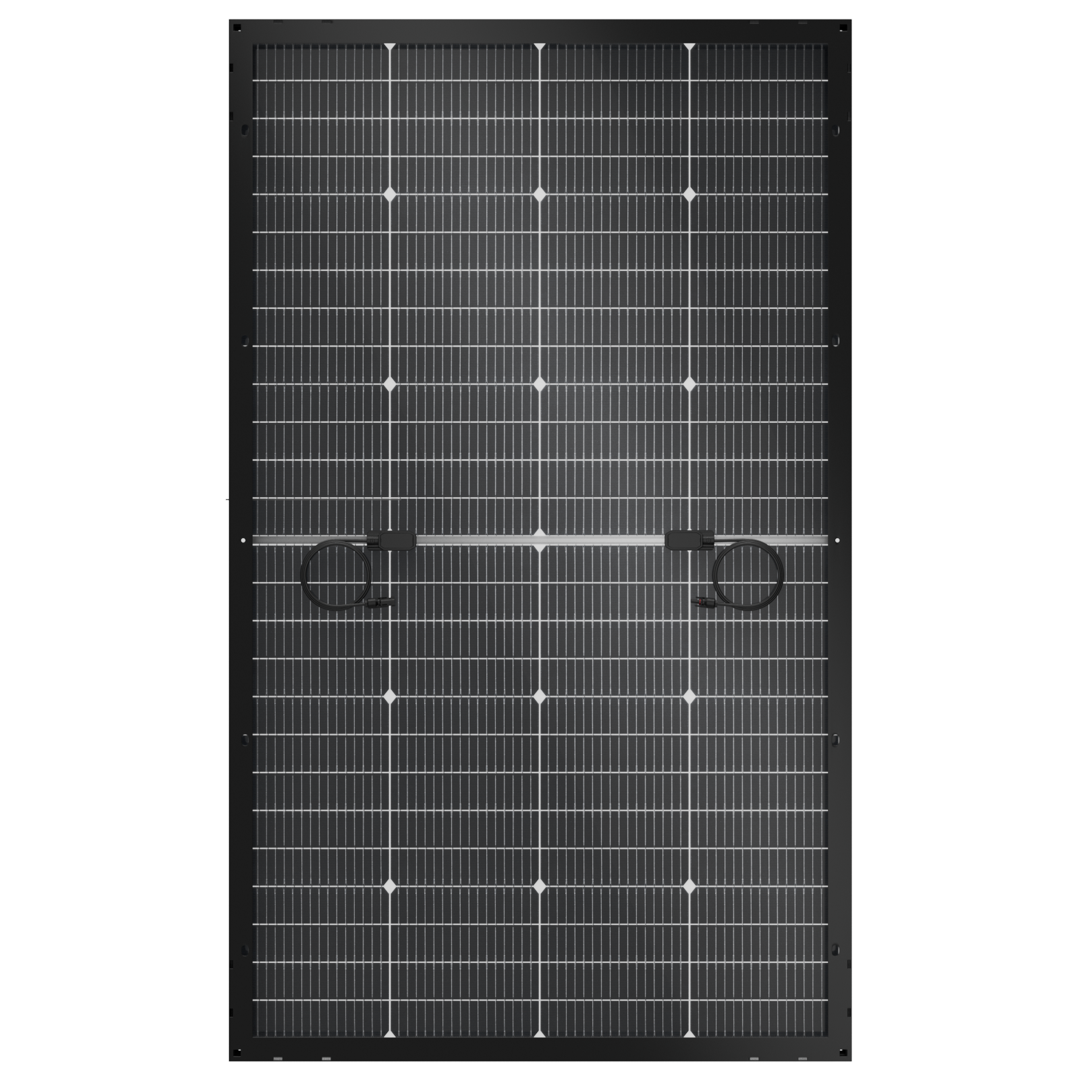

• Solar Panel (SKU ISE237) — Model: 200W Solar Panel; Maximum Power: 200±5% W; Open Circuit Voltage: 36.4±5% V; Max Power Voltage: 31.7±5% V; Max Power Current: 6.3±5% A; Short Circuit Current: 6.6±5% A; Solar Cells Efficiency: 25%; Weight: 22.5 lb; Product Dimension: 50.67x30.20x1.38 inches; Series Fuse Rating: 15A; Application Class: Class A; Max Static Load (front): 2400 Pa; Max Static Load (back): 2400 Pa; Max System Voltage: 1000V DC; Product Type: Bifacial Solar Panel; Product Warranty: 10 Years; Performance Warranty: 30 Years

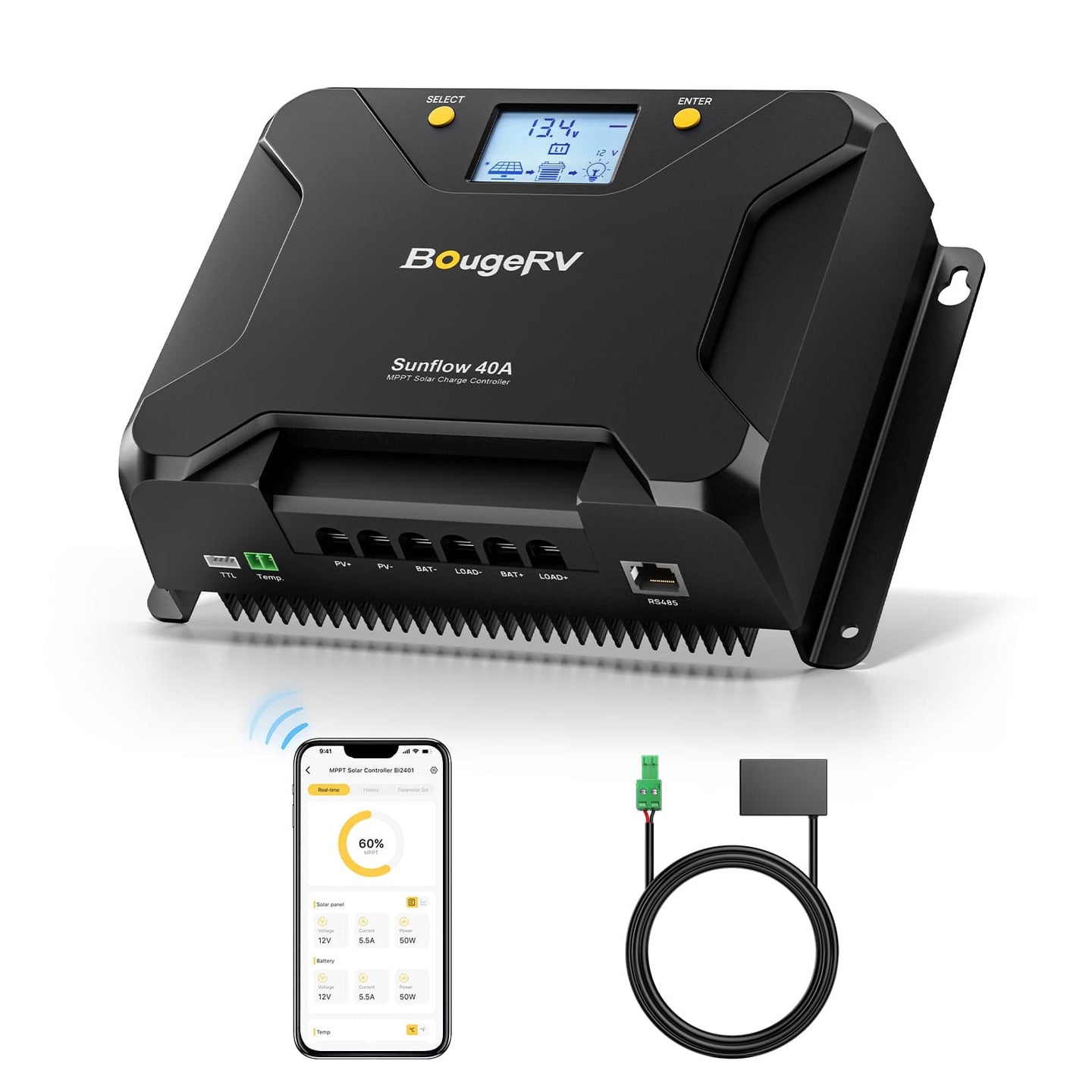

• Solar Charge Controller (SKU ISE218) — System Voltage: 12V/24V; Battery Type: LiFePO4, SLD, GEL, FLD, AGM, User Defined; Rated Charging Current: 40 Amp; Grounding Type: Common Negative; Maximum PV Input Voltage: 100V (95V protection, 90V recovery); Operating Temperature Range: -31°F to 149°F (-35°C to 65°C); Maximum Input of PV System: 600W/12V, 1200W/24V; Protection Grade: IP34; Rated Load Current: 20 Amp; Bluetooth Communication: built-in bluetooth; Charge Current Adjust Range: 0 Amp to 40 Amp; Data Storage: last 200 days of historical data; Battery Operate Voltage Range: 8V to 32V; Dimension: 8.94L x 6.26W x 2.95 inches; No Load Loss: ≤10mA; Weight: 3.95 lbs; Product Warranty: 18-month; Product Type: Solar Charge Controller
• Inverter (SKU ISE253) — Rated Output Power: 2000W; Peak Power: 4000W (1s); Output Voltage: 110VAC/120VAC (default); Output Frequency: 50/60 Hz (default); Rated Input Voltage: 12VDC; Input Voltage Range: 10V-15.5VDC; Output Waveform: Pure sine wave; Maximum Output Efficiency: >90%; Full Load Efficiency: >86%; Battery Low Voltage Alarm: 10.5VDC (±0.3V); Over-Discharge Voltage: 10VDC (±0.3V); Overvoltage: 15.5VDC (±0.3V); Operating Ambient Temperature Range: -40°F~185°F (-40°C~85°C); Storage Temperature Range: -40°F~176°F (-40°C~80°C); Noise: ≤60dB; Communication Port: RS485 + inbuilt Bluetooth; Fan Start-up Temp: ≥113°F (45°C)/≥50% load; USB Port: 18W x1 (5V-3A, 9V-2A, 12V-1.5A); Output Harmonic Component (THD): <4%; Over-temperature Protection Recovery: ≤158°F (70°C); No-load Loss: <0.7A; Over Temperature Protect: ≥176°F (80°C); Product Size: 17.59*6.65*3.98 in; Weight: 8.6 lb

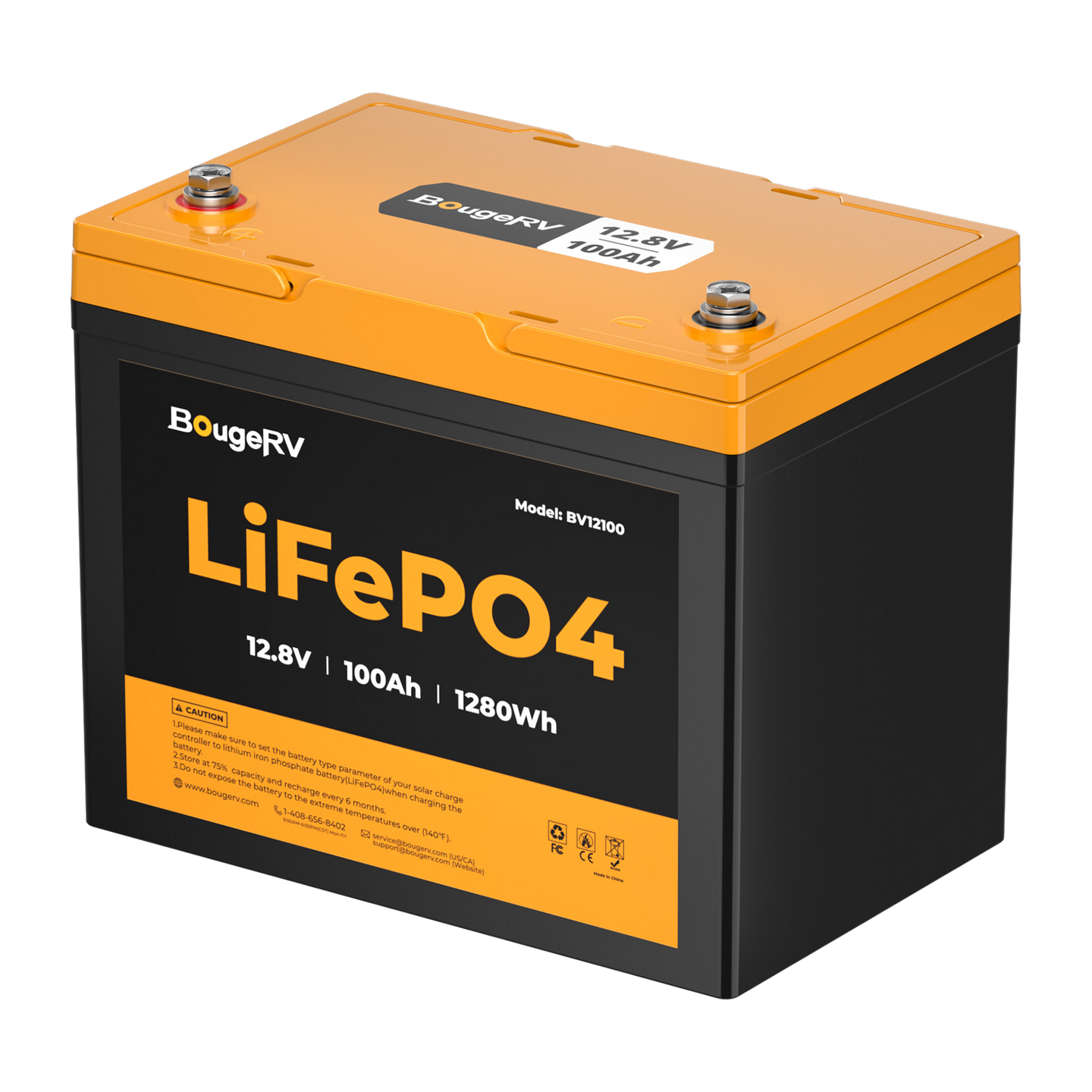

• Battery (SKU ISE212N) — Nominal Voltage: 12.8V; Nominal Capacity: 100Ah; Charge Voltage: 14.4~14.6V; Energy: 1280Wh; Standard Charge: 20A (0.2C, recommended); Maximum Charge: 100A (1C); Maximum Continuous Charge Current: 100A (25°C, 77°F); Maximum Continuous Discharge Current: 100A (1C); Maximum Discharge Current: 330A (2.5s); Over-Charging Protection Voltage: 14.6V; Over-Charging Recovery Voltage: 14.0V; Over-Discharging Protection Voltage: 8.8V; Over-Discharging Protection Recovery Voltage: 10.4V; Charge Temperature Range: 0°C~65°C (32°F~149°F); Discharge Temperature Range: -20°C~75°C (-4°F~167°F); Cycle Life: 4000 times (25°C, 0.2C, 100% DOD); Low Temperature Charging Protection: 0°C (32°F), resumes at 2°C (35.6°F); Short Term Storage Temp: -20°C~45°C (-4°F~113°F); Long Term Storage Temp: 10°C~35°C (50°F~95°F); Maximum Series Voltage Of Battery Pack: 48V (4S); Maximum Parallel Current Of Battery Pack: 400Ah (4P); Charge Method: CC/CV; Item Dimension: L10.24*W6.61*H8.23 in; Item Weight: 24.25 lbs; Protection Rating: IP65; Product Warranty: 5 Years

Warranty

Solar panel: 10-year product warranty and 30-year performance warranty. Solar charge controller: 18-month product warranty. LiFePO4 battery: 5-year product warranty. Pure sine wave inverter: 18-month tech support from the date of purchase.
