BougeRV 12V 200W ShadePower Yuma CIGS Flexible Solar System Kit (Punched)

About

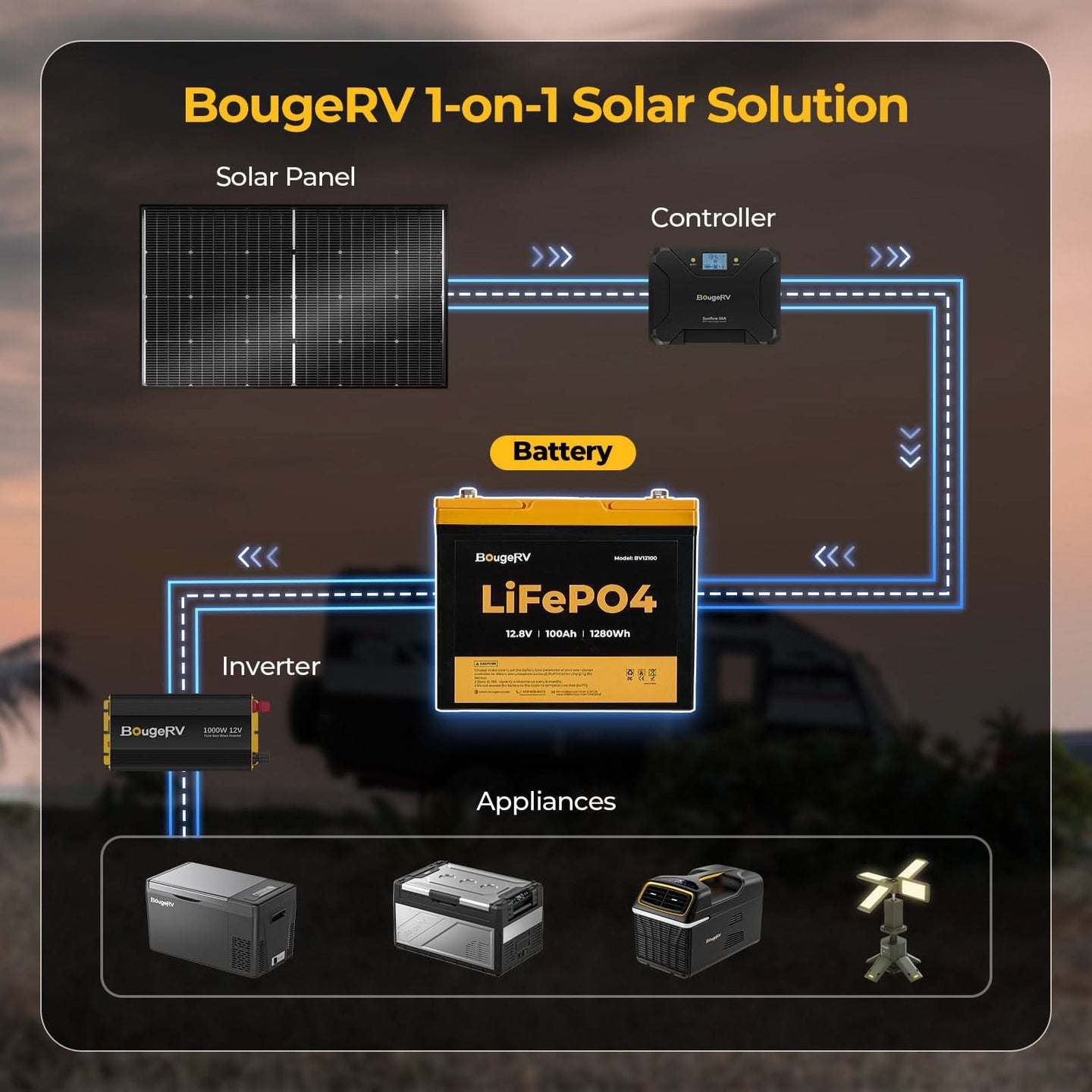

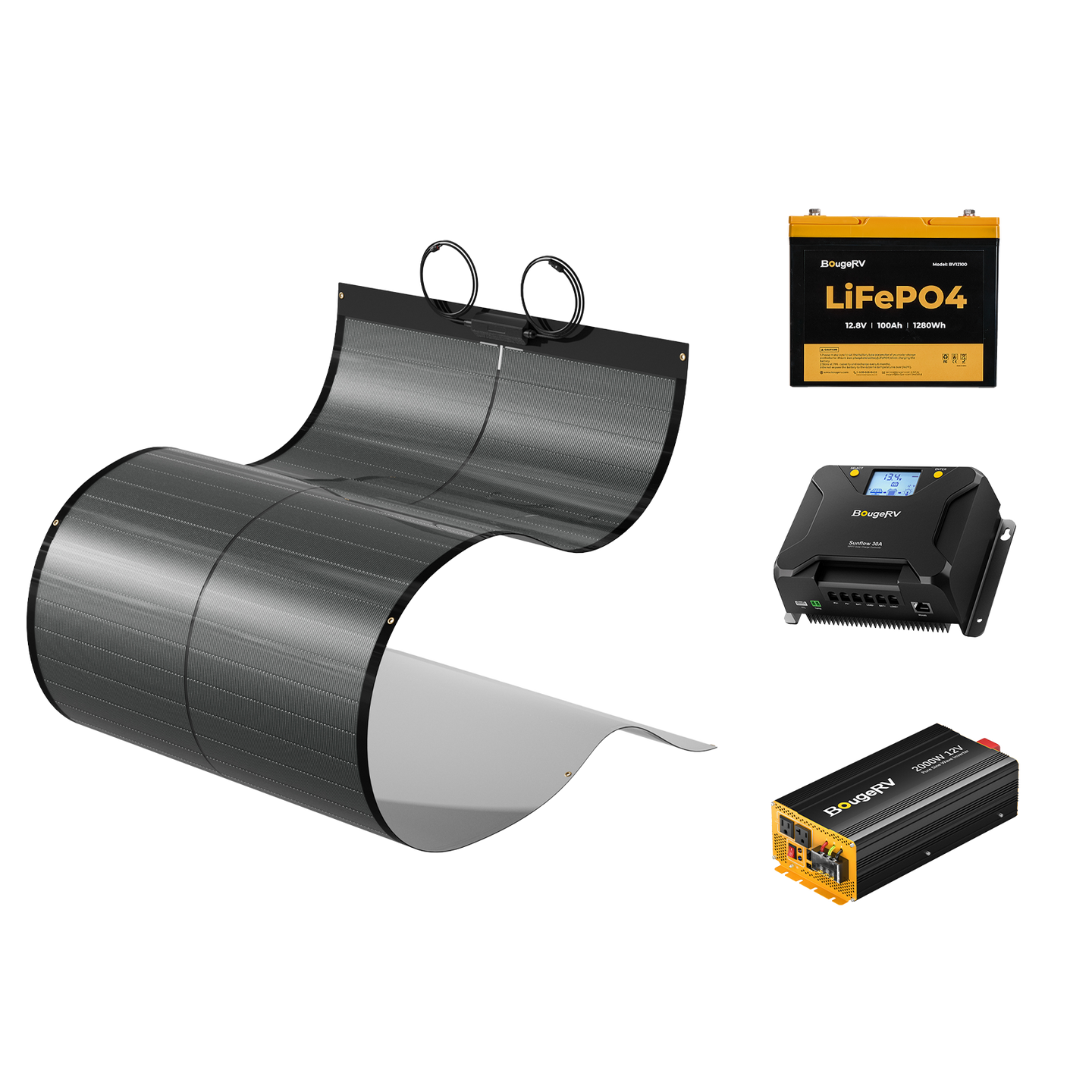

The BougeRV 12V 200W ShadePower Yuma CIGS Flexible Solar System Kit (Punched) is a complete off-grid power package built around a Yuma 200W CIGS thin-film flexible solar panel with pre-punched mounting holes, a 30A MPPT solar charge controller, a 2000W 12V pure sine wave inverter, and a 12V 100Ah Group 24 LiFePO4 battery.

The CIGS flexible panel can be rolled up for compact storage and transport and bent to fit curved surfaces without cracking. It is also proven to perform better than conventional monocrystalline panels in shaded conditions, producing 38% more power over the course of an 8-hour cloudy day.

The kit's 30A MPPT charge controller is fully compatible with LiFePO4 batteries, and the 2000W inverter delivers pure sine wave output that can be monitored remotely via Bluetooth through the BougeRV app or controlled with a 19.7-foot wired remote for RV and house installations.

Features

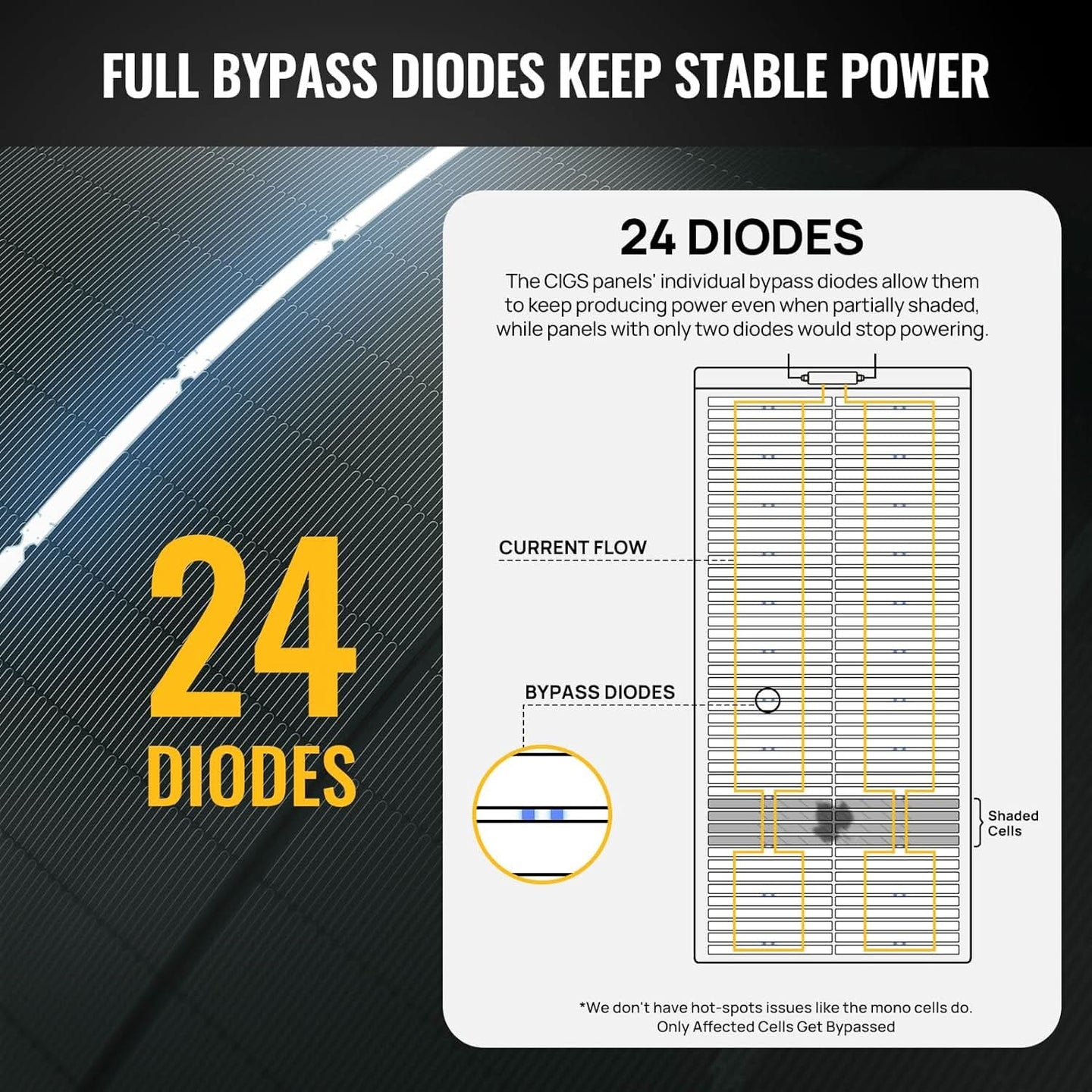

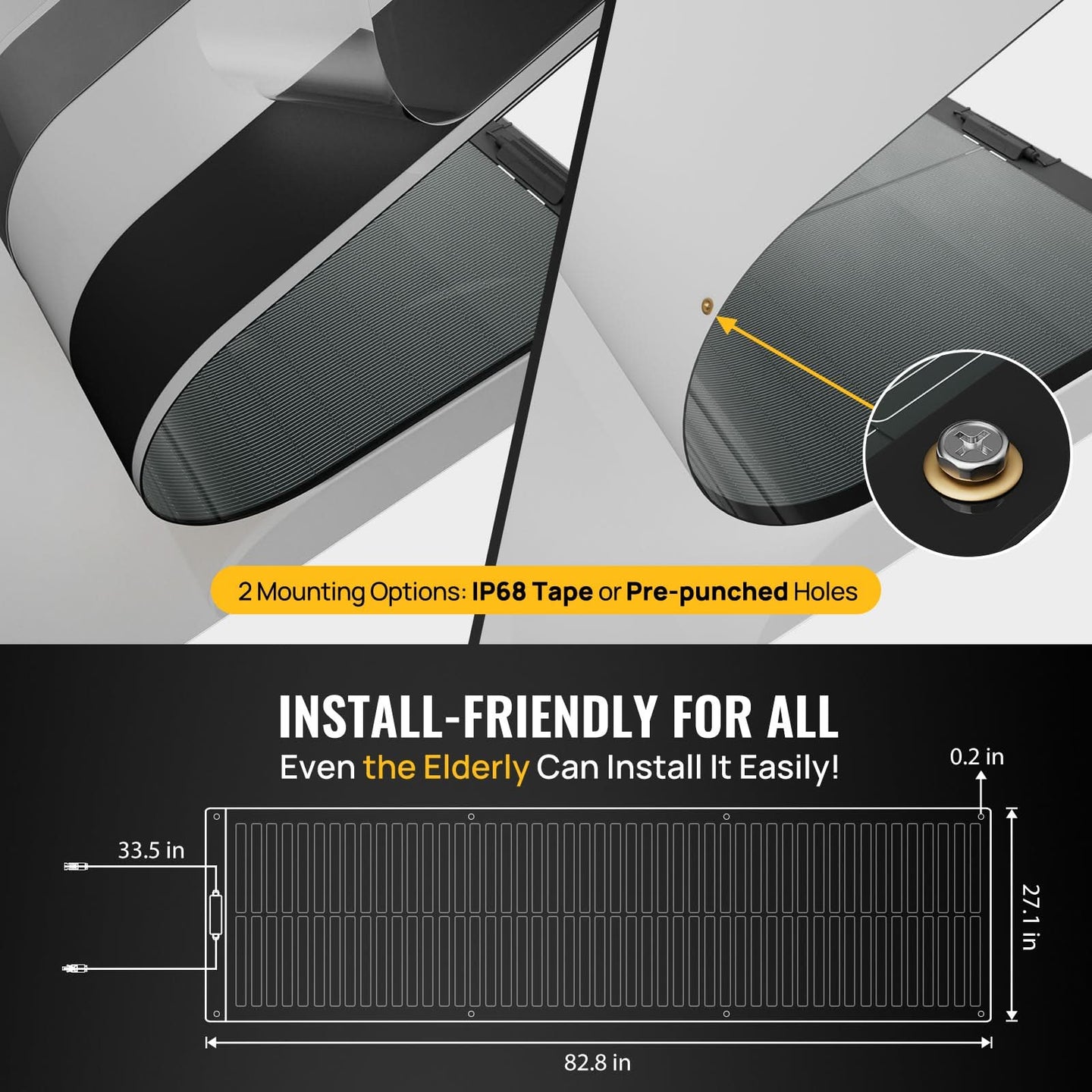

The Yuma 200W CIGS flexible solar panel is incredibly flexible, able to be rolled up for compact storage and bent to fit curved surfaces without cracking. It is lightweight and thin, requiring no additional mounting or aluminum frames, which improves aerodynamics and aesthetics. The CIGS cells are crack-resistant, unlike rigid monocrystalline cells, and the panel is built to remain functional even if partially damaged. It performs better than conventional monocrystalline panels in shaded conditions, producing 38% more power over an 8-hour cloudy day. This version features pre-punched mounting holes for installation.

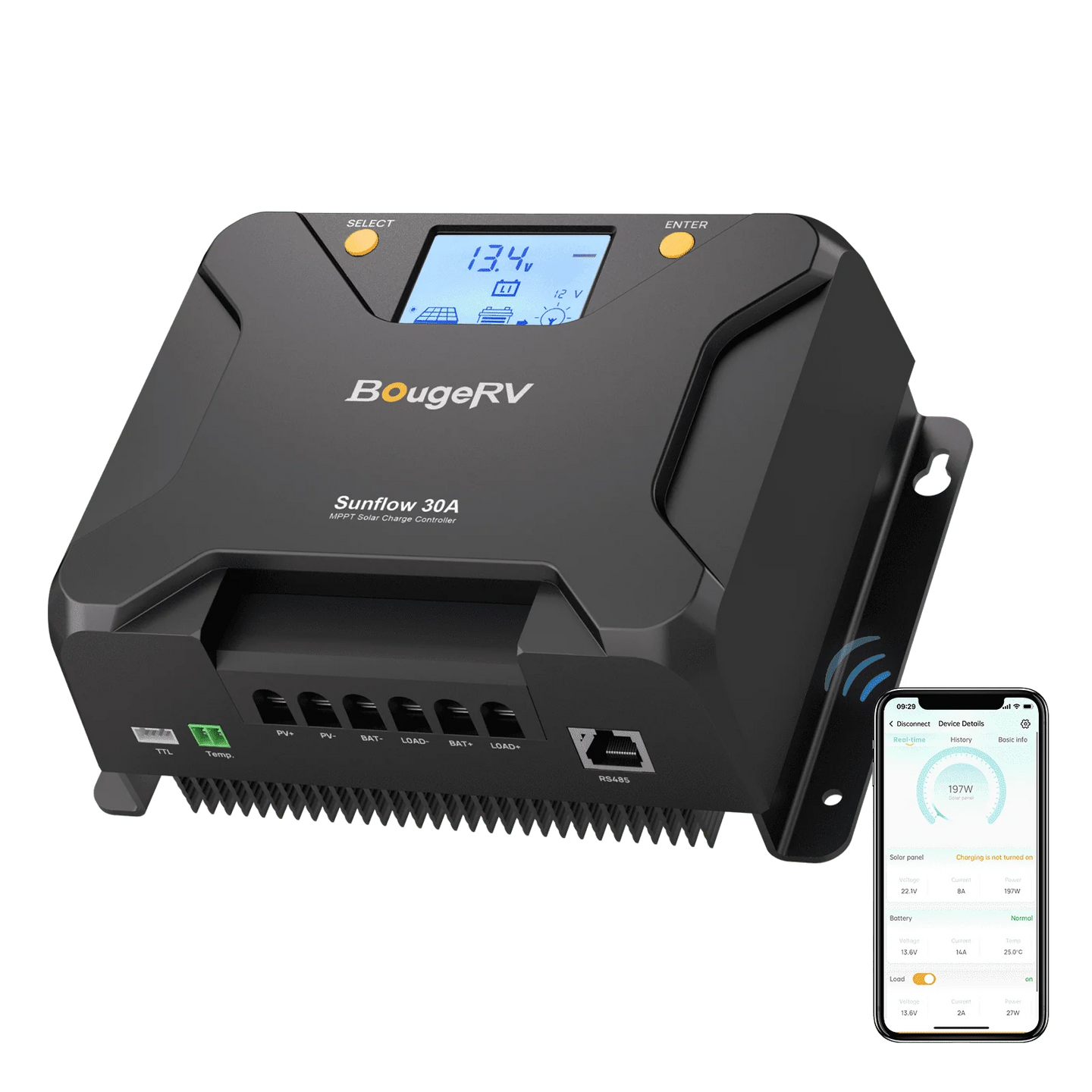

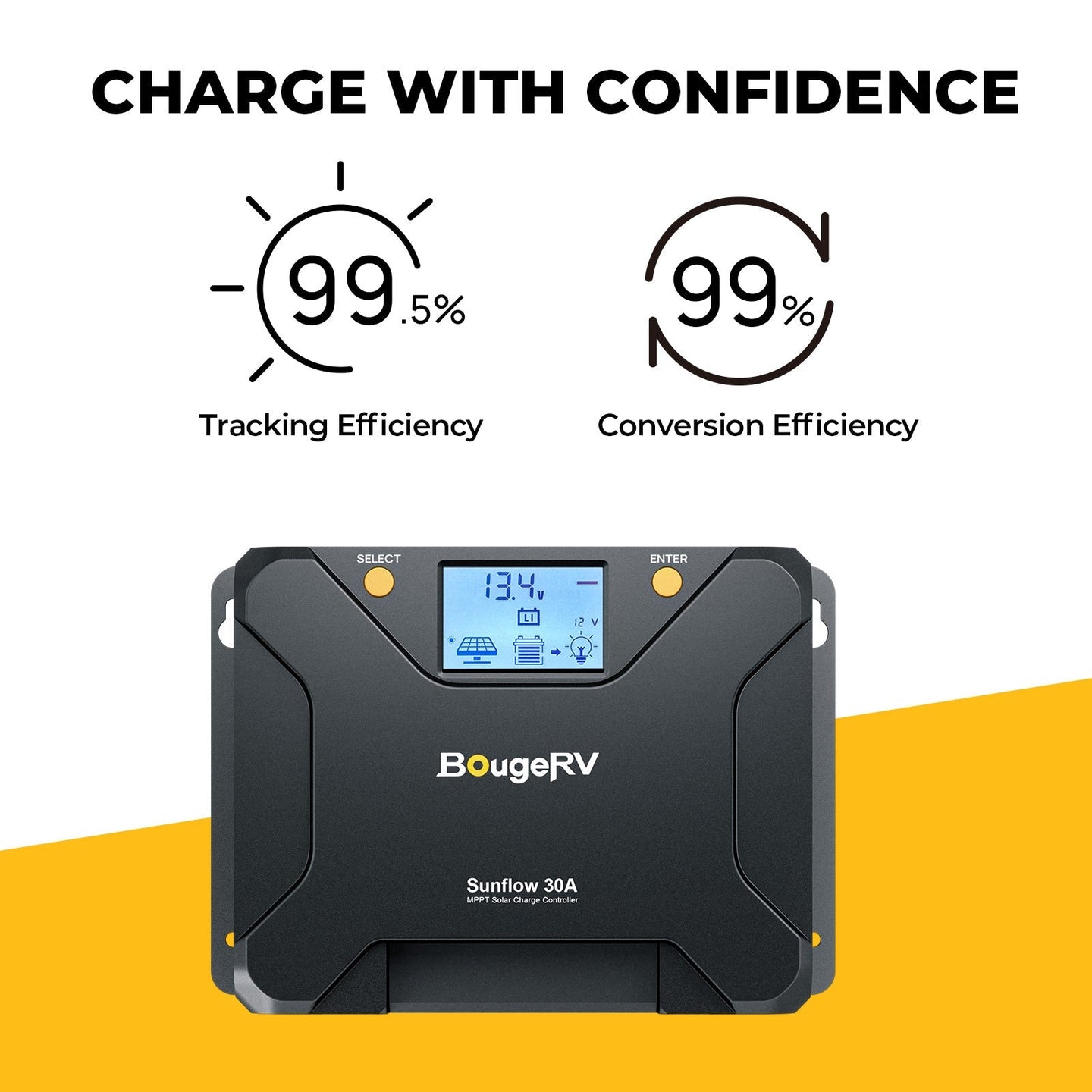

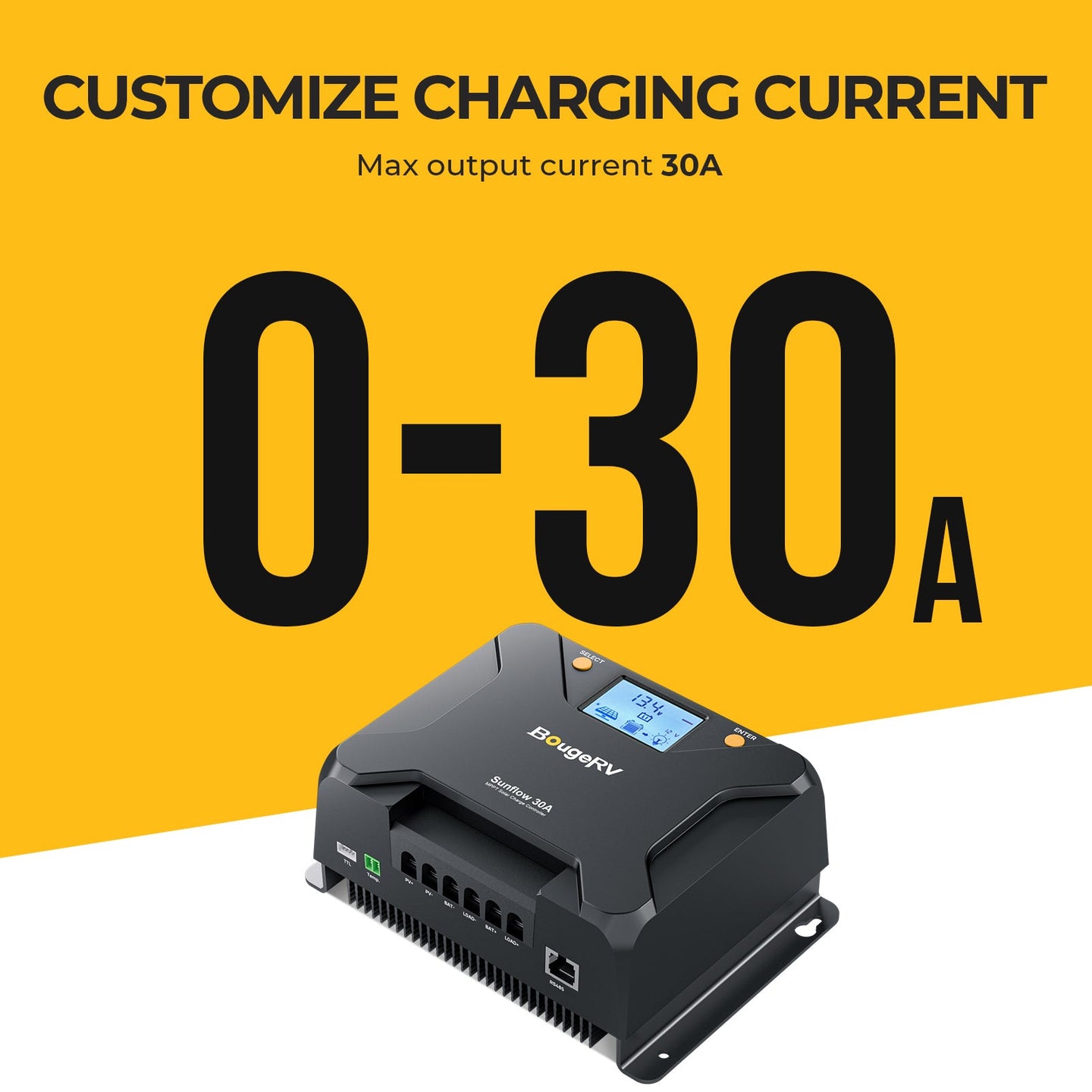

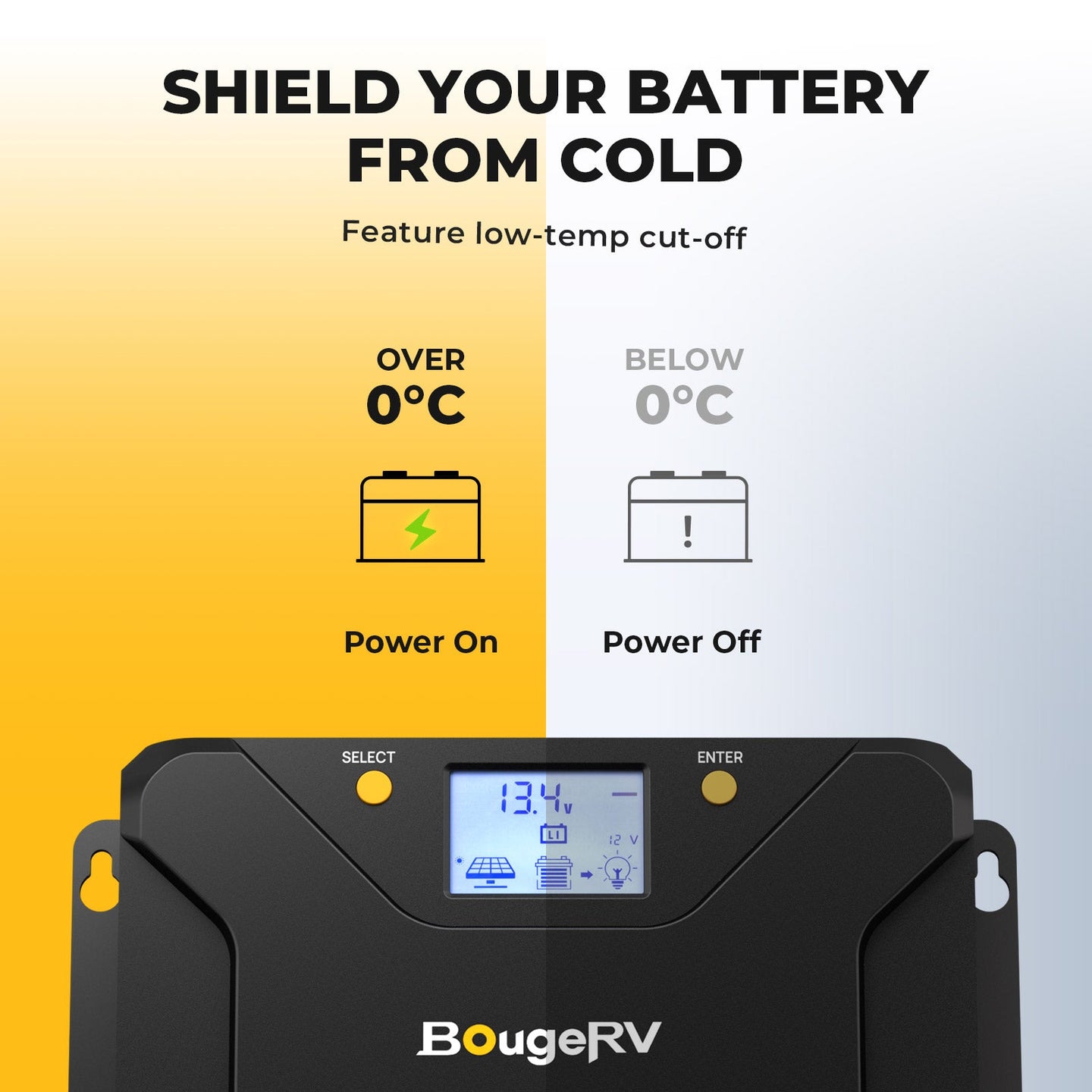

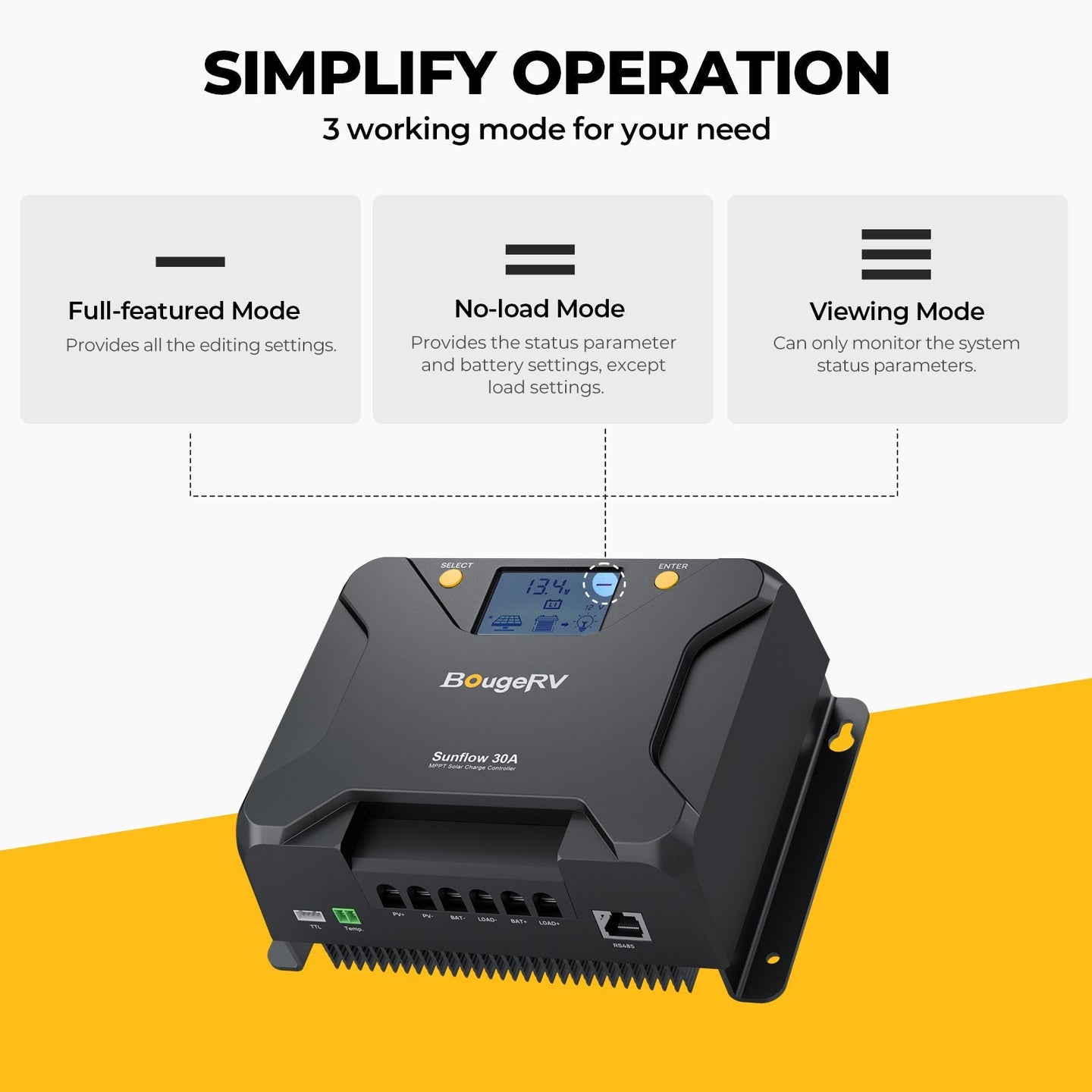

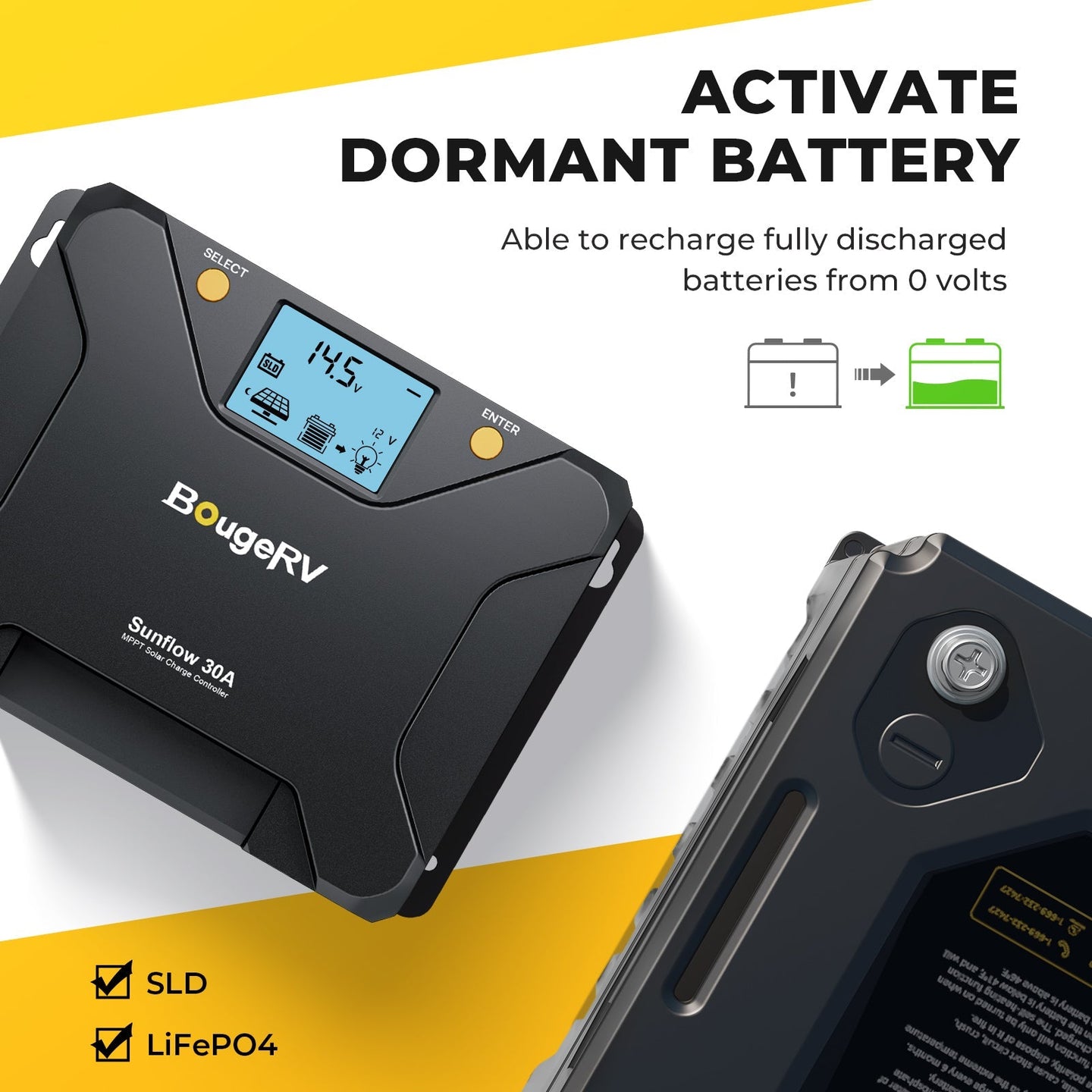

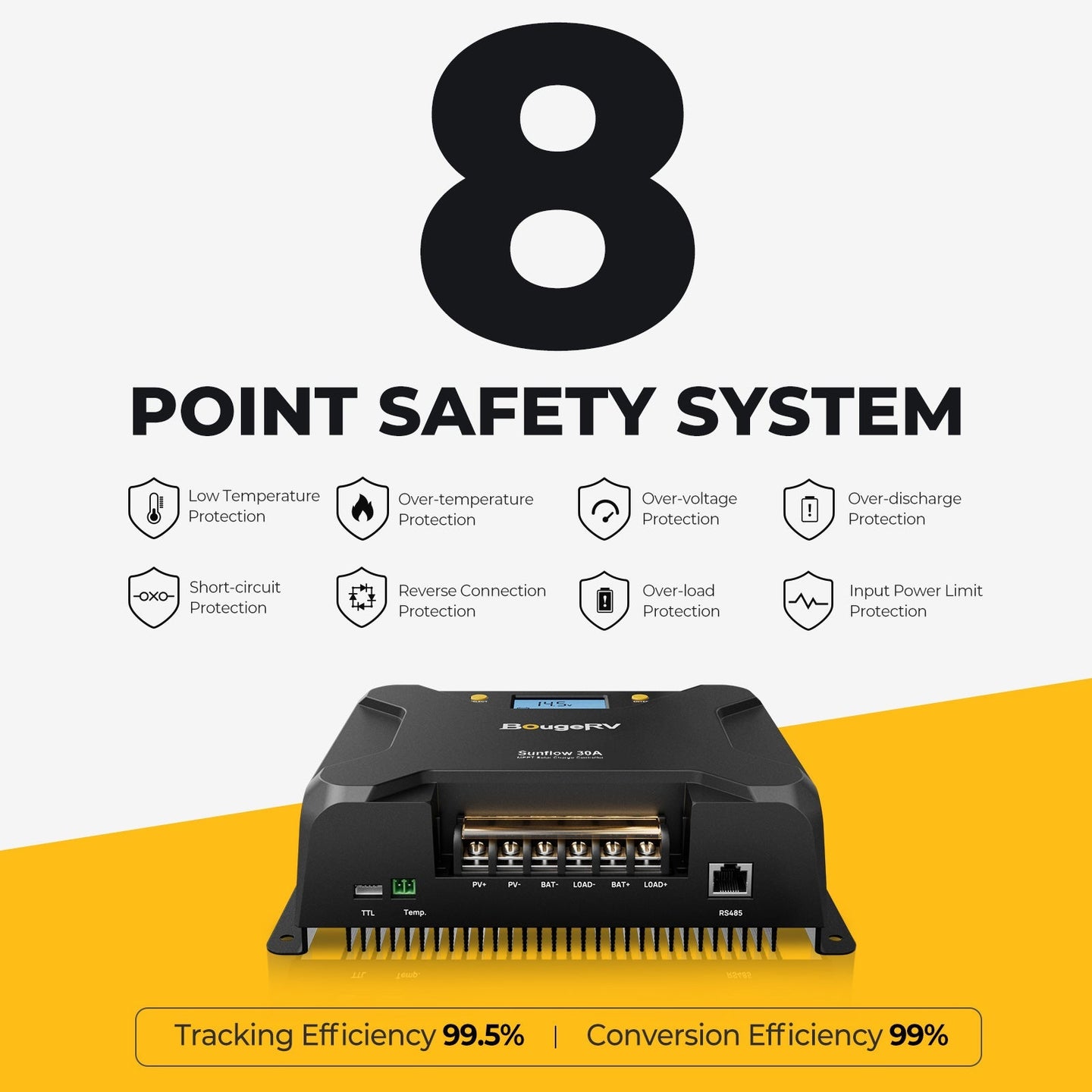

The Sunflow 30A MPPT charge controller is fully compatible with LiFePO4 batteries, including low-temperature cut-off charging below 32°F, and can restart or activate dormant 12V or 24V LiFePO4 batteries shut down due to short circuits or over-discharge. It adjusts charge current from 0A to 30A with tracking efficiency up to 99.5% and peak conversion efficiency up to 99%, using an aluminum heat sink to dissipate heat under full load. It is CE and RoHS certified with a dual MOS circuit to prevent reverse current, and includes protection against over-temperature, open-circuit, short-circuit, overload, polarity reversal, and backward current flow.

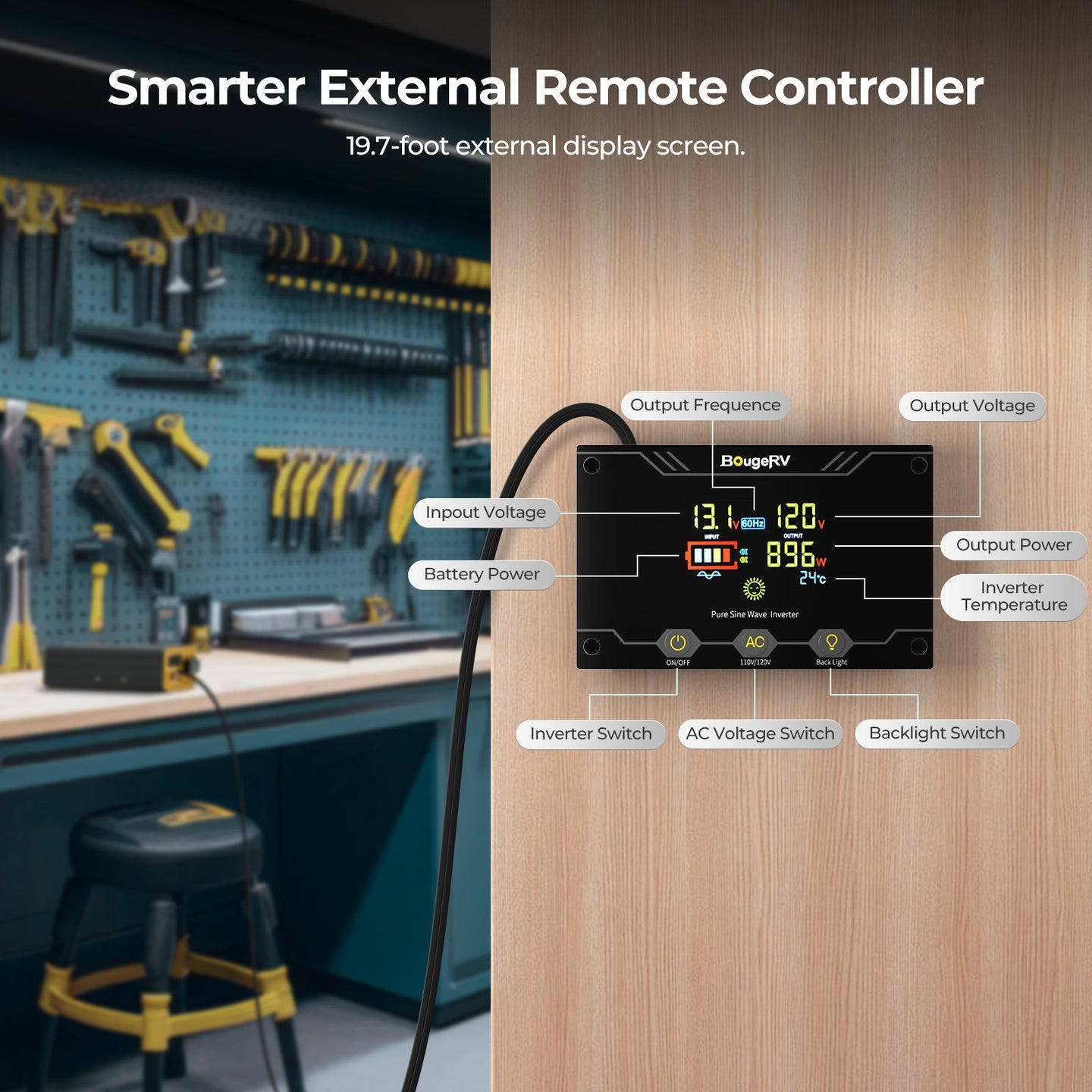

The 2000W pure sine wave inverter provides full 2000W output through 15A/20A outlets, with low distortion (≤5%) for sensitive electronics, lower power consumption, and high conversion efficiency. Built-in Bluetooth allows monitoring through the BougeRV app within an 18-20m barrier-free range, and a 19.7-foot wired remote controller allows installation in RVs and houses. Lithium battery soft startup protection improves compatibility with lithium batteries and helps prevent frequent disconnection. Two high-speed cooling fans provide intelligent temperature control, starting at 113°F or 50% output load, and the inverter is backed by 18-month tech support from the date of purchase.

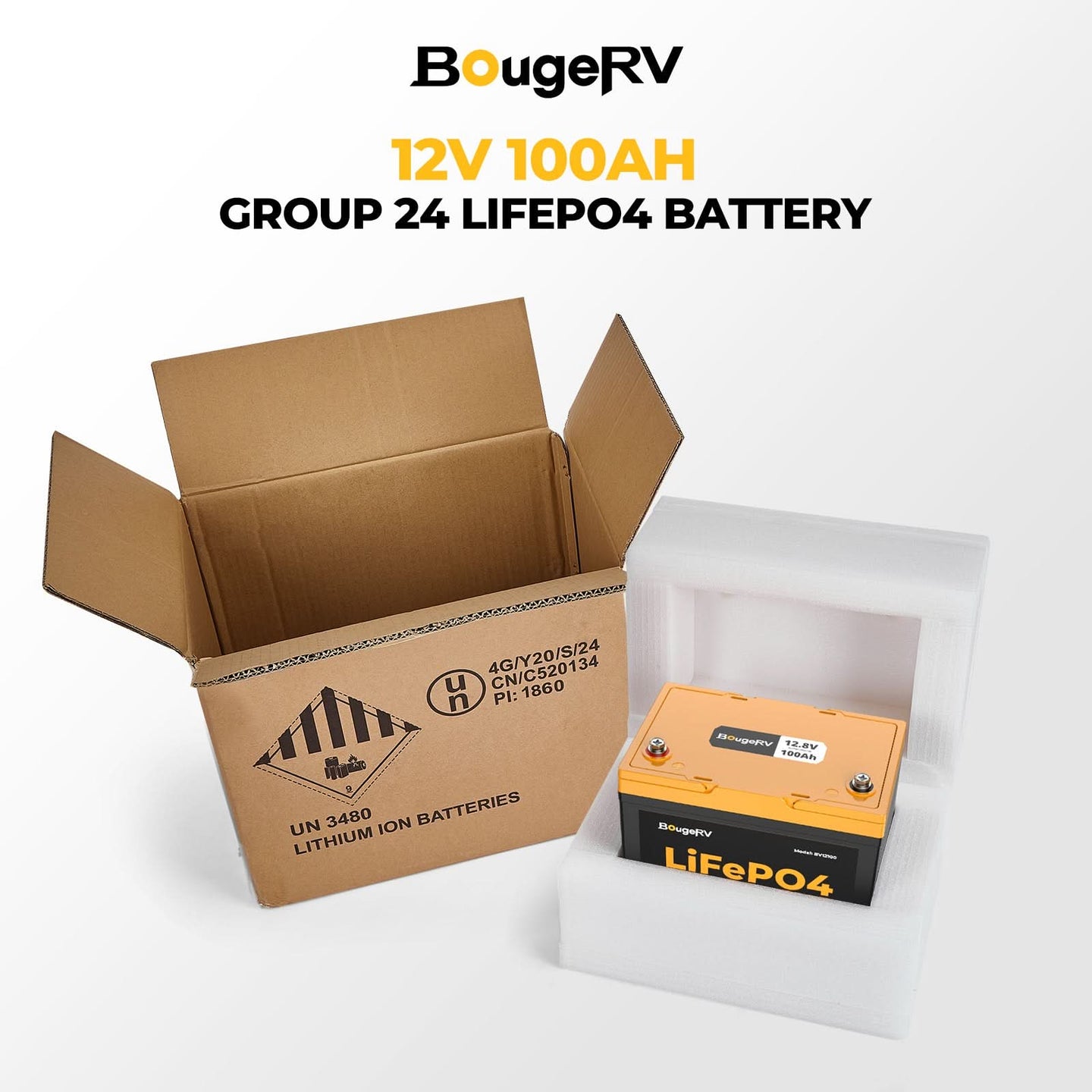

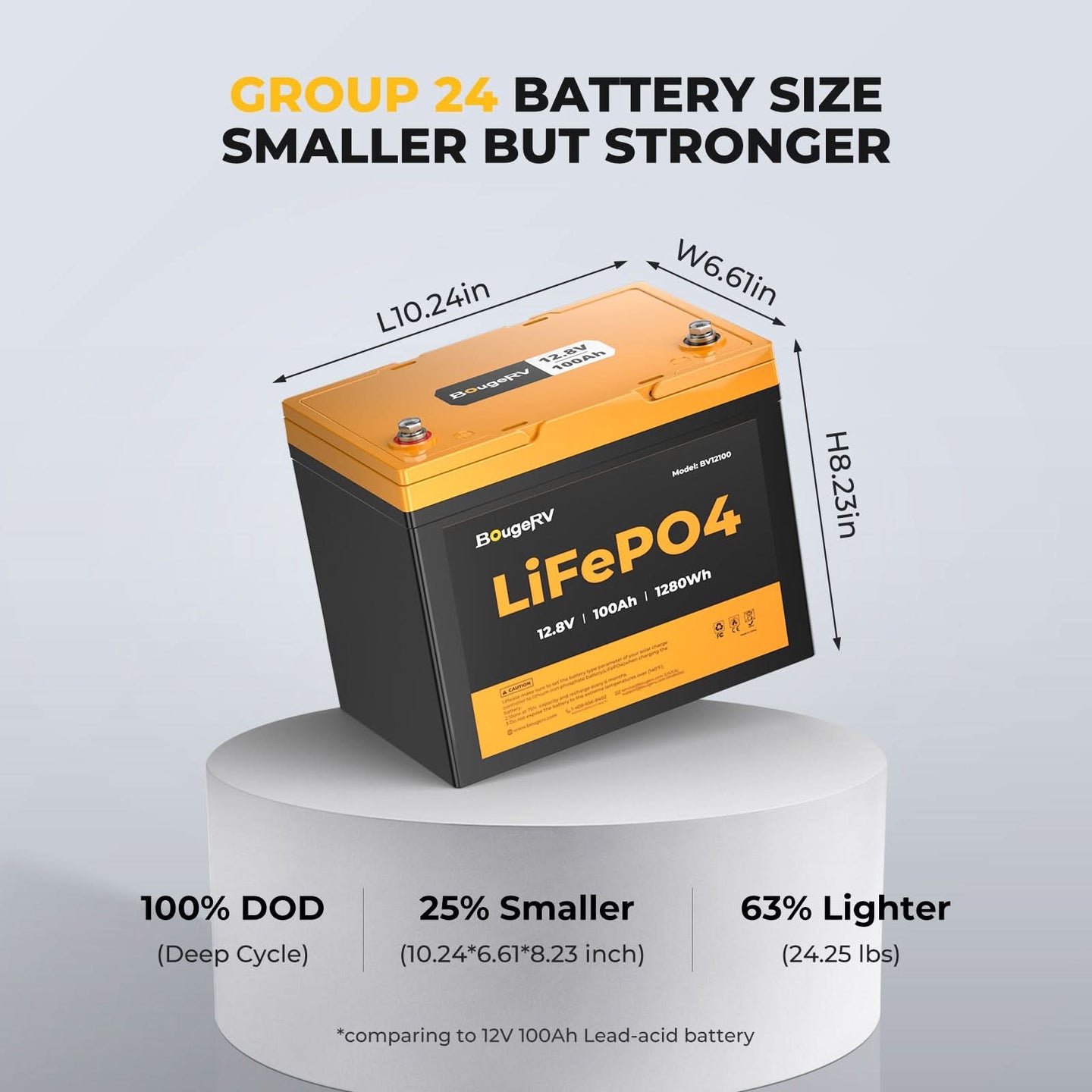

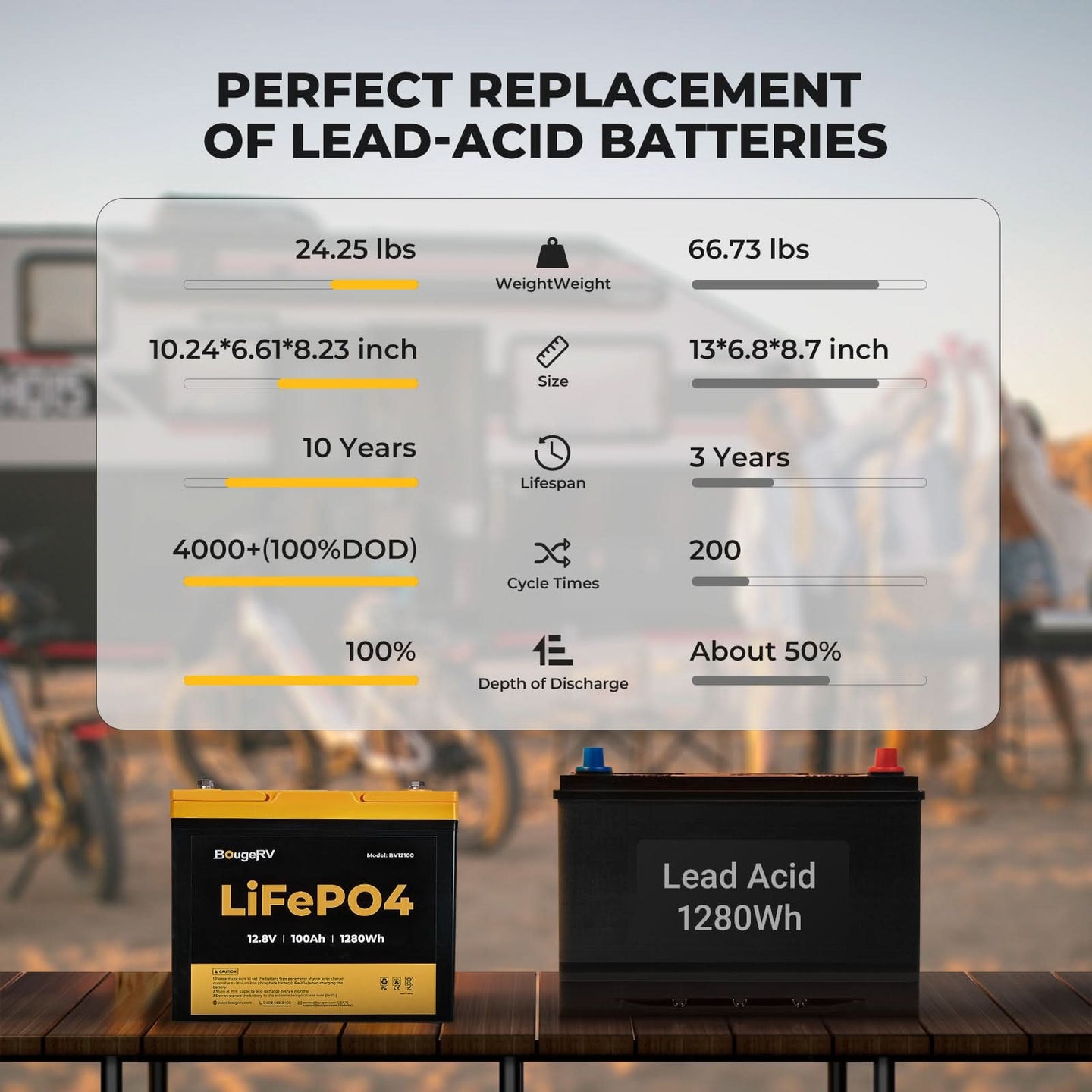

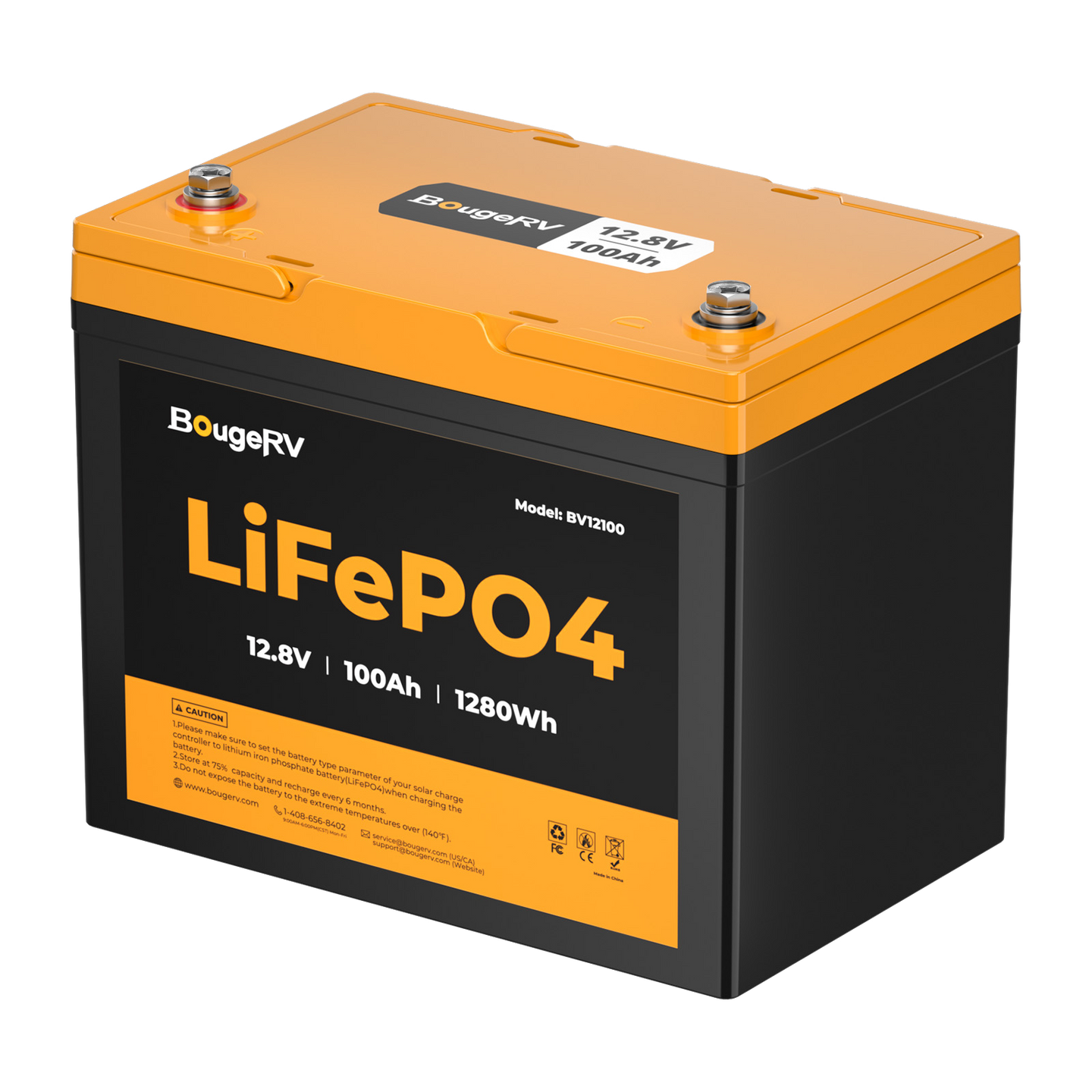

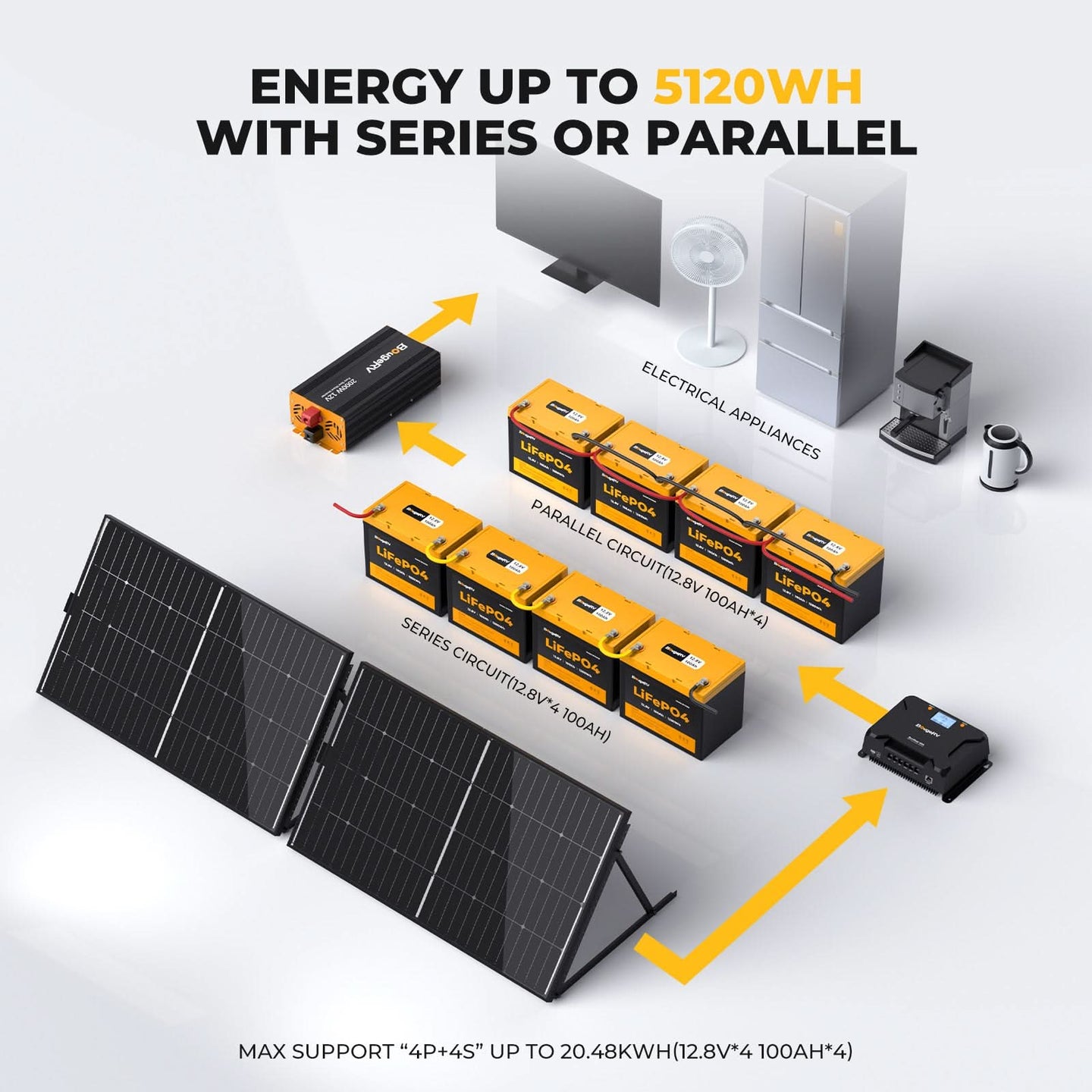

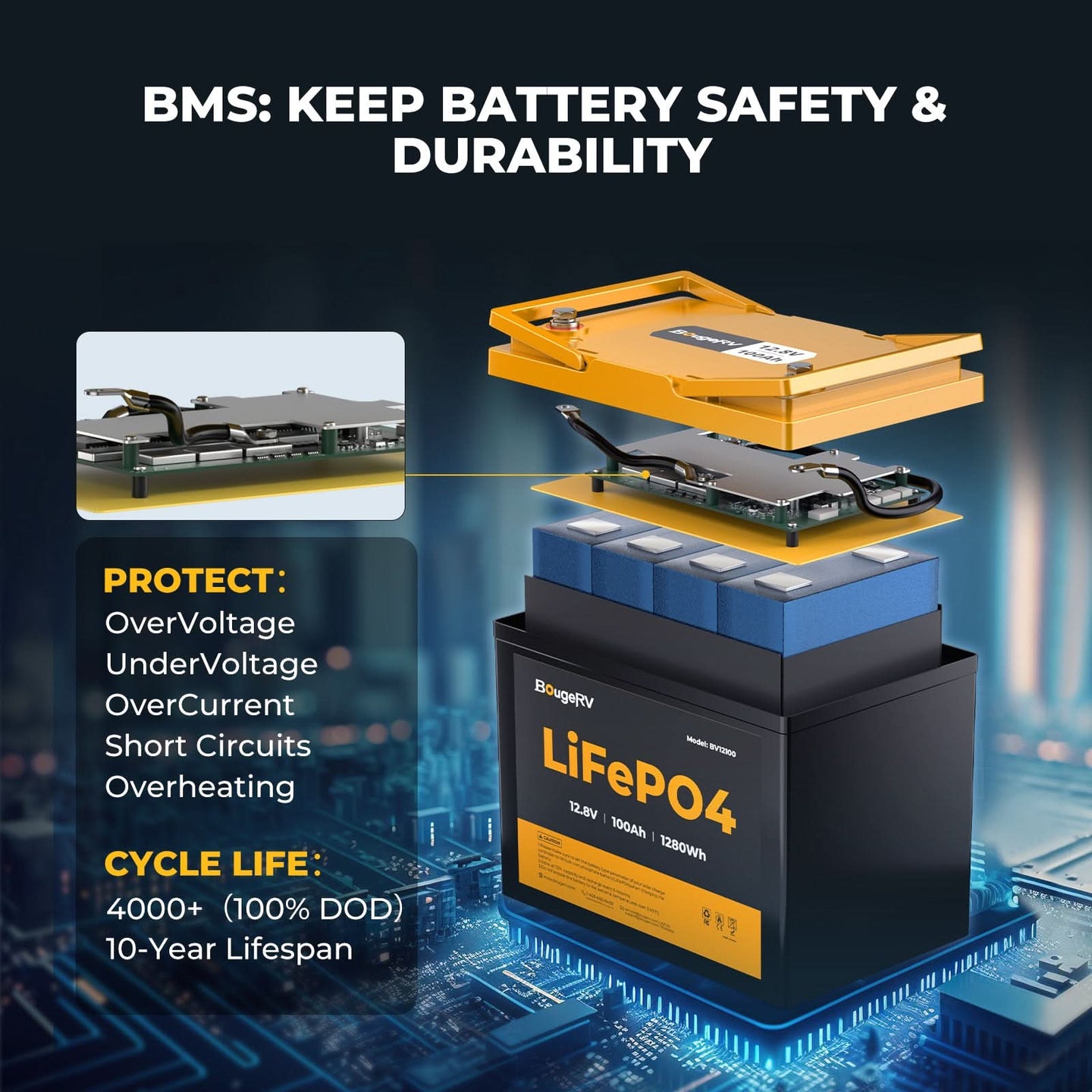

The Group 24 12V 100Ah LiFePO4 battery measures L10.24" x W6.61" x H8.23" and balances space and performance. It includes low-temperature charging protection, reducing or turning off current input below 32°F and resuming at 35.6°F. It provides 4,000-15,000 recharge cycles and over 10 years of lifespan under ideal conditions. An upgraded BMS provides overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection. At 24.25 lbs, it is lighter than a comparable 66 lb lead-acid battery and supports full charge and discharge (100% DOD). The system supports up to 16 batteries in a series-parallel pack (4S4P) for a maximum capacity of 20,480 Wh, and can self-recover from charge and discharge overloads within 32 seconds without disconnecting the wiring.

Specifications

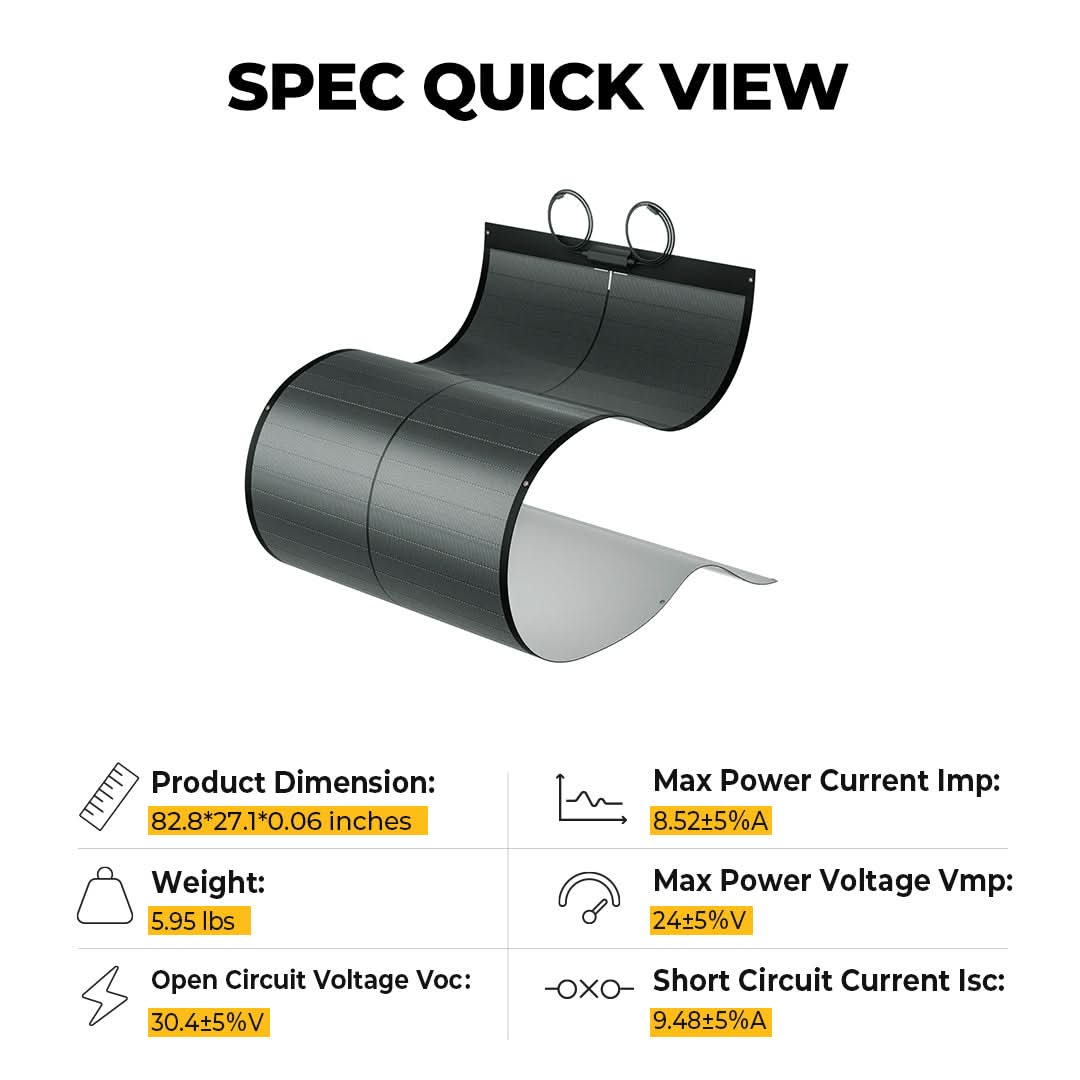

• Solar Panel (SKU ISE154): Product Type Solar Panel; Maximum Power 200±5% W; Solar Cells Efficiency 17%; Max Power Voltage 24±5% V; Max Power Current 8.52±5% A; Open Circuit Voltage 30.4±5% V; Short Circuit Current 9.48±5% A; Max System Voltage 1000V DC; Operating Temperature Limits -40°F to +185°F; Series Fuse Rating 10A; Temperature Coefficient Pmax -0.38%/°C; Temperature Coefficient Voc -0.28%/°C; Temperature Coefficient Isc -0.008%/°C; Dimensions 82.8x27.1x0.06 inches; Weight 5.95 lbs; Warranty 10 Years; Performance Warranty 25 years

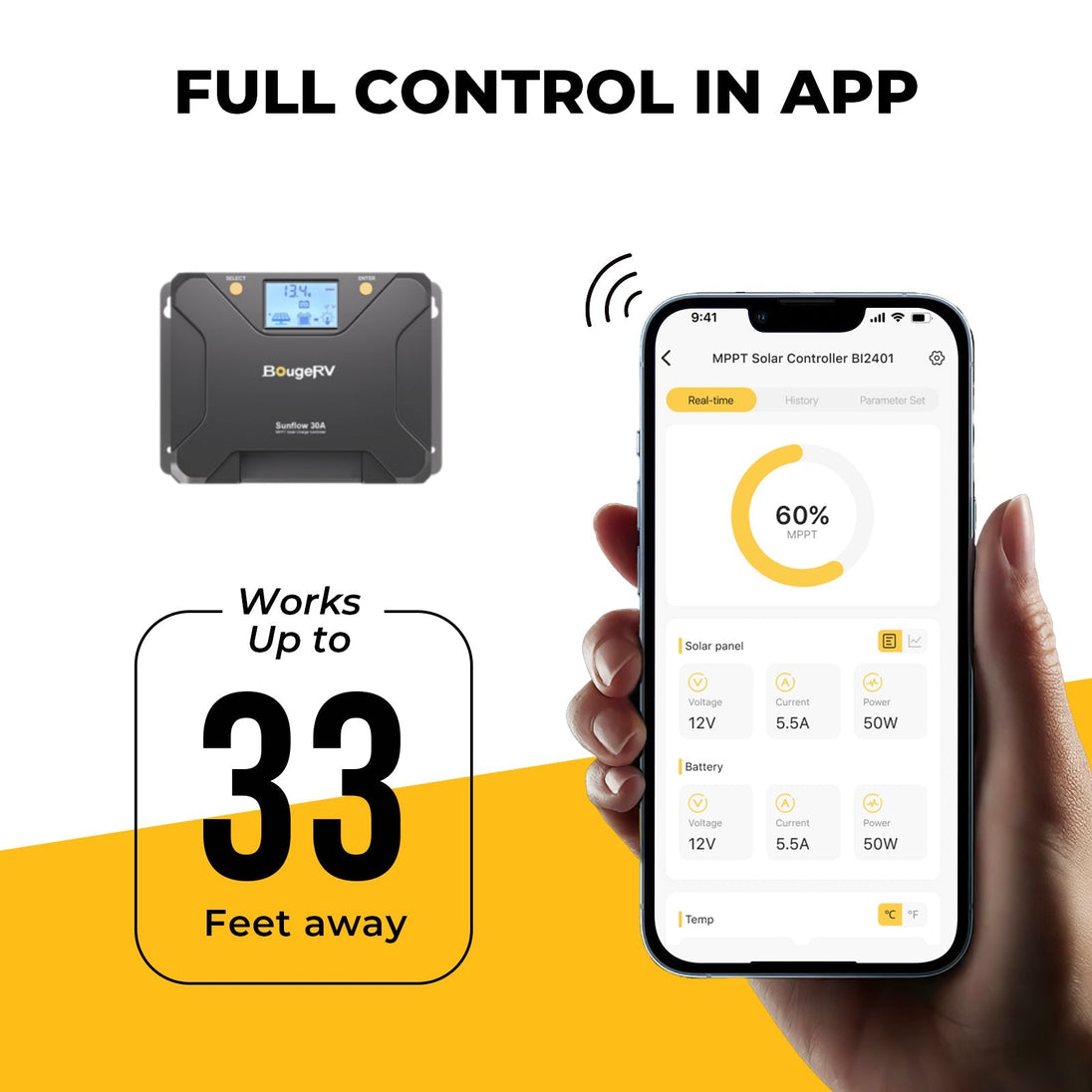

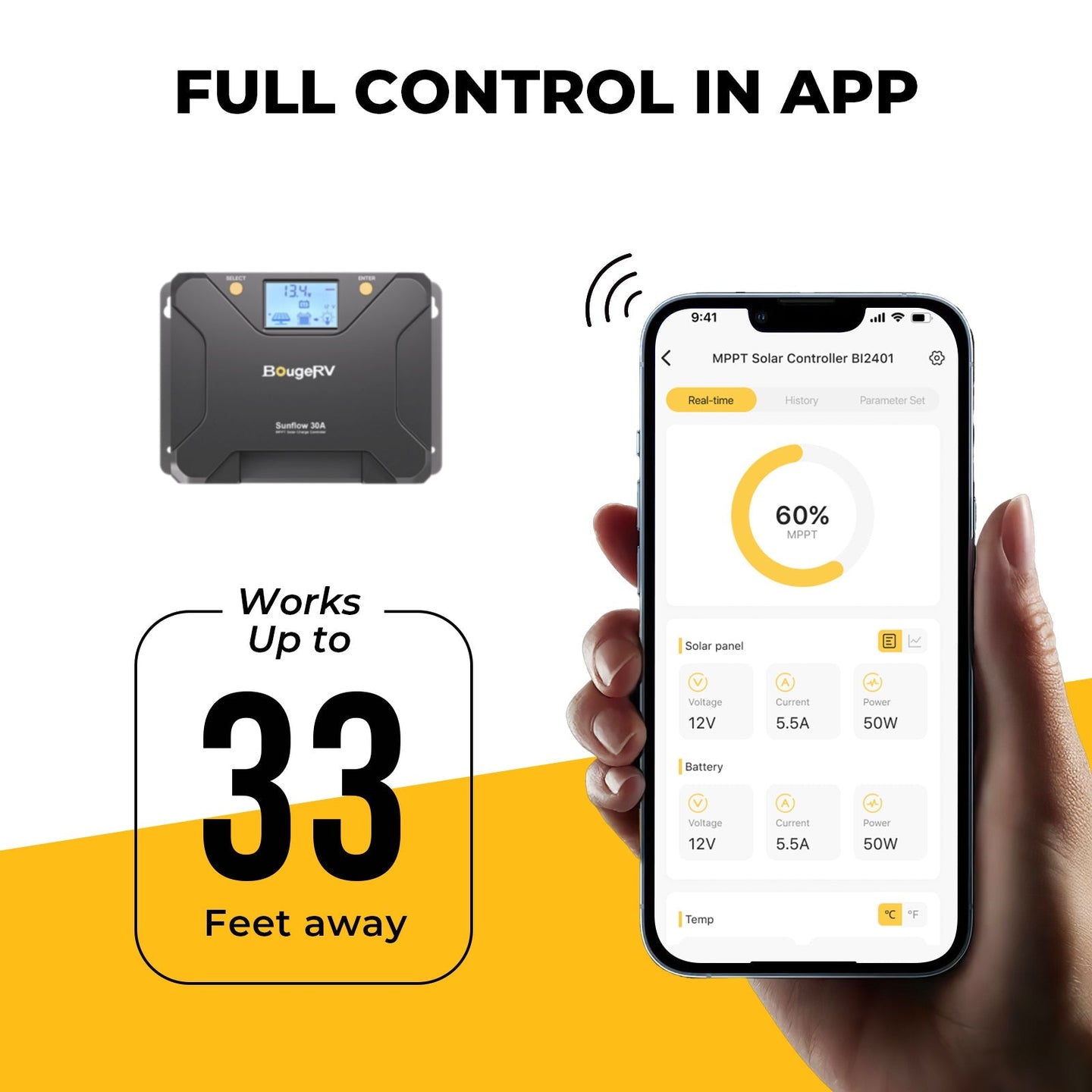

• MPPT Charge Controller (SKU ISE217): System Voltage 12V/24V; Rated Charging Current 30 Amp; Maximum PV Input Voltage 100V (95V protection, 90V recovery); Maximum Input of PV System 450W/12V, 900W/24V; Rated Load Current 20 Amp; Charge Current Adjust Range 0-30 Amp; Battery Operate Voltage Range 8V to 32V; No Load Loss ≤10mA; Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined; Grounding Type Common Negative; Operating Temperature Range -31°F to 149°F; Protection Grade IP34; Built-in Bluetooth; Data Storage: last 200 days; Dimension 7.28L x 5.23W x 2.95H inches; Weight 2.37 lbs; Product Type Solar Charge Controller; Product Warranty 18-month
• Inverter (SKU ISE253): Rated Output Power 2000W; Peak power 4000W (1s); Output voltage 110VAC/120VAC (default); Output frequency 50/60 Hz; Rated input voltage 12VDC; Input voltage range 10V-15.5VDC; Output waveform Pure sine wave; Max output efficiency >90%; Full Load Efficiency >86%; Battery low voltage alarm 10.5VDC (±0.3V); Over-discharge voltage 10VDC (±0.3V); Overvoltage 15.5VDC (±0.3V); Operating ambient temperature -40°F to 185°F; Storage temperature -40°F to 176°F; Noise ≤60dB; Communication Port RS485 + built-in Bluetooth; Fan start-up temp ≥113°F/≥50% load; USB port 18W x1 (5V-3A, 9V-2A, 12V-1.5A); Output harmonic component (THD) <4%; Over-temperature protection recovery ≤158°F; No-load Loss <0.7A; Over temperature protect ≥176°F; Product size 14.79x6.65x3.98 in; Weight 8.6 lb
• Battery (SKU ISE212N): Nominal Voltage 12.8V; Nominal Capacity 100Ah; Energy 1280Wh; Charge Voltage 14.4-14.6V; Standard charge 20A (0.2C); Maximum charge 100A (1C); Maximum Continuous Charge Current 100A (25°C/77°F); Maximum Continuous Discharge Current 100A (1C); Maximum Discharge Current 330A (2.5s); Over-Charging Protection Voltage 14.6V; Over-Charging Recovery Voltage 14.0V; Over-Discharging Protection Voltage 8.8V; Over-Discharging Protection Recovery Voltage 10.4V; Charge Temperature Range 32°F-149°F; Discharge Temperature Range -4°F-167°F; Cycle Life 4000 times (25°C, 0.2C, 100% DOD); Low Temperature Charging Protection at 32°F, resumes at 35.6°F; Maximum Series Voltage 48V (4S); Maximum Parallel Current 400Ah (4P); Charge Method CC/CV; Dimension L10.24 x W6.61 x H8.23 in; Weight 24.25 lbs; Protection Rating IP65; Product Warranty 5 Years

Warranty

Solar panel: 10-year warranty and 25-year performance warranty. Charge controller: 18-month product warranty. Inverter: 18-month tech support from date of purchase. Battery: 5-year product warranty.
