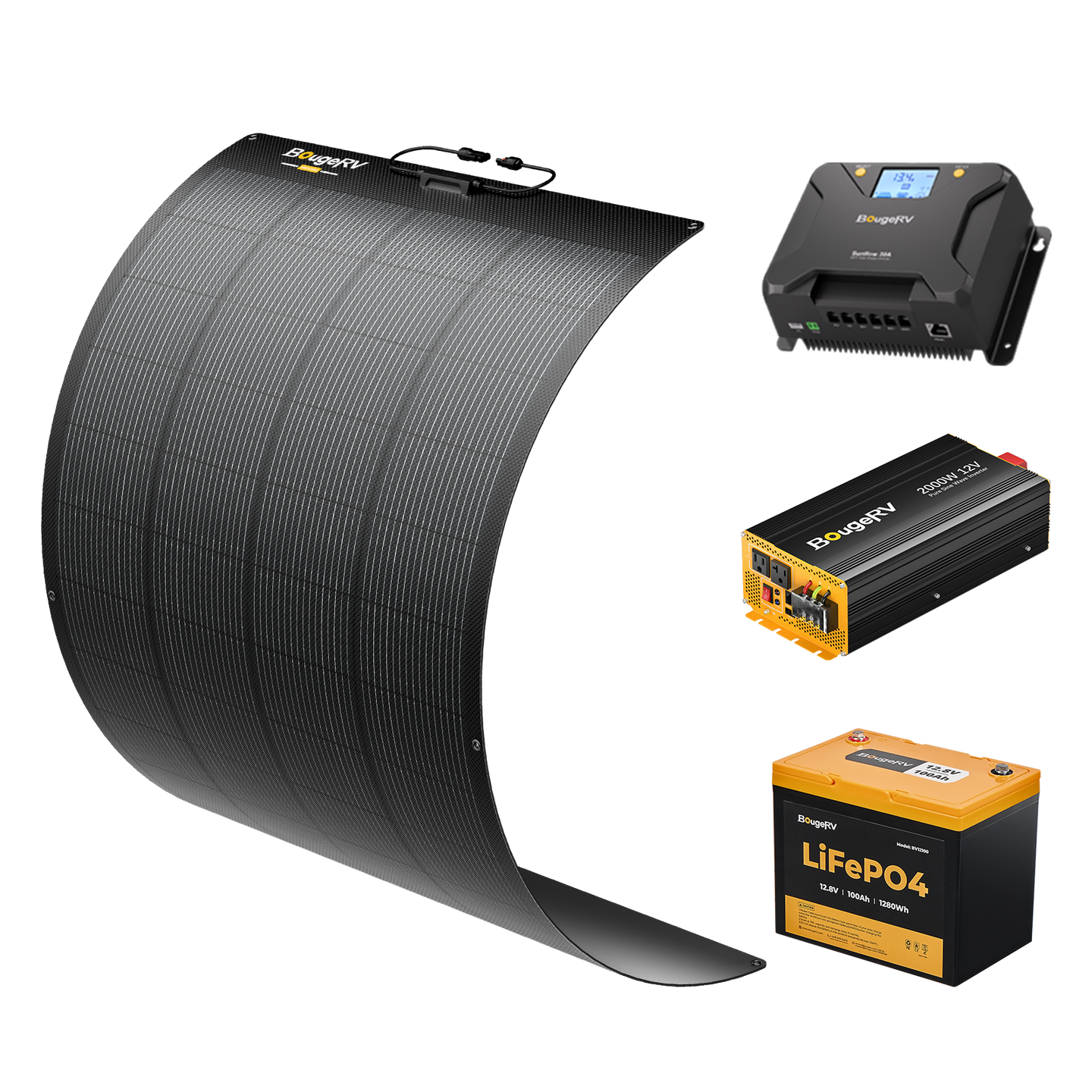

The BougeRV 12V 200W Arch2.0 Flexible Solar System Kit is a complete off-grid power setup built around the Arch 2.0 200 Watt N-Type fiberglass curved solar panel. The kit pairs the panel with a Sunflow 30A MPPT solar charge controller, a 12V 100Ah Group 24 LiFePO4 battery, and a 1000W 12V pure sine wave inverter with Bluetooth.

Together, these four components form a simple, complete solar power system that captures sunlight, stores energy, and delivers stable AC output for onboard devices and appliances.

Features

The Arch 2.0 200W N-Type fiberglass flexible solar panel offers 25% high-efficiency output, a 16BB design, a compact size, and high-heat performance. The Sunflow 30A MPPT solar charge controller provides low-temperature protection, advanced system protection, high-efficiency solar charging, smart off-grid control, and an adjustable charging current. The 12V 100Ah LiFePO4 battery includes BMS protection, low-temperature cut-off, a compact size, and an ultra-long cycle life. The 1000W pure sine wave inverter delivers full power output, clean pure sine power, a multi-protection system, a remote display, and intelligent temperature control. The kit ships with the solar panel (ISE230N), charge controller (ISE217-BK), battery (ISE212N), and inverter (SI001-BK-LYTYA1), each with its own user manual.

Specifications

  • Solar Panel (SKU: ISE230N)
  • Max Power (Pmax): 200±5%W
  • Solar Cells Efficiency: 25%
  • Max. Power Voltage Vmp: 24V±5%; Max. Power Current Imp: 8.34A±5%
  • Open Circuit Voltage Voc: 28V±5%; Short Circuit Current Isc: 8.75A±5%
  • Max. System Voltage: 1000V DC
  • Operating Temperature Limits: -40°F ~ +185°F
  • Dimensions: 53.0*30.9*0.1 inches; Weight: 8.8 lbs

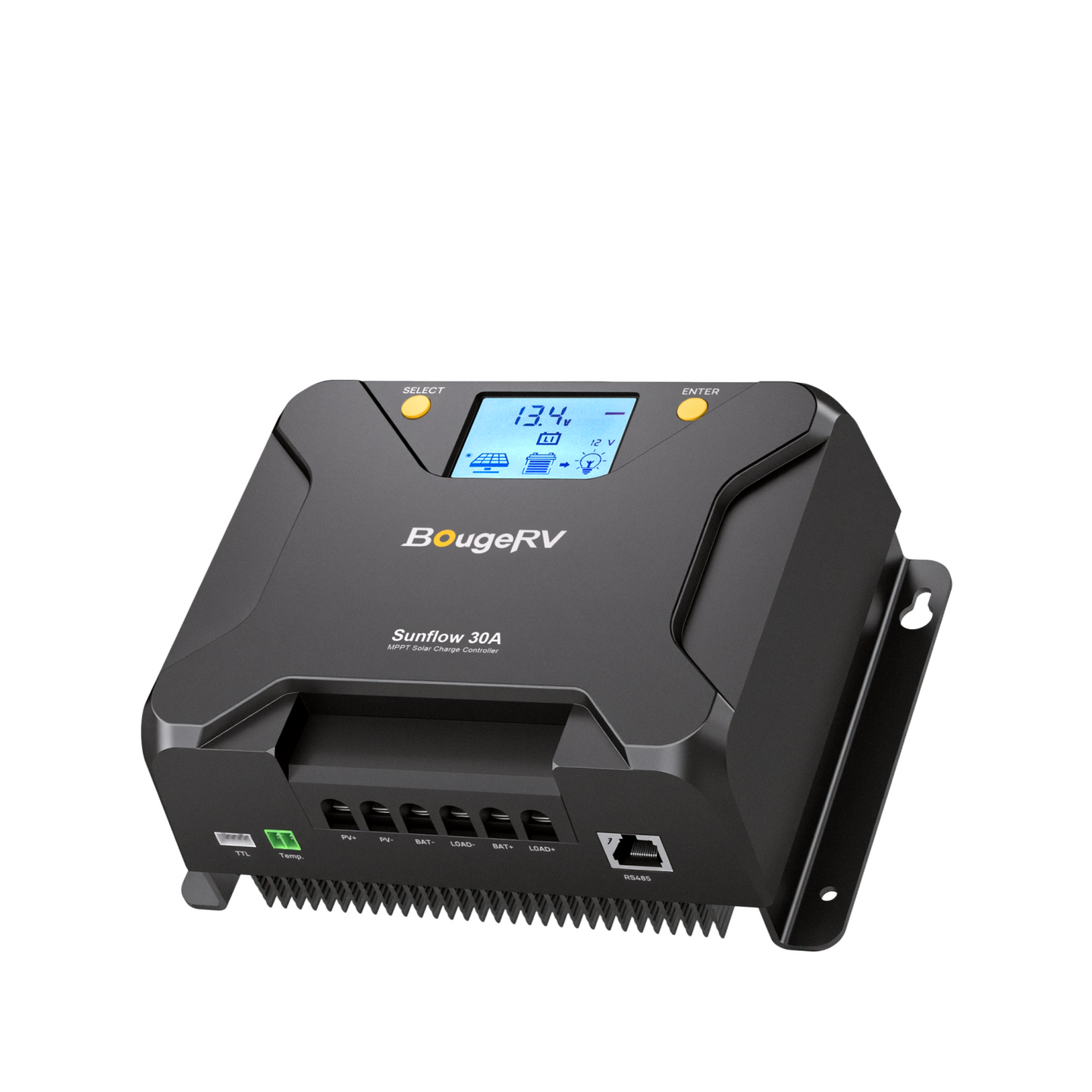

  • Solar Charge Controller (SKU: ISE217)
  • System Voltage: 12V/24V; Rated Charging Current: 30 Amp
  • Maximum PV Input Voltage: 100V (95V protection, 90V recovery)
  • Maximum Input of PV System: 450W/12V; 900W/24V
  • Rated Load Current: 20 Amp; Charge Current Adjust Range: 0 Amp to 30 Amp
  • Battery Operate Voltage Range: 8V to 32V; No Load Loss: ≤10mA
  • Battery Type: LiFePO4, SLD, GEL, FLD, AGM, User Defined
  • Grounding Type: Common Negative; Protection Grade: IP34
  • Operating Temperature Range: -31°F to 149°F (-35°C to 65°C)
  • Bluetooth Communication: Built-in Bluetooth
  • Data Storage: Saves the last 200 days of historical data
  • Dimensions: 7.28L*5.23W*2.95H inches; Weight: 2.37 lbs

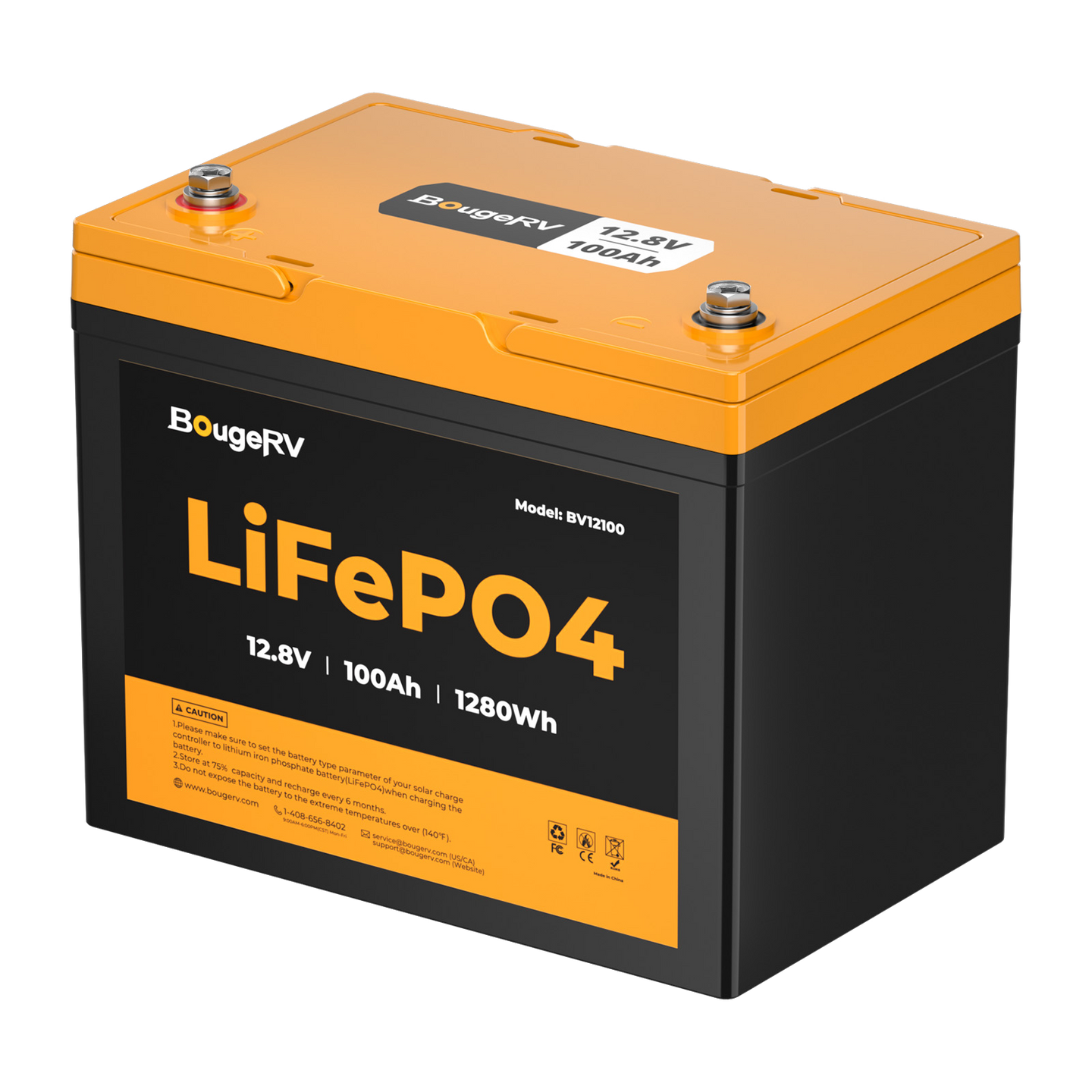

  • Battery (SKU: ISE212N)
  • Nominal Voltage: 12.8V; Nominal Capacity: 100Ah; Energy: 1280Wh
  • Charge Voltage: 14.4~14.6V; Standard Charge: 20A (0.2C, recommended)
  • Maximum Charge Current: 100A (1C); Maximum Continuous Discharge Current: 100A (1C); Maximum Discharge Current: 330A (2.5s)
  • Over-Charging Protection Voltage: 14.6V; Recovery Voltage: 14.0V
  • Over-Discharging Protection Voltage: 8.8V; Recovery Voltage: 10.4V
  • Charge Temperature Range: 0°C~65°C (32°F~149°F); Discharge Temperature Range: -20°C~75°C (-4°F~167°F)
  • Cycle Life: 4000 times (25°C, 0.2C, 100%DOD)
  • Maximum Series Voltage Of Battery Pack: 48V (4S); Maximum Parallel Current Of Battery Pack: 400Ah (4P)
  • Dimensions: L10.24*W6.61*H8.23 in; Weight: 24.25 lbs; Protection Rating: IP65

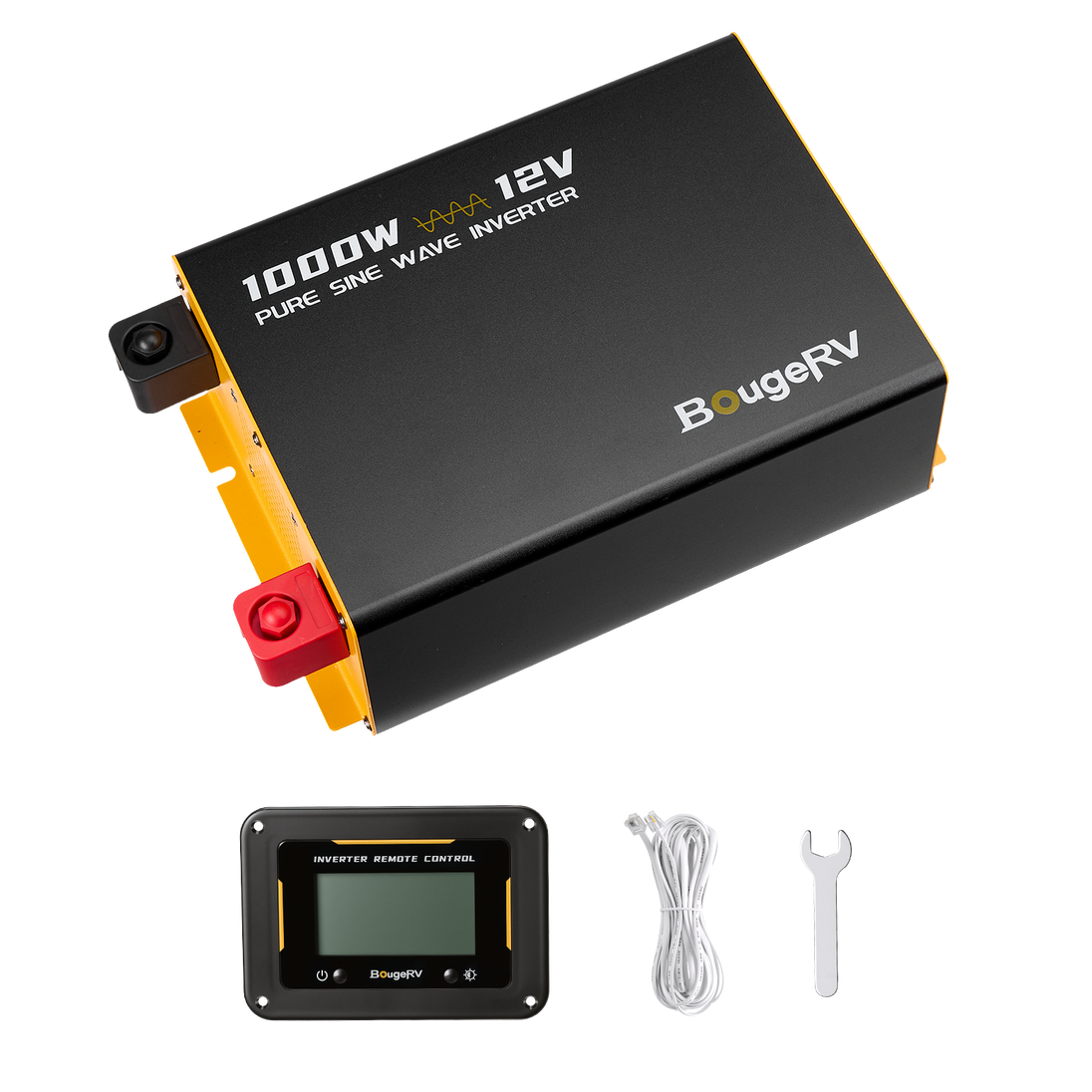

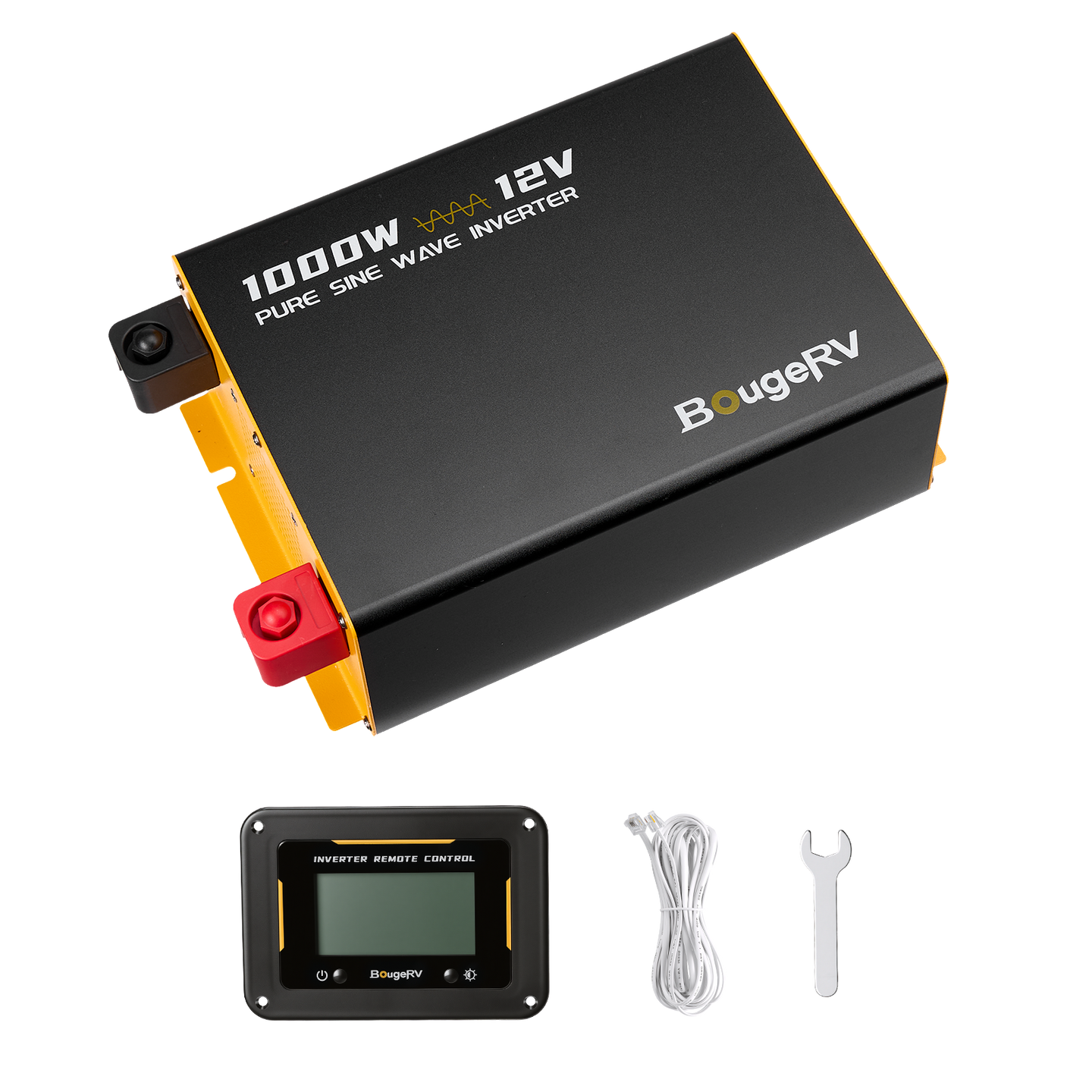

  • Inverter (SKU: SI001-BK-LYTYA1, Model: 12V 1000W)
  • Rated Power: 1000W; Overload Power: 1200W; Peak Power: 2000W (1s)
  • Output Voltage: 120VAC; Output Frequency: 50/60Hz
  • Input Voltage: 12VDC; Input Voltage Range: 10V-15.5VDC
  • Waveform: Pure Sine Wave; THD: <5%
  • Max Efficiency: >90%; Full Load Efficiency: >85%; No-load Loss: ≤0.6A
  • Protection Functions: Input over-voltage, over-discharge, overload, short-circuit, over-temperature, ground fault protection
  • Communication: RS485 / Bluetooth APP; USB Port: 18W (5V/9V/12V)
  • Operating Temperature: 14°F-104°F (-10°C-40°C); Noise: ≤60dB
  • Product Size: 13.78 x 7.4 x 3.94 in; Weight: 5.95 lbs

Warranty

Solar panel: 25 year 80% output warranty (power output) and 5 years material & workmanship warranty. Solar charge controller: 18-month product warranty. Battery: 5-year product warranty. Inverter warranty was not listed on the product page.
