Product Description

About

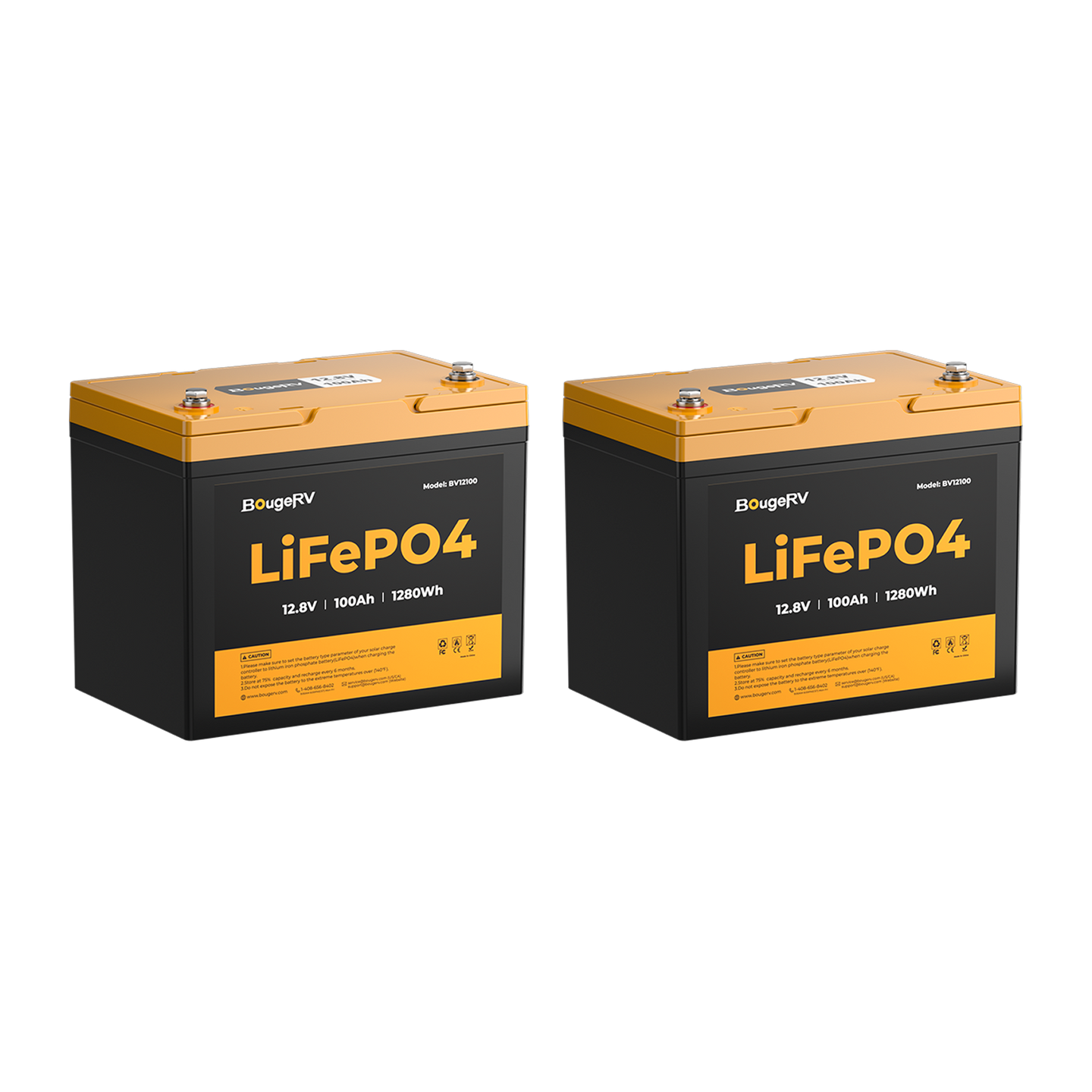

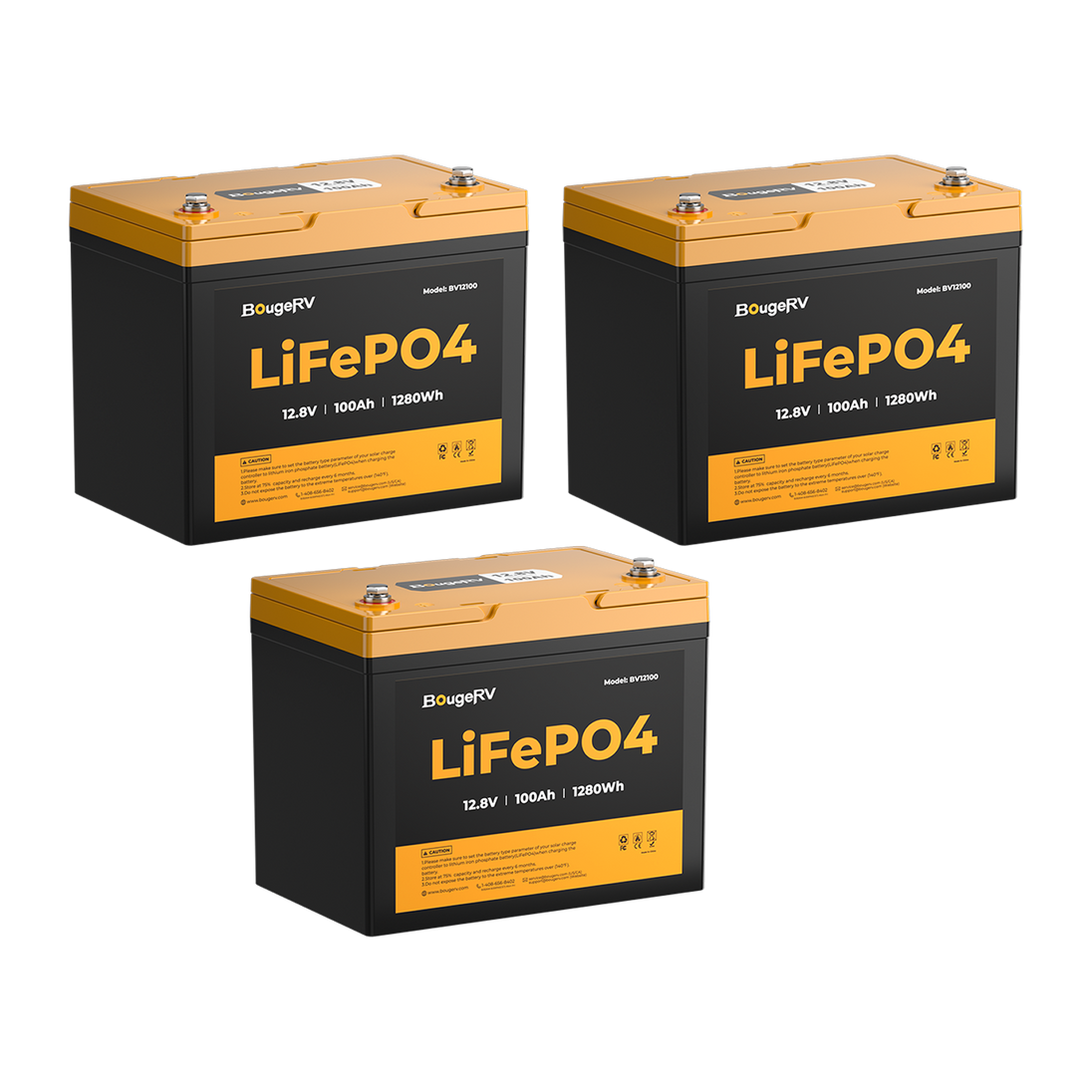

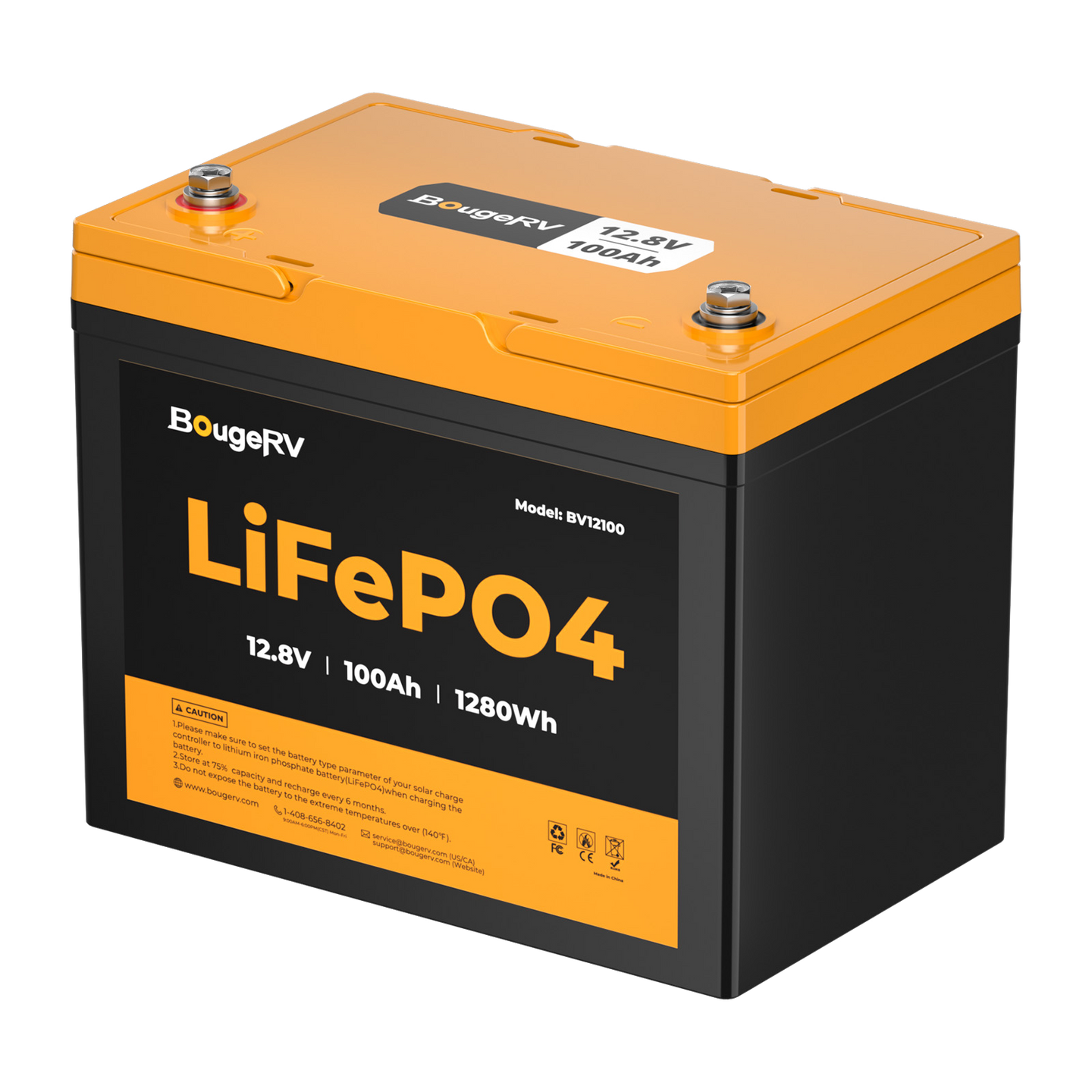

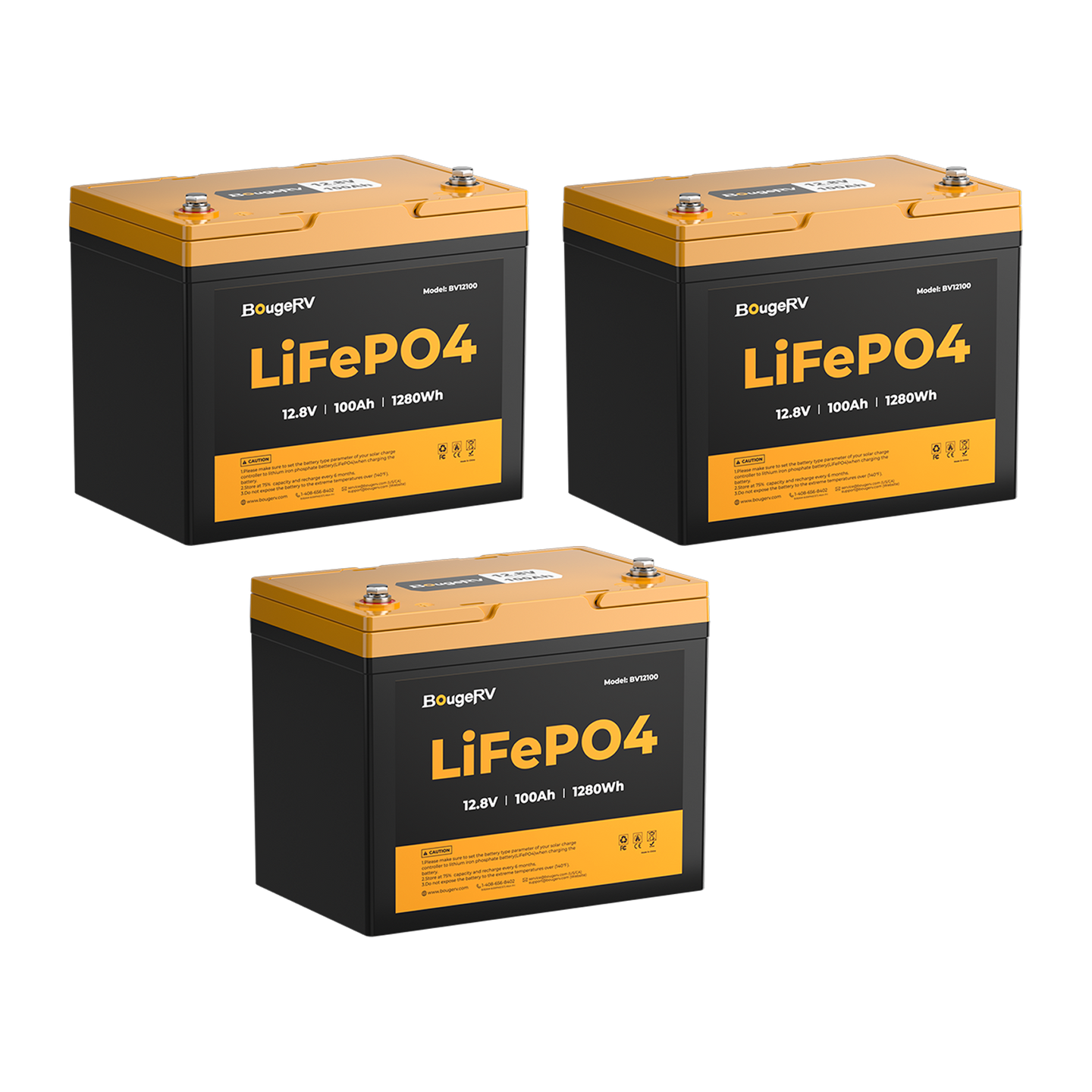

The BougeRV 12V 100Ah Group 24 Solar LiFePO4 Battery offers long-lasting, reliable power for RVs, boats, solar storage, and off-grid use. Weighing only 24.25 lbs, it is easy to transport and provides 4,000-15,000 recharge cycles with a lifespan of more than 10 years under ideal conditions.

Built to standard Group 24 dimensions (L10.24" x W6.61" x H8.23"), the battery balances space and performance, providing ample amp-hours while saving space. An upgraded BMS provides overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection, monitoring battery status to help extend battery life. The battery also includes low-temperature charging protection, reducing or turning off current input below 32°F and resuming charging once the temperature returns to 35.6°F.

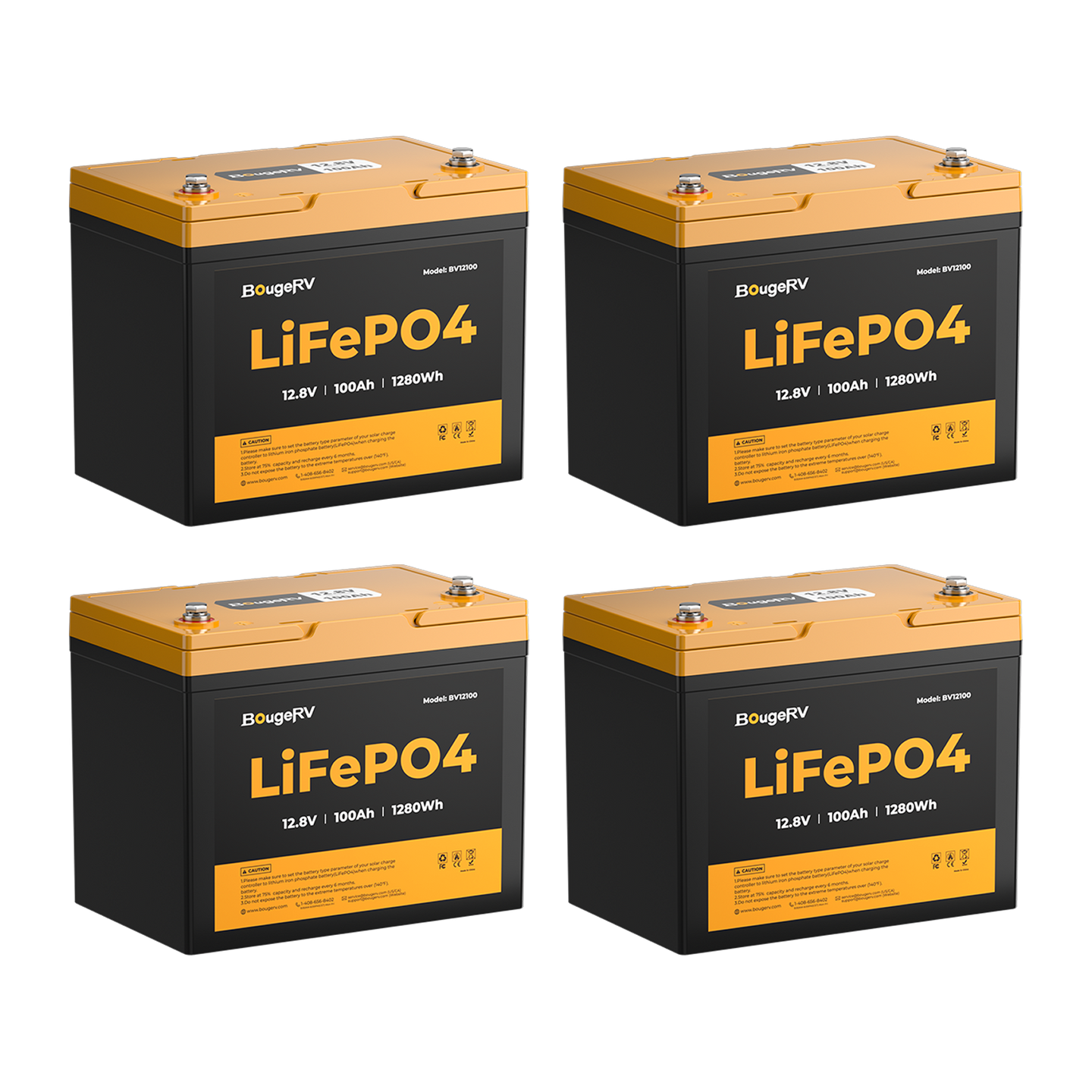

Up to 16 batteries can be connected in a series-parallel pack (4S4P) for a maximum expandable capacity of 20480Wh. The battery also features overload self-recovery, restoring itself after charge and discharge overloads in about 32 seconds without needing to disconnect the wiring.

Features

Built to standard Group 24 dimensions, the battery offers a balance of space and performance for a variety of needs. Low-temperature protection reduces or turns off current input below 32°F and resumes charging once the battery returns to 35.6°F, helping protect battery health. The battery provides 4,000-15,000 recharge cycles and a lifespan of more than 10 years under ideal conditions. An upgraded BMS provides overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection, monitoring battery status to extend battery life. At only 24.25 lbs, the battery is lighter than a 66 lb lead-acid battery of similar use, with a charge cycle count of 4,000-15,000 compared to 200-500 for lead-acid batteries, and supports full charge and discharge (100% DOD). Up to 16 batteries can be connected in a series-parallel pack (4S4P) for a maximum capacity of up to 20480Wh. The battery can self-recover after charge and discharge overloads without disconnecting the wiring, with the recovery process taking about 32 seconds.

Specifications

  • SKU: ISE212N
  • Nominal Voltage: 12.8V
  • Nominal Capacity: 100Ah
  • Energy: 1280Wh
  • Charge Voltage: 14.4~14.6V
  • Standard charge: 20A (0.2C, recommended charge current)
  • Maximum charge: 100A (1C)
  • Maximum Continuous Charge Current: 100A (25°C, 77°F)
  • Maximum Continuous Discharge Current: 100A (1C)
  • Maximum Discharge Current: 330A (2.5s)
  • Over-Charging Protection Voltage: 14.6V
  • Over-Charging Recovery Voltage: 14.0V
  • Over-Discharging Protection Voltage: 8.8V
  • Over-Discharging Protection Recovery Voltage: 10.4V
  • Charge Temperature Range: 0°C~65°C (32°F~149°F)
  • Discharge Temperature Range: -20°C~75°C (-4°F~167°F)
  • Cycle Life: 4000 times (25°C, 0.2C, 100% DOD)
  • Maximum Series Voltage Of Battery Pack: 48V (4S)
  • Maximum Parallel Current Of Battery Pack: 400Ah (4P)
  • Charge Method: CC/CV
  • Item Dimension: L10.24 x W6.61 x H8.23 in
  • Item Weight: 24.25 lbs
  • Protection Rating: IP65

Warranty

Product Warranty: 5 Years
